How to Select a Reactor Agitator? This Practical Guide Helps You Avoid 90% of the Pitfalls!

In industries such as chemical, pharmaceutical, and food processing, the reactor agitator is a device that may seem ordinary but is absolutely critical. Choose the right one, and production efficiency doubles while product quality remains stable; choose the wrong one, and you face not only uneven mixing and skyrocketing energy consumption but even potential safety hazards.

However, faced with the bewildering variety of agitator types on the market—propeller, turbine, paddle, anchor, helical ribbon, and so on—many engineers and technicians often find themselves at a loss. Is there a scientific yet simple method for selection? Today, we are going to explain this issue thoroughly and clearly once and for all.

A good method for selecting an agitator must satisfy two conditions simultaneously: it must produce reasonable results and be easy to use. Unfortunately, these two requirements are often difficult to reconcile.

Why? Because the agitation process involves too many factors: medium viscosity, density, solid-to-liquid ratio, agitation objective (mixing, dispersion, suspension, heat transfer, gas absorption, etc.), reactor shape, presence or absence of baffles, and so on. A change in any one of these variables can affect the final selection outcome.

Nevertheless, after long-term practice, the industry has developed a selection approach that uses medium viscosity as the core guideline. This method is simple, practical, and well worth mastering.

The viscosity of the liquid is the primary factor influencing the agitation state. Simply put, the lower the viscosity, the more easily the liquid flows, and the agitator mainly relies on generating convection and turbulence to mix. The higher the viscosity, the more "sticky" the liquid becomes, requiring the agitator to stay closer to the vessel wall and provide greater shear force.

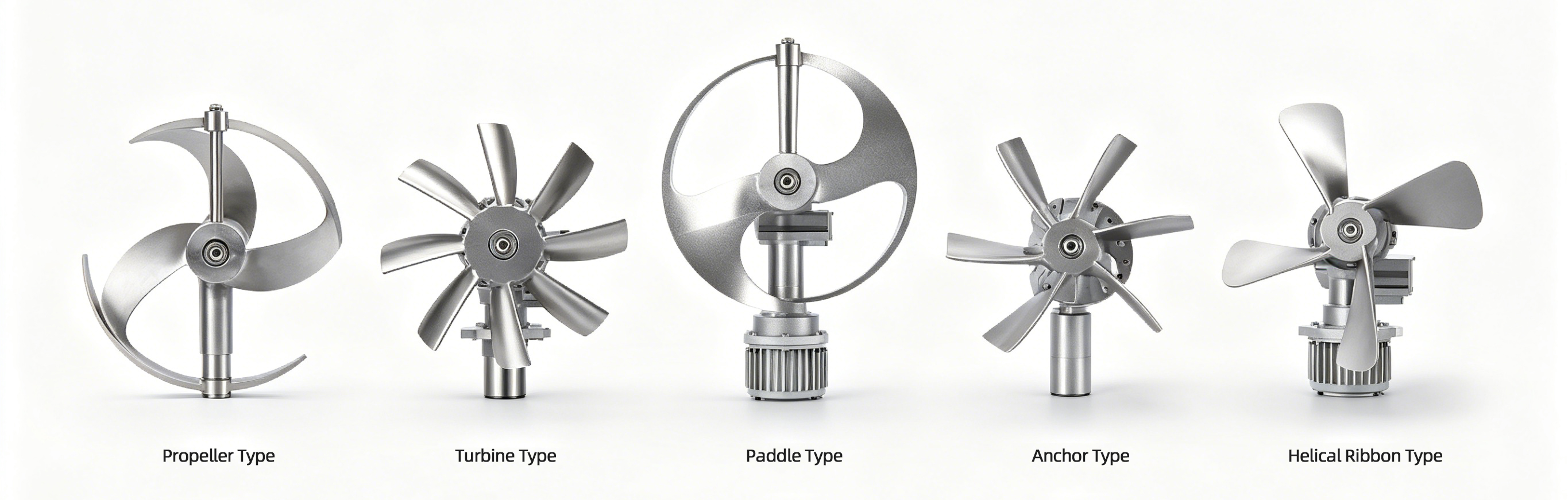

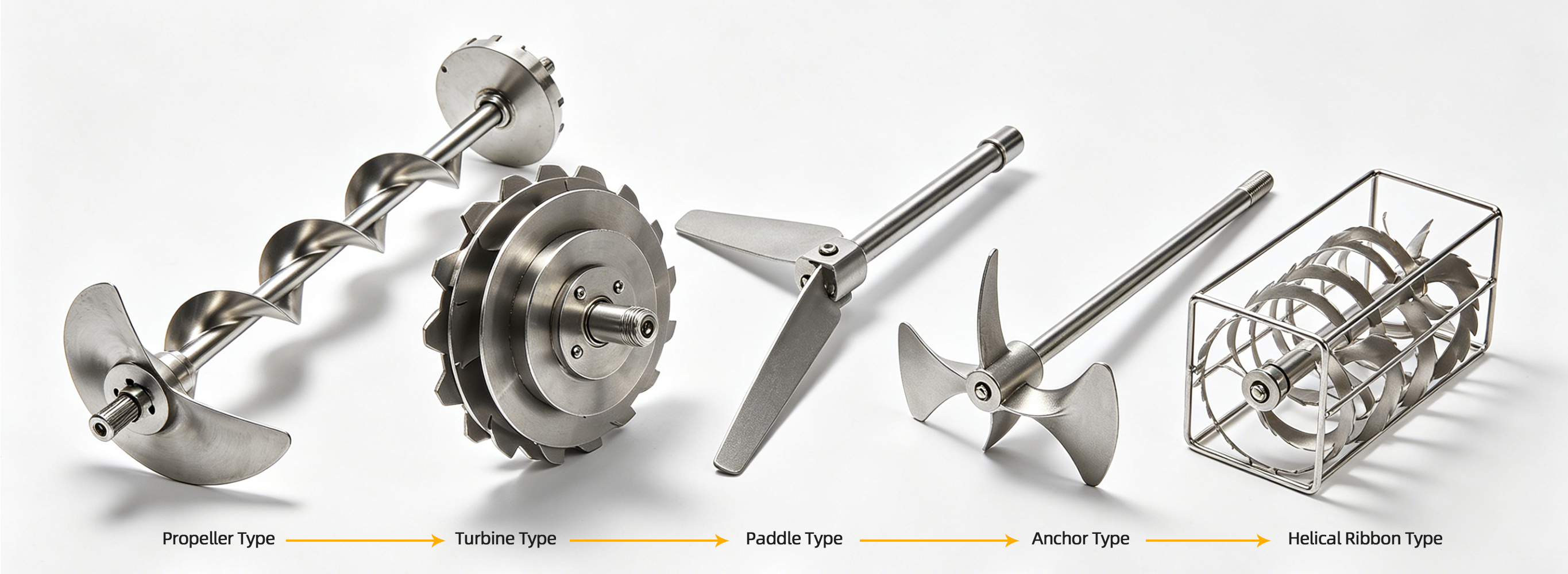

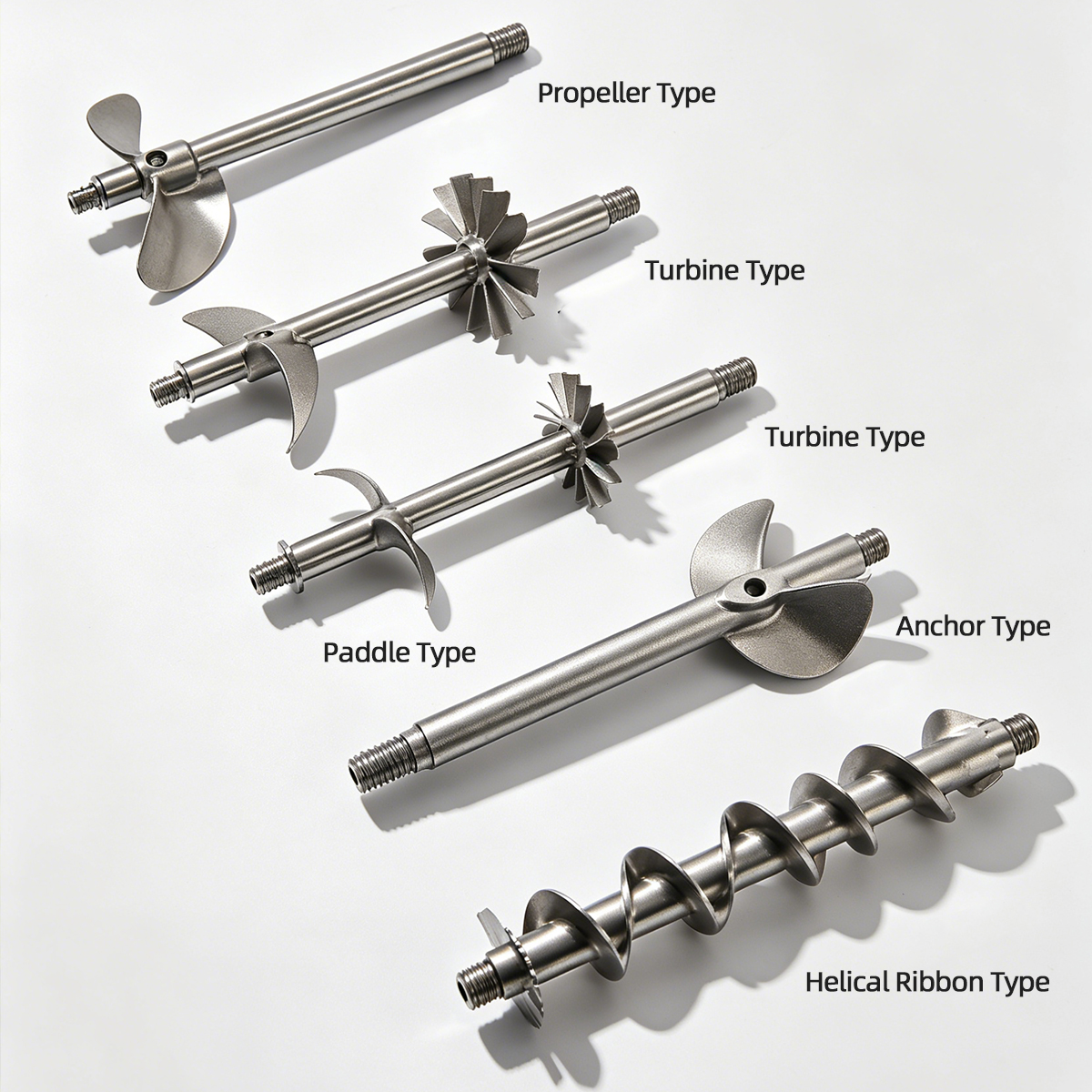

From low to high viscosity, the commonly used agitator types are as follows:

1. Low viscosity (e.g., water, light oils):The propeller agitator offers strong circulation capacity and low energy consumption, making it the first choice for rapid mixing of small volumes. For larger liquid volumes, it needs to be used with a low rotational speed.

2. Low to medium viscosity:The turbine agitator, with its powerful convective circulation capacity, turbulent diffusion, and shear force, has become the most widely used "all-rounder."

3. Medium to high viscosity:The paddle agitator has a simple structure. When used with baffles, it improves the flow pattern and offers high cost-effectiveness.

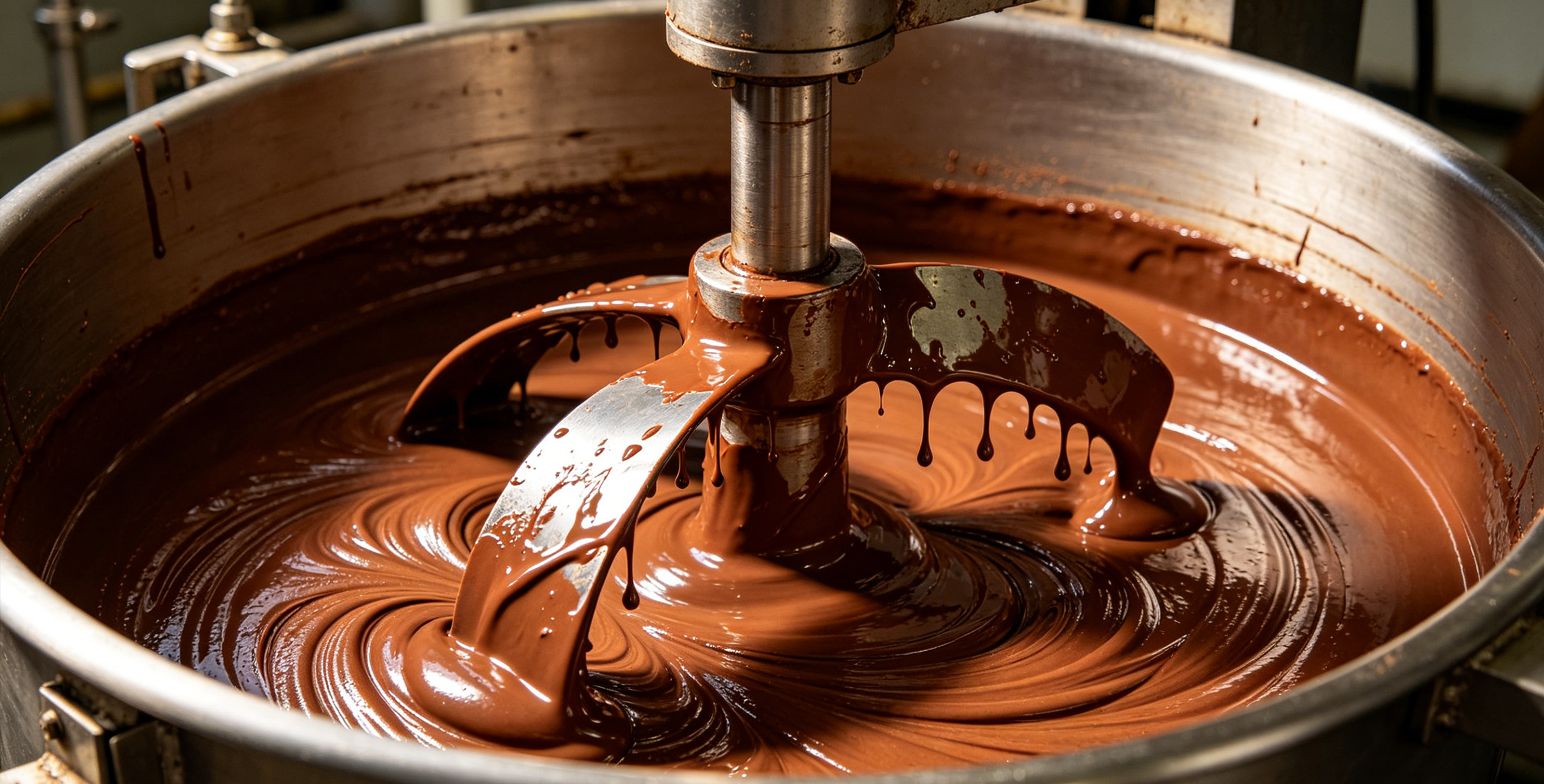

4. High viscosity (e.g., resins, melts):Anchor and gate agitators can scrape the vessel wall to prevent material coking. The helical ribbon agitator can force material to circulate vertically, making it suitable for very high viscosity systems.

It should be noted that this sequence is not absolute. The application ranges of different impeller types overlap. For example, paddle agitators are also frequently used in the low-viscosity range. The selection should be made flexibly based on the actual operating conditions.

Based on the flow state generated by the agitator, they can be divided into two main categories:

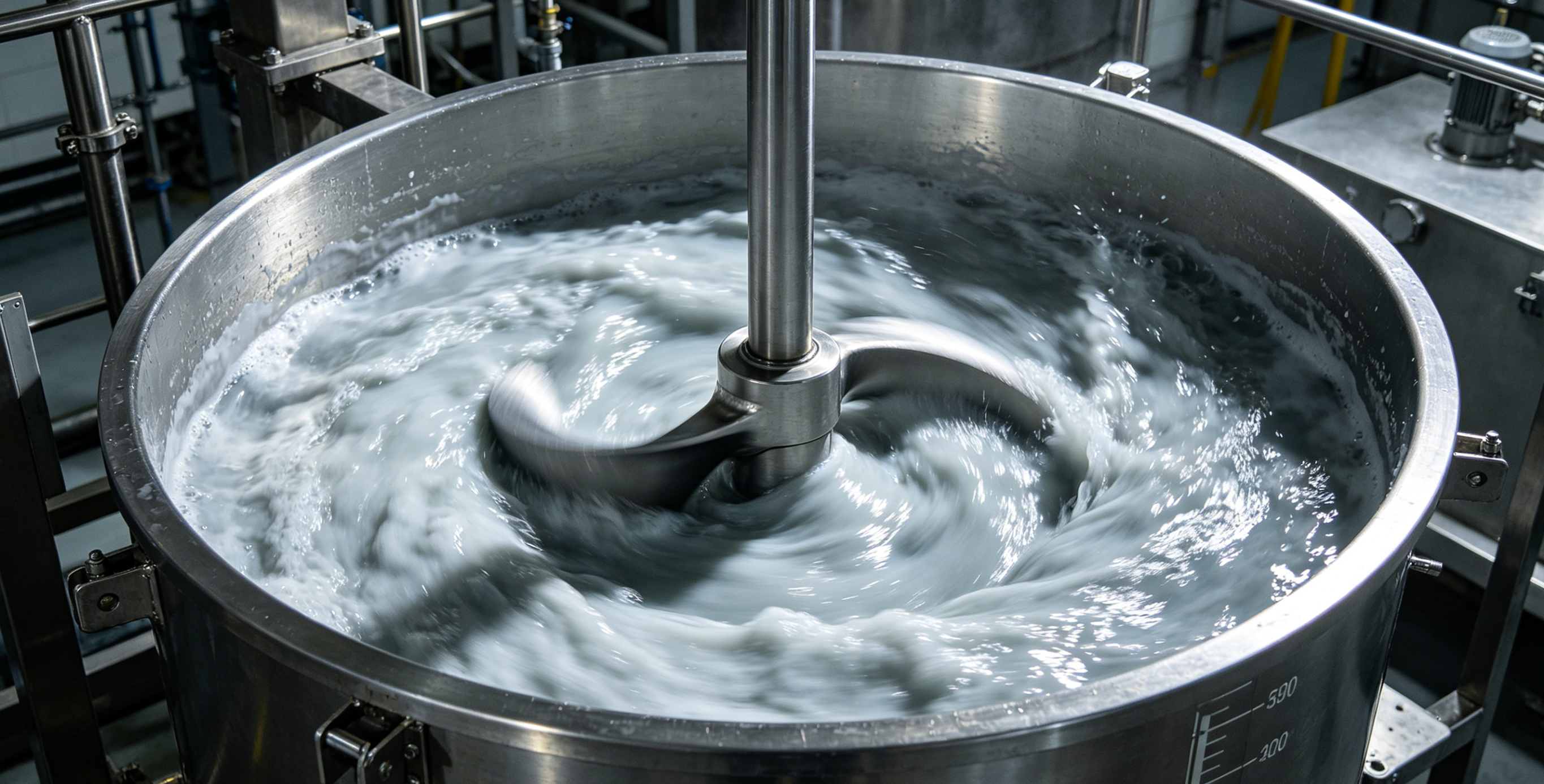

High-speed type (turbulent flow state):High rotational speed and strong shear force. Suitable for dispersing, emulsifying, and gas-liquid mixing of low to medium viscosity materials. Representatives include propeller and turbine agitators.

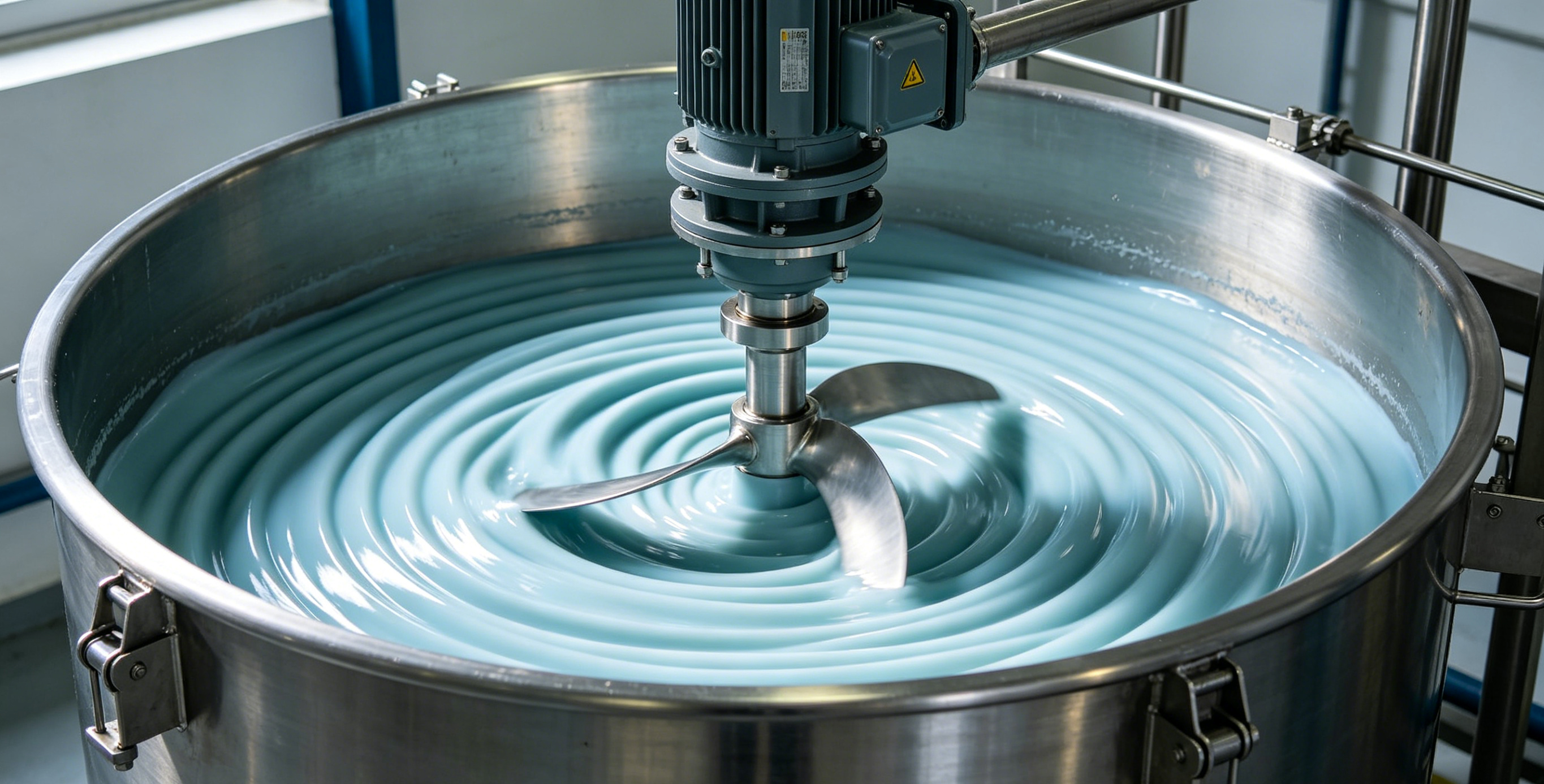

Low-speed type (laminar flow state):Low rotational speed, primarily relying on "pushing/squeezing" and "scraping." Suitable for mixing and heat transfer of high-viscosity materials. Representatives include anchor and helical ribbon agitators.

Different agitation objectives require completely different flow states. For example, if you need to uniformly disperse pigment powder into a coating, you will need the strong shear generated by high-speed turbulent flow. However, if you only need to mix two high-viscosity resins evenly, low-speed laminar flow is sufficient.

Below we provide specific selection recommendations based on the most common agitation objectives—all practical and to the point.

This is the simplest agitation task, only becoming challenging when the volume is very large and extremely short mixing times are required. The propeller agitator offers strong circulation capacity and low energy consumption, making it the most economical choice. Although the turbine agitator provides higher shear force, it consumes more power and its circulation capacity in large-volume mixing is inferior to that of the propeller—using a turbine in this case would be like "killing a chicken with a cleaver."

Dispersion requires the agitator to provide high shear force to break one liquid into small droplets or to crush solid agglomerates. The flatblade disk turbine is the best choice—it delivers the strongest shear force, and its performance is even better when used with baffles. Propeller and paddle agitators have weaker shear force and can only be used as a rough substitute when the amount of material to disperse is very small. Paddle agitators are generally not used for dispersion operations.

Solid suspension requires the agitator to generate sufficient axial flow to prevent particles from settling at the bottom. The open turbine (especially with bent blades) performs best. Why? Because it has no central disk that would hinder liquid mixing above and below the impeller. It has good discharge capability, and the bent blades are less prone to wear. The propeller agitator has a narrower application range and is not suitable when the density difference between solid and liquid is large or when the solid concentration exceeds 50%. When using baffles, care must be taken to avoid accumulation of solid particles in the baffle corners; baffles can be omitted at low solid concentrations.

Gas absorption requires the agitator to break bubbles into small sizes and keep them stable. The disk turbine is specifically designed for this task—its disk allows a portion of gas to be temporarily retained beneath it, resulting in smoother gas dispersion, an advantage that open turbines do not have. Paddle and propeller agitators are generally unsuitable for gas absorption unless the gas flow rate is very low and the dispersion requirement is not demanding.

Crystallization is one of the most difficult processes to control, especially when uniform crystal size is required. Small-diameter, high-speed agitators (e.g., turbines) tend to produce fine crystals; large-diameter, low-speed agitators (e.g., paddles) favor the formation of large crystals. The selection must be made carefully based on the target crystal size, while also controlling supersaturation.

Summary:There is no universal impeller type; each agitator has its own "comfort zone." It is recommended to first clarify the agitation objective, then combine it with the viscosity range to perform an initial screening from among propeller, turbine, paddle, anchor, and helical ribbon agitators. Finally, validate the selection through lab-scale tests or CFD simulation.

In addition to classification by viscosity and application, we can also understand the characteristics of various agitators from the following three perspectives, which will make selection clearer.

1. Dimension 1: Impeller Blade Geometry

• Flat blade:Provides the strongest shear force, suitable for dispersion and gas absorption.

• Pitched (bent) blade:Generates both radial flow and axial flow, offering good overall performance; suitable for solid suspension and dissolution.

• Curved blade:Has good discharge capability and low wear; suitable for solid suspension.

• Helical surface blade:Propeller, screw, and helical ribbon agitators fall into this category; suitable for circulation or high-viscosity mixing.

2. Dimension 2: Application (by Viscosity)

• For low-viscosity fluids:Propeller, paddle, open turbine, disk turbine, Brumagin type, etc.

• For high-viscosity fluids:Anchor, gate, serrated disk, screw propeller, helical ribbon.

3. Dimension 3: Fluid Flow Pattern

• Axial flow(fluid flows up and down along the agitator shaft): The representative is the propeller agitator, which has a long circulation path and is suitable for large-volume mixing.

• Radial flow(fluid is thrown outward from the impeller toward the vessel wall): The representative is the flat-blade disk turbine, which provides strong shear force.

• Mixed flow pattern(both axial and radial flow): The representative is the pitched-blade turbine, which offers excellent overall performance. The six-pitched-blade open turbine is suitable for dispersion, solid suspension, and dissolution, and has a very wide range of applications.

After reading all this, you might ask: Is there a single agitator that can handle all operating conditions? The answer is no. Each agitator has its own "comfort zone," and its performance will significantly deteriorate outside that range.

A practical selection approach is as follows: First, clarify your agitation objective (mixing, dispersion, suspension, absorption, or crystallization). Then, measure or estimate the working viscosity of the material. Next, refer to the corresponding relationships described above to preliminarily screen 1–2 candidate types. Finally, make your final decision by considering the vessel dimensions, speed range, and energy budget.

If conditions permit, it is advisable to validate your selection using a lab-scale test setup or computational fluid dynamics (CFD) simulation. After all, no matter how perfect the theoretical selection may be, it is never as reliable as an actual test.
