A Powerful Tool for Cost Reduction and Efficiency: How Vacuum Concentration Equipment is Fortifying the "Fundamentals" of the Beverage Industry

Fruit Juice Concentrate is the "Cornerstone" of the Beverage Industry

Fruit juice concentrate is not intended to be consumed directly. It is a thick, richly flavored syrup with a soluble solids content of 65–75 Brix (by comparison, freshly squeezed apple or orange juice has about 11–12 Brix). Due to this extremely high osmotic pressure, it is very difficult for microorganisms to thrive in the concentrate. As a result, it can be stored and transported over long distances at ambient temperatures without the need for preservatives, achieving a shelf life of 1 to 2 years. Compared to unconcentrated juice, fruit juice concentrate significantly reduces packaging, transportation, and warehousing costs.

Using fruit juice concentrate as the main raw material, a wide variety of beverages found in supermarket refrigerators can be produced. These mass-market drinks, which can be purchased for just a few dollars (or RMB), are known as "from concentrate" (FC) beverages or juices. Without a steady supply of fruit juice concentrate, most FC beverages would not last more than half a month in inventory. It is no exaggeration to say that fruit juice concentrate and its downstream FC products form the "cornerstone" of the beverage industry.

In contrast, Not From Concentrate (NFC) juice, which has been gaining increasing attention, is not made from fruit juice concentrate. It is merely a "new dividend" outside the "cornerstone."

Similar to the oil industry, the niche sector of fruit juice concentrate is also dominated by global oligopolies that search for fruit resources worldwide and monopolize the supply of concentrate. Del Monte, Pepsi, Ocean Spray, Apple & Eve, Coca-Cola, and Tropicana are all well-known international brands.

Production Process of Fruit Juice Concentrate

Take apple juice concentrate as an example for your reference.

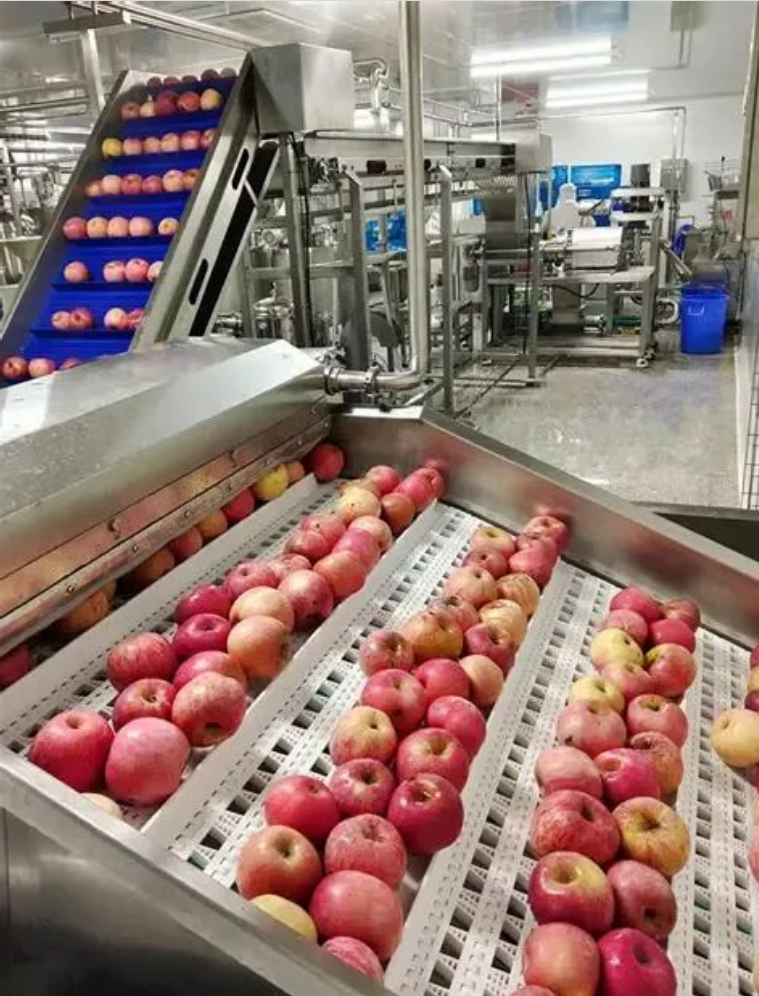

Apples → Washing → Sorting → Crushing → Juice Extraction → Coarse Filtration → Pasteurization → Enzymatic Depectinization → Ultrafiltration → Vacuum Concentration → Pasteurization → Aseptic Filling → Apple Juice Concentrate

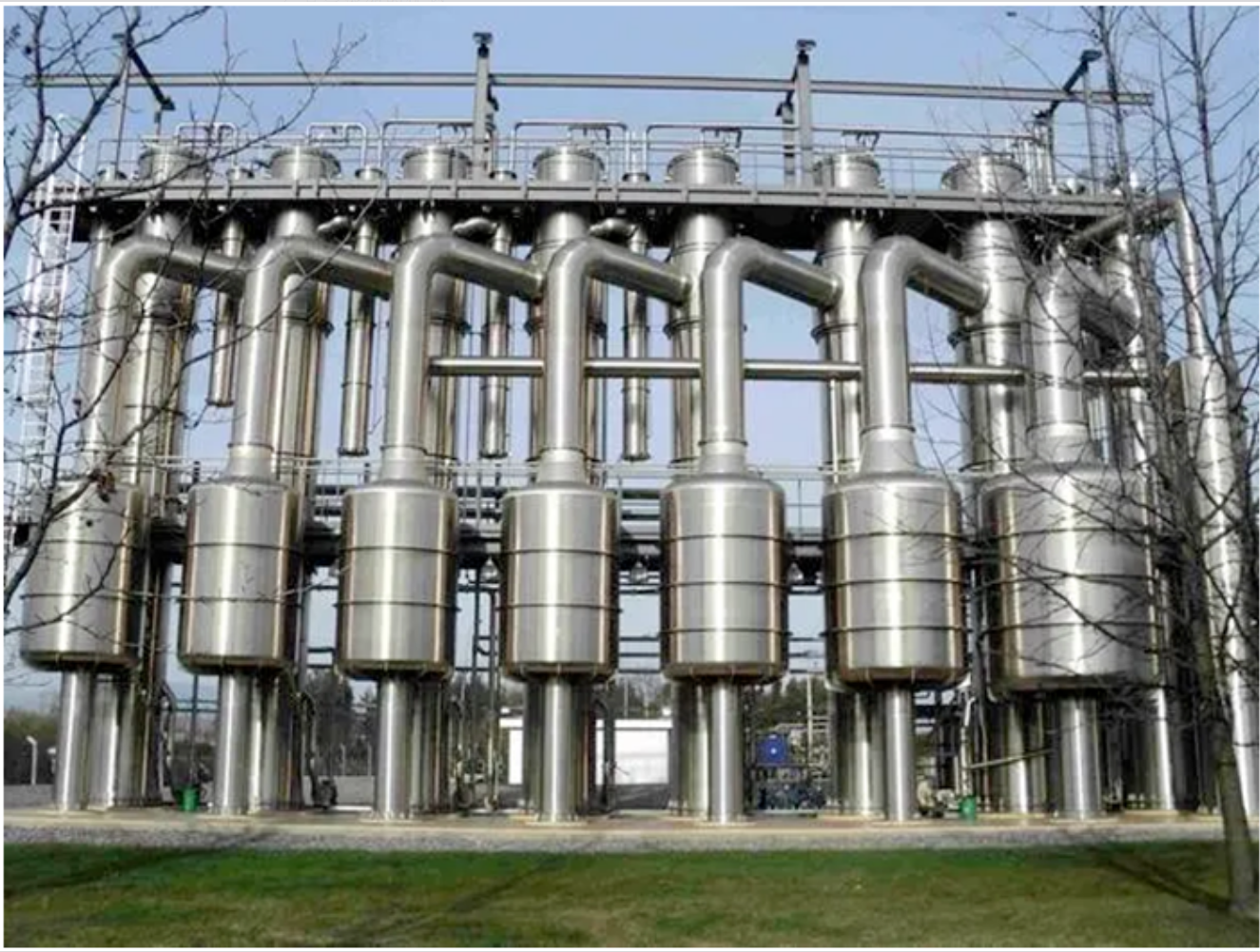

Principles, Advantages and Disadvantages of Vacuum Concentration for Juice

Vacuum concentration equipment requires low investment, is easy to maintain, offers good material compatibility, and provides decent protection for heat-sensitive nutrients and aroma compounds. For these reasons, it is the first choice for most juice manufacturers today. Therefore, we have selected vacuum concentration as an example to introduce juice concentration technology.

Vacuum concentration uses a negative pressure environment to make the juice boil and evaporate at a lower temperature. The lower the vacuum degree, the lower the boiling temperature of the juice, and the lower the energy consumption for water evaporation. However, the vacuum pump itself also consumes energy, so the vacuum degree cannot be reduced indefinitely.

Generally, when the vacuum gauge shows a vacuum degree of approximately 92–98 kPa, the juice can boil and evaporate water at 40–65°C. The specific temperature is directly related to the intensity of the negative pressure, but has little correlation with the final concentration ratio or the type of juice.

• Low requirements on the fluid properties of the juice raw material
  Vacuum concentration is compatible with clear, cloudy, and even viscous or high-sugar-content juices. This is a significant advantage compared to membrane concentration technology, which can only process low-viscosity, clarified juices.
• Ability to achieve soluble solids content above 65 Brix
  In contrast, membrane concentration technology can only achieve 20–30 Brix, giving vacuum concentration a clear edge.
• Smooth integration with the overall process flow
  The process is simple and straightforward. Unlike membrane concentration, which requires multi-stage membrane separation to achieve a relatively clarified state before entering the concentration step, vacuum concentration does not have such complex pre-treatment requirements.

1. Significant Energy Consumption

   The evaporation efficiency of different types of vacuum concentration equipment varies greatly, with water evaporation capacity per single unit ranging from several tens of kilograms to several hundred tons per hour.

   However, the common drawback is that all such equipment consume a substantial amount of energy. Here, using electrical energy as the basic energy consumption unit for comparison, theoretical vacuum concentration of juice requires approximately 300–400 kWh of electricity per ton of water evaporated. Methods to reduce energy consumption include: controlling ineffective heat loss of the equipment, improving the vacuum tightness of the equipment, adjusting the flow rate to enhance the convective heat transfer coefficient, and implementing multi-stage concentration in coordination.

2. Loss of Volatile Aroma Compounds

   The loss of volatile aroma compounds is another disadvantage of vacuum concentration. However, this issue has been well controlled with the development of volatile aroma compound capture and re-flavoring technology.

3. Increased Viscosity, Fouling, and Unwanted Chemical Reactions

   As the concentration ratio of the juice increases, the viscosity rises significantly, and the material tends to scale and dry out. As the liquid transitions toward a solid state, the heat transfer coefficient of the material increases notably. Excessively high local temperatures can induce the formation of furfural compounds in the juice, which negatively affects the flavor. At the same time, it exacerbates caramelization and the Maillard reaction, diminishing the juice's bright and vibrant color. Therefore, it is very important to use automated scrapers, agitators, and similar methods to ensure uniform heat distribution and maintain material homogeneity.

Temperature and Pressure Selection for Juice Vacuum Concentration

Vacuum degree and temperature are actually interdependent parameters. How should the vacuum degree and temperature be set?

For juices that require high throughput and fast processing speeds, such as apple, pear, and orange juices, a relatively higher evaporation temperature of 60–65°C can be selected. At this temperature range, evaporation efficiency is high, and the loss rates of basic nutrients such as sugars, acids, pigments, and vitamins remain controllable.

Vacuum concentration at relatively higher temperatures causes the loss of a large amount of volatile compounds from the juice concentrate. By integrating a volatile compound recovery system, these aroma substances can be captured, condensed, and stored. These aroma substances are then re-added (re-flavored) back into the finished concentrate, restoring nearly 90% of the original flavor characteristics. Of course, some customers do not place high importance on the aroma of such commodity-grade concentrates, as most are used as base ingredients for further production and will be re-flavored later anyway.

For small berry juices, which often have high requirements for specific aroma profiles, equipment with smaller processing capacity is more suitable. Smaller equipment generally offers better air-tightness, which allows for a higher vacuum degree, enabling the juice to be concentrated at lower temperatures of 40–50°C. In summary, whether to choose low-temperature concentration depends on the volatility of aroma compounds and the heat sensitivity of the material. Whether to choose high-temperature concentration depends on cost control and production efficiency.

Packaging and Storage of Fruit Juice Concentrate

1. Although fruit juice concentrate can be stored at ambient temperature, we still recommend low-temperature refrigerated or frozen storage to reduce the rate of chemical reactions within the juice, thereby achieving better flavor retention.
2. Use sealed containers to store fruit juice concentrate, avoiding contact with oxygen and protecting it from light exposure. Therefore, sealed metal inner and outer packaging is the best choice.
3. Do not add additional sugar or other components, so as to preserve the overall natural flavor and aroma characteristics.
4. Measure the sugar and acid content, and label each container/batch to facilitate subsequent flavor blending by the buyer.

Enhancement Strategies Integrated with Vacuum Concentration Equipment

To translate theoretical principles into practical productivity, enterprises must closely integrate process enhancement strategies with modern vacuum concentration equipment:

• Opt for Low-Temperature Continuous Equipment to Overcome Heat-Sensitivity Challenges:

  For juices with high viscosity or a strong tendency to scorch, traditional batch concentration pans should be phased out in favor of falling-film, rising-film, or ultra-low-temperature vacuum concentrators. By utilizing rotating rollers to form a thin film for evaporation, these systems significantly reduce heat exposure to just a few minutes. They enable continuous feeding and discharging at ultra-low temperatures ranging from 20°C to 50°C, effectively preventing material denaturation and scaling, while maximally preserving the active functional ingredients of the product.

• Introduce Auxiliary Heating Technologies for Quality and Efficiency Improvements:

  To further boost concentration efficiency, emerging technologies such as Ohmic Heating can be integrated with vacuum evaporation systems. This auxiliary heating method not only significantly shortens processing time but also effectively minimizes the degradation of ascorbic acid. Consequently, it enhances the viscosity and color stability of the concentrated juice, achieving a dual leap in both product quality and production efficiency.

• Perfect the Flavor Recovery and Automated Control Loop:

  Prior to or during the heat treatment stage, devices like cyclone separators should be utilized to capture volatile aromatic compounds, which are then reintroduced (back-blended) post-concentration to compensate for flavor loss. Meanwhile, relying on modern equipment featuring online concentration monitoring and Clean-In-Place (CIP) systems enables fully pipelined and automated operations. This not only drastically reduces labor costs and physical workload but also ensures sterile compliance throughout the production process and guarantees high consistency across product batches.

In conclusion, the "fundamentals" of the beverage processing industry rely not only on massive market demand but also on the continuous iteration of underlying manufacturing technologies. Only by deeply integrating scientific processing workflows with highly efficient vacuum concentration equipment can enterprises achieve cost reduction and efficiency gains in the fiercely competitive market, consistently delivering premium concentrated juice products.
