Stainless Steel Falling Film Evaporator for Plant Extract Concentration
Wide application across multiple industries
Gentle low-temperature operation for heat-sensitive materials
Efficient solvent recovery and concentration performance
Stable, reliable, and easy to operate
The Single-Effect Evaporator is a reliable and energy-efficient solution designed for concentration, solvent recovery, and wastewater treatment across a wide range of industries. With proven performance and stable operation, it is widely adopted in pharmaceutical, chemical, food, and beverage applications.

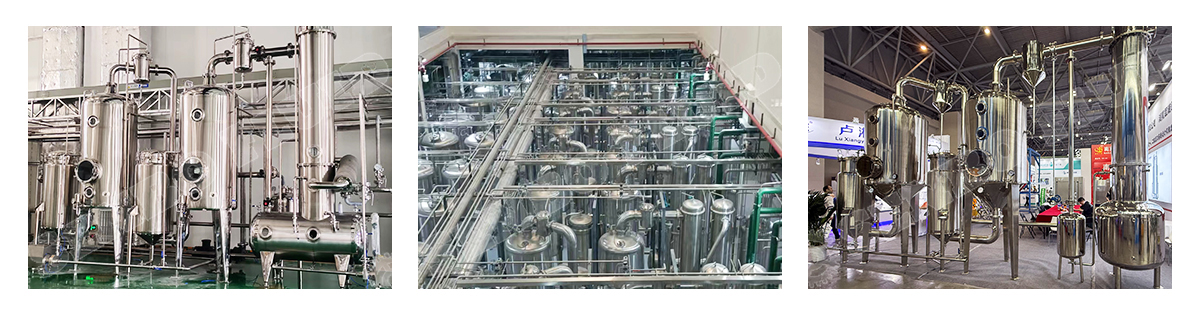

Pharmaceutical & Medical Applications
Senbofluid
Ideal for traditional Chinese medicine, pharmaceuticals, oral liquids, glucose solutions, and related products.
→The system enables efficient product concentration and solvent recovery, helping manufacturers improve product purity, increase output, and reduce operating costs while maintaining gentle processing conditions.
Chemical Industry Applications
Senbofluid
Commonly used for the recovery of organic solvents such as alcohols and ketones, as well as for industrial wastewater concentration and treatment.
→The evaporator delivers stable performance, high recovery efficiency, and long service life, making it suitable for continuous and demanding chemical processes.
Food & Beverage Applications
Senbofluid
Perfectly suited for the low-temperature concentration of heat-sensitive products, including fruit juices, dairy products, natural flavors, food additives, and seasonings.
→By operating under vacuum, the system helps preserve natural flavor, color, and nutritional value, while extending product shelf life and improving overall product quality.
This equipment consists of the following main components:
Heater
Evaporator chamber
Gas-liquid separator
Condenser
Cooler
Receiver tank
Valves and piping within the system
Live steam enters the heater, heating the feed solution, which then rises and is sprayed into the evaporator chamber through a nozzle. The vapor and liquid are separated in the chamber. A portion of the liquid returns to the lower part of the heater via circulation pipes for reheating, and is then re-sprayed into the evaporator chamber, forming a continuous circulation loop.
When the feed solution reaches a certain concentration level, density meter feedback triggers the discharge of the concentrated liquid from the outlet port.
The vapor generated in the evaporator chamber passes through a demister to remove foam, and then goes through the gas-liquid separator. A portion of the liquid is returned to the evaporator chamber to maintain stable operation.
The remaining secondary steam is condensed into liquid by the condenser and cooler, and collected in the receiver tank. Non-condensable gases are either vented or removed by a vacuum pump.

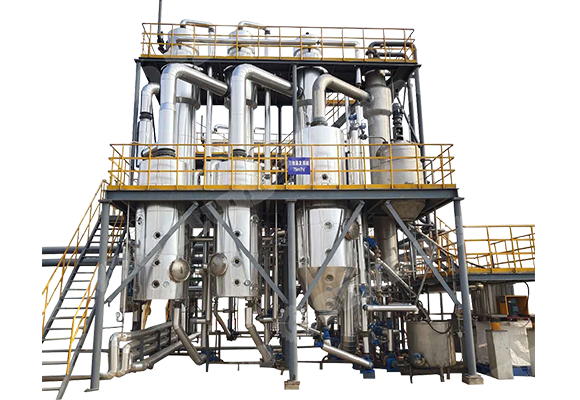

Single-effect Concentrator

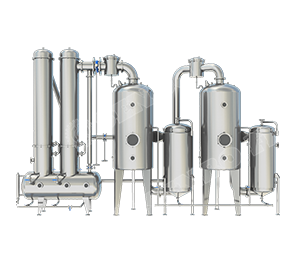

Dual-effect Concentrator

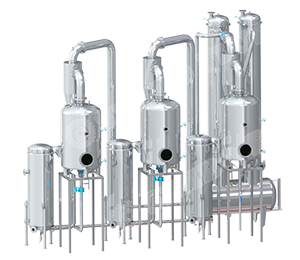

Triple-effect Concentrator
Gentle & Efficient Heat Transfer Design
01
316L/304 stainless steel tubes with mirror-polished interior (Ra ≤ 0.45 μm)
Low residence time (＜30 seconds) minimizes thermal damage
Preserves thermolabile actives (e.g., flavonoids, alkaloids)

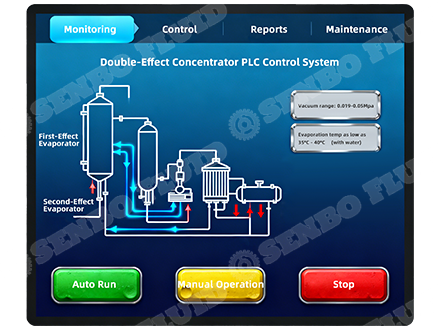

Vacuum & Temperature Control System
02
Vacuum range: 0.019-0.05Mpa(adjustable)
Evaporation temp as low as 35°C - 40°C (with water)
PLC-controlled steam/water bath heating
Stable operation for ethanol, water, or mixed solvents

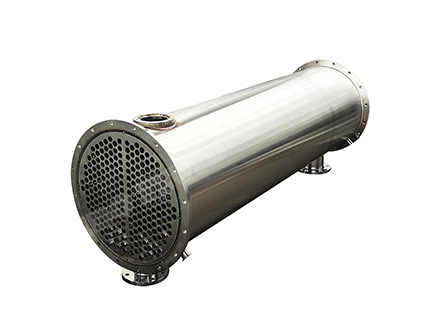

High Solvent Recovery Rate
03
Condenser area optimized for >95% solvent recovery
Optional cold trap for volatile aroma compounds
Reduces raw material loss and operating costs
CIP/SIP Ready Design
04
Full-drain piping with zero dead zones
Rotating spray balls for full internal coverage
SIP (Sterilization-in-Place) optional with steam jacket
Ensures GMP compliance and fast batch changeover
Modular & Scalable Configuration
05
Evaporation capacity: 50 L/h to 5,000 L/h
Single or multi-effect designs available
Seamless integration with extraction tanks & vacuum belt dryers
Flexible for pilot, mid-scale, or industrial production
Safety & Compliance
06
Explosion-proof motors & instruments (ATEX/UL optional)
Pressure relief valves & vacuum breakers
Full documentation for FDA, CE, and GMP audits
Single-effect Concentrator
| Specification | SJN-500 | SJN-1000 | SJN-2000 | SJN-3000 |
|---|---|---|---|---|
| Evaporation ( Kg/h ) | 500 | 1000 | 2000 | 3000 |
| Steam consumption ( Kg/h ) | ≤260 | ≤530 | ≤1050 | ≤1580 |
| Outline dimension(Length * width * height) ( mm ) | 5000x1200x3700 | 6500x1600x4500 | 7200x1700x5000 | 8400x1700x5000 |
| Recycling water consumption ( L/h ) | 14 | 28 | 55 | 83 |
| Evaporation temperature | One-effect | 80-90 | Vacuum degree Mpa | 0.02-0.04 |
| Double-effect | 55-70 | 0.05-0.06 | ||
| Steam pressure (Mpa) | ＜0.25 | |||
| Relative density | 1.2-1.3 | |||
| Container class | First type (Single-effect heater) | |||
| Specification/model | SJN500 | SJN1000 | SJN1500 | SJN2000 | SJN3000 | SJN5000 | SJN6000 | SJN8000 |
|---|---|---|---|---|---|---|---|---|
| Evaporation ( Kg/h ) | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | 6000 | 8000 |
| Steam pressure ( Mpa ) | 0.1~0.25 | |||||||
| Steam consumption ( Kg/h ) | 185 | 370 | 555 | 740 | 1110 | 1850 | 2220 | 2960 |
| Circulating water consumption ( T/h ) | 9 | 18 | 28 | 36 | 55 | 92 | 110 | 146 |
| Medium | ||||||||
| Dimensions L*W*H ( mm ) | 7080x900x3500 | 7680x1000x4000 | 8380x1100x4600 | 8890x1100x4600 | 9500x1300x4900 | 10200x1400x5300 | 10800x1500x5800 | 11500x1600x5800 |
| Vacuum degree(Mpa) | Evaporation temperature（℃） | |
|---|---|---|
| One effect | -0.04 | 80 |
| Dual effect | -0.07 | 70 |
| Three effect | -0.085 | 53 |
Experienced in industrial concentration equipment supply
Familiar Pharmaceutical, food, and chemical industries processing projects
Strong customization and project coordination ability
Professional communication and fast response
Explosion-proof design
PLC automatic control system
CIP cleaning system
Vacuum or pressure vessel design
(steam, purified water, circulating water, chilled water, compressed air, nitrogen, vacuum, heating, etc.)
We can supply individual equipment or a complete turnkey extraction solution.
We provide complete technical support for extraction projects, including:
Process consultation and equipment selection
Process flow design and layout support
Equipment manufacturing and factory testing
Installation and commissioning guidance
Operator training and after-sales service
Export standard wooden case or steel frame
Suitable for sea and land transportation
Delivery terms: EXW / FOB / CIF
Process flow suggestion
Technical proposal
Budget estimation
Turnkey project solution
