As a professional manufacturer of plant extraction, concentration, and drying production line equipment, we provide efficient, stable, and compliant industrial turnkey solutions for the production of astaxanthin, particularly sourced from Haematococcus pluvialis. Senbofluid This production line adopts industry-leading supercritical CO₂ extraction technology as its core, combined with precise pre- and post-processing techniques, ensuring high extraction efficiency, optimal preservation of astaxanthin's biological activity, and superior product quality.
Taking Haematococcus pluvialis algal powder as an example, it is currently the most mainstream and highest-content source of natural astaxanthin.
Astaxanthin Content: Typically required to be ≥2.5% (dry basis). Higher is better, as it directly affects yield and cost.
Moisture: ≤10%. Excessive moisture severely impacts the efficiency of supercritical CO₂ extraction, increases energy consumption, and may cause equipment icing or clogging.
Cell Wall Disruption Rate: ≥95%. This is the most critical pre-treatment indicator. Astaxanthin cannot be effectively released from unruptured cells. Clients may provide pre-disrupted algal powder, or we can handle the disruption process.
Solvent Residue/Heavy Metals/Microbiological Indicators: Must comply with the food or dietary supplement ingredient standards of the target market (e.g., U.S. FDA, EU, China).
1.Raw Material Pretreatment
2.Loading and Pressurization
3.Circulation Extraction
4.Separation and Collection
5.Refining and Purification
6.Mixing and Blending
7.Filling and Packaging
8.Final Product

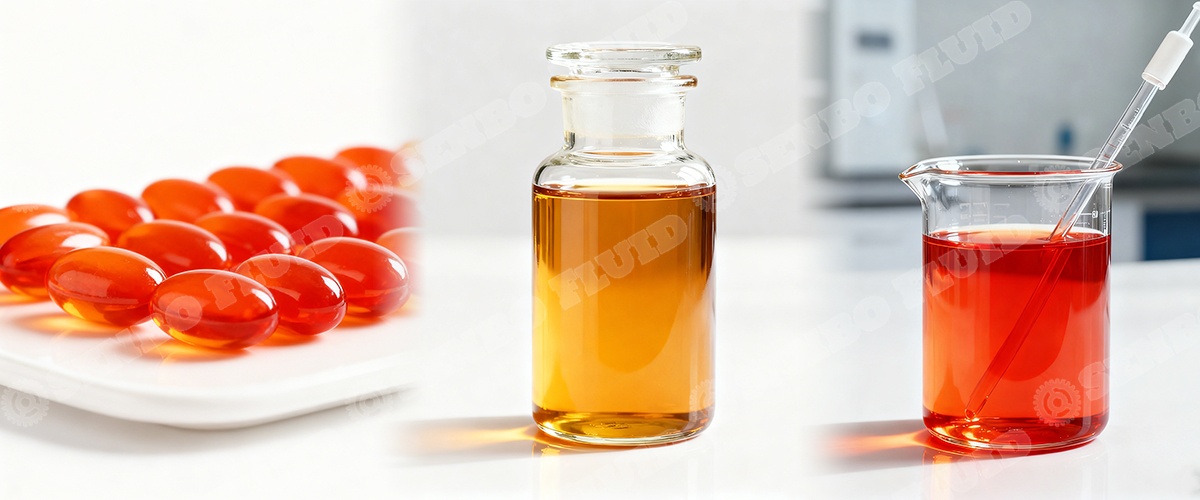

| Product Form | Description | Achievable Concentration Range | Main Applications |
|---|---|---|---|
| Astaxanthin Oleoresin | Direct product from supercritical extraction; a deep red, viscous oily liquid containing the complete algal lipids. | 5% - 15% （astaxanthin esters） | Supplied as a raw material to nutraceutical and cosmetic manufacturers. |
| High-Purity Astaxanthin Oil | Purified via molecular distillation, resulting in brighter color and higher purity | 10% - 40%+（astaxanthin esters） | Used in high-end nutraceuticals, functional foods, and premium cosmetics. |
| Astaxanthin Softgel Capsules | Finished consumer product where the oil is encapsulated in gelatin | Common specifications: 4mg, 6mg, 12mg per capsule | Direct-to-consumer dietary supplements. |

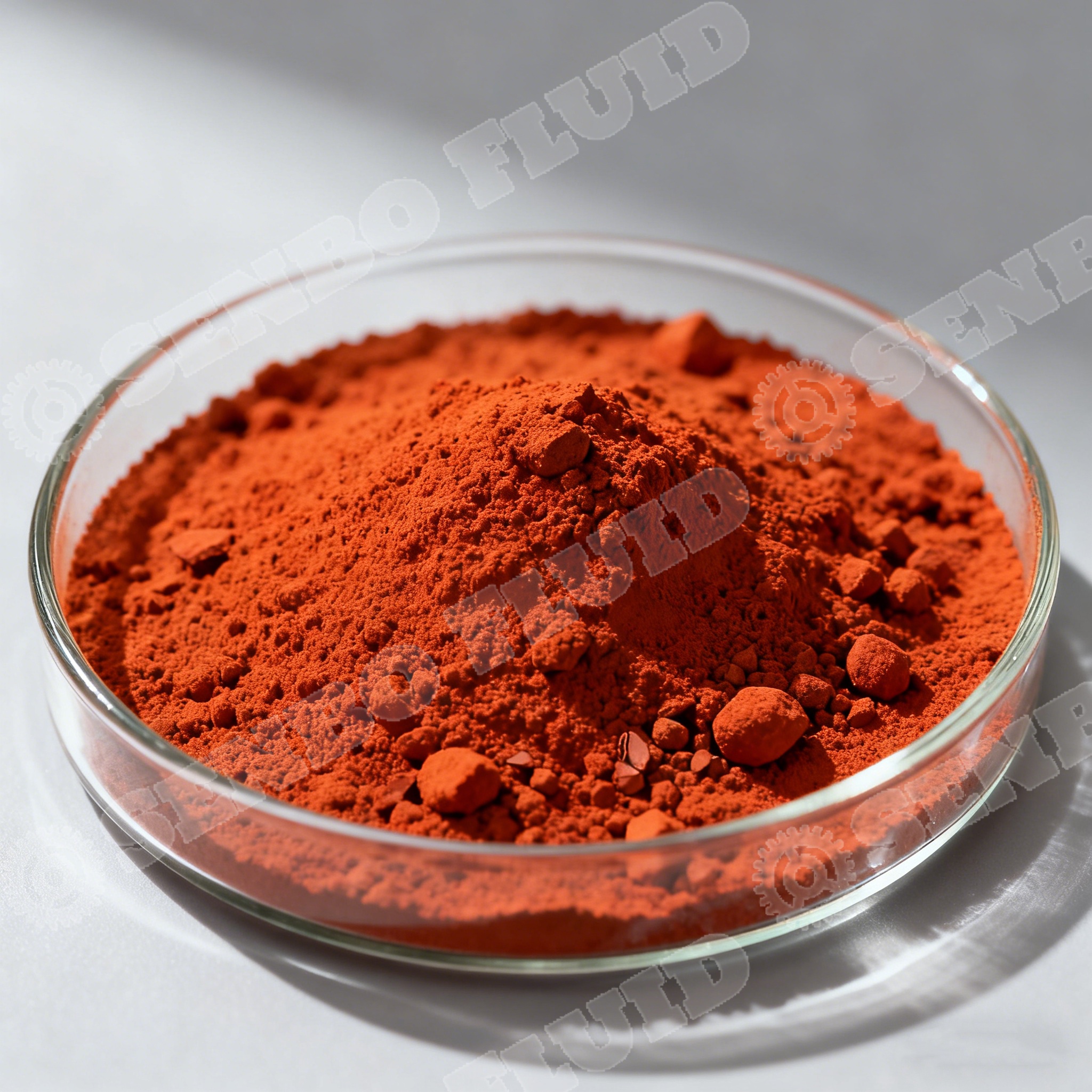

| Astaxanthin Powder | Powder produced through processes like emulsification and spray drying (requires encapsulation technology, e.g., microen-capsulation) | 1% - 10% | Used in solid beverages, tablets, candies, etc. |
Our astaxanthin extraction production line is a technologically advanced, highly efficient, energy-saving, and competitively superior modern industrial production system. It is designed to empower our clients in securing a leading position across the natural pigment, nutraceutical, and cosmetic raw material markets. Senbofluid We look forward to collaborating with you to create exceptional value together.
Project Design
The company designs optimal overall solutions that not only meet client requirements but also align with investment plans. We possess a highly experienced team specializing in process and equipment design, comprised of multiple disciplines including process systems, purified ventilation, HVAC & plumbing, integrated plant piping, automation control systems, and 3D structural installation design. Senbofluid All designs are executed in compliance with GMP, FDA, and ASME standards, meeting the stringent requirements of industries such as biopharmaceuticals and food processing.
Equipment Manufacture
The Manufacturing Center utilizes production drawings approved and signed by the client as the sole basis for manufacturing. All equipment fabricated on-site is subject to verification by our Quality Control Supervisor to ensure compliance in accordance with stringent regulations. Concurrently, detailed in-process inspections are conducted to guarantee that all suppliers adhere to the mandated quality standards established by Senbo.
Project Construction
Standardized and professional construction serves as the paramount guarantee for achieving design objectives. Senbo possesses an experienced construction management team and installation crew, renowned for their meticulous attention to detail and relentless pursuit of perfection.
Tunkey Project Installation
We offer comprehensive one-stop solutions, covering the design and construction of process systems, purification and ventilation, HVAC (heating, ventilation, and air conditioning), plumbing and drainage, as well as integrated pipelines across the facility. This integrated approach eliminates the challenges of cross-disciplinary coordination and overlapping construction phases for your project.
Automatic Control
We have established the Automation Installation Engineering Division, leveraging our deep understanding of the pharmaceutical and food industries' processes and our professional automation team. We are committed to delivering the highest quality intelligent integrated services through professional, comprehensive digital solutions for our clients.
Personnel Training, Verification and After-sales service
Senbo has an experienced GMP validation team that provides clients with systematic validation systems and training. Our professional after-sales service team operates across the globe

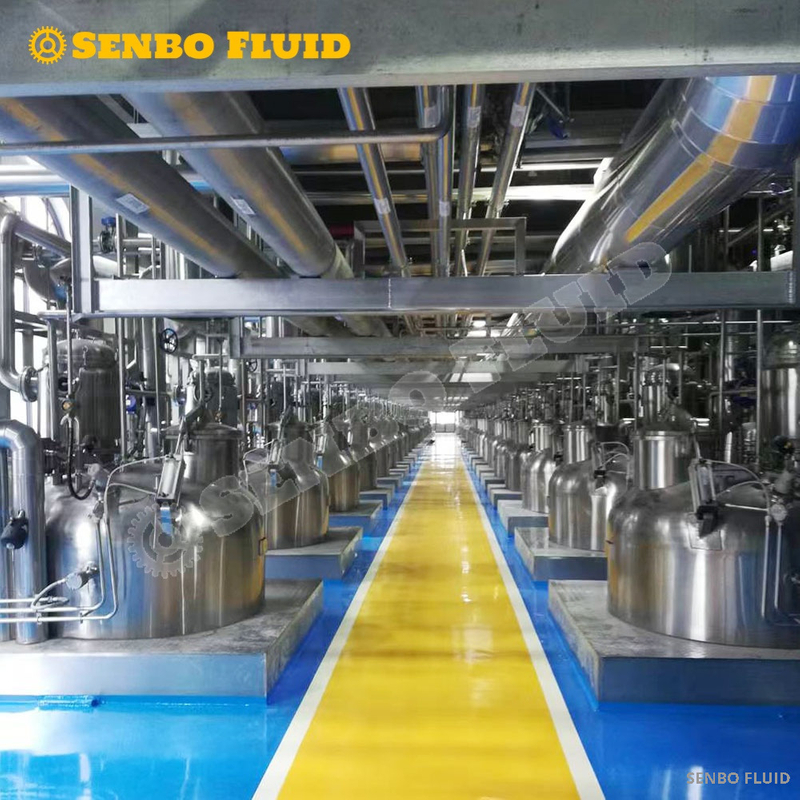

1.Extraction tank (Stirring device optional):
The dynamic extraction tank can be used for atmospheric pressure, micro pressure, water decoction, warm imrnersion and cold immersion conditions in herbal & plant, food and chemical industries. The equipment is equipped with a stirring device to make the material extraction sufficient and increase the extraction rate.
2.Concentrator:
The products mainly adapted to the concentrated production professional traditional herbal & plant health care products. natural seasonings food additives food. chemical industry and other industries. Senbofluid He can provide different proportions of extracts with different drying production methods t has advantages of wide application range. easy operation and low maintenance rate.
3.Cooling sedimentation tank:
It is applied to the freeze-precipitation of herbal & plant, oral liquid, food health products, etc, freezing or normal temperature precipitation of suspension, solid- liquid phase separation, and separation of wax and lipid substances.
4.Molecular (wiped film) distillation:
Is the best thermal separation machine for heat-sensitive material because it is the gentlest type, causing the least amount of thermal degradation of product. It is a process of separation, purification and concentration of natural products, complex and thermally sensitive molecules. Senbo molecular distillation units are wildly used for purification of oils, such as cannabis/hemp oil, garlic oil, cod liver oil in chemical and pharmaceutical industries. The whole molecular distillation system includes supporting chillers, heaters, vacuum pumps and all accessories.
The materials are transported from the feed tank to the jacketed main evaporator. The main evaporator is continuously heated. The built-in scraper evenly scrapes the materials into a layer of flowing liquid film for instant evaporation. The light component materials begin to vaporize and adsorb on the built-in condensing coil, flow into the receiving bottle along the outer wall of the condensing pipe, and the heavy component materials flow into the receiving bottle along the inner wall of the main evaporator.
5.Solvent rectification column:
The rectification column is a tower gas-liquid contact device for rectification. Using the characteristics of different volatility of each component in the mixture, the light component (low boiler) in the liquid phase is transferred to the gas phase, and the heavy component (high boiler) in the gas phase is transferred to the liquid phase, thereby achieving the purpose of separation. The equipment is widely used in solvent recovery in plant extraction, Chinese medicine, food, and chemical industries.
6.Preparation of liquid phase system (HPLC):
Industrial preparation liquid phase system is characterized by high efficiency, rapidity, high degree of automation, explosion-proof, etc. It is widely used in the separation and purification of pharmaceutical intermediates, biomedicine, synthetic drugs, natural products, fine chemicals, food additives and other fields. Industrial preparation of liquid phase systems can effectively improve production efficiency, improve automation, and improve product purity and yield.
7.Vacuum Belt Dryer:
The vacuum belt dryer is suitable for continuous drying of raw materials, semi-finished products and finished products such as roots, stems and leaves. It can also be used for continuous drying of aquatic products and other agricultural and sideline products and crops. It is especially suitable for materials with high water content and high heat sensitivity
8.Solvent mixing system:
A solvent mixing system is an automated or semi-automated system that integrates storage, transfer, metering, mixing, quality control, distribution, and safe handling functions. Senbofluid Its core purpose is to efficiently, safely, and uniformly blend one or more solvents (or solvent-containing materials) with other components according to precise formulations to prepare solutions or mixed solvents that meet specific process requirements.
9.Dual Cartridge Filter:
The Dual Filtration System, also known as a Parallel Filtration System or a One-in-Use/One-on-Standby Filtration System, consists of two identical filters connected in parallel. Through an ingenious valve configuration, it enables the function of "one unit in operation while the other is on standby/maintenance." Its core purpose is to ensure the continuity and stability of production by allowing the switching, cleaning, or replacement of filter elements without the need for shutdowns or disruption to the main process flow.
10.CIP Cleaning System:
Is to control the opening and closing of the steam valve by measuring the temperature sensor; to control the opening and closing of the water valve by measuring the level of the liquid through the pressure transmitter; to control the pneumatic diaphragm pump dosing acid/ alkali by measuring the conductivity meter. The overall control process is water fillingto the tank --acid tank (alkali tank ) PH adjust- water heating - hot water washing - alkali washing - hot water washing - acid washing - hot water washing
11.Reactor:
Operating Principles
Firstly turn on the stirrer motor and reducer, under the drive of stirring shaft rotary, the scrapper stirrer; propeller, frame stirrer will all start rotary. The Polystyrene plate connected with spring installed on the scrapper stirrer sweeps the material stick on the inner tank wall, between the level beam of frame stirrer and the shaft has 45 degrees angle, which will form pushing force
Operating Procedures
Input solid material after the stirrer starting, otherwisethe solid material may deposit to the dead angle under the stirrer supporting bearing, the bottom sectorial scrapper can blend the material to dissolve it evenly. Afterwards turn on the steam, the steam heats the product inside tank through the jacket baffle plate and jacket covers, the condensate water is discharged through the condensate outlet. Observe the temperature of the probe, adjust the stirrer speed and direction, Turn off the steam after the reaction finished, open the bottom valves to discharge. After discharging, turn on the CIP cleaning ball to clean the tank inside surface, all reaction procedures finish.
Characteristics
Continuously feeding, auto discharging, high reaction efficiency;
Compound stirring system, easy to clean, product not easy to get coked
Aroma recycle device can collect the aroma produced during the reaction process
12.Resin Adsorption System:
(Automation Control System) Based on the advanced DCS distributed control strategy, the workstation realizes the control and data acquisition of pumps, valves and various online detectors. It can easily complete multicolumn series and parallel operation to ensure the stability and accuracy of the process.
13.Utility Systems:
As a professional manufacturer of plant extraction, concentration, and drying production line equipment, we deeply understand that stable, efficient, and clean utilities are the cornerstone for ensuring the reliable operation of core processes, improving product quality, and achieving energy conservation and reduced consumption. Therefore, we not only supply core production equipment but are also committed to delivering a fully integrated and perfectly matched overall utilities solution.(Descriptions of some equipment are provided below.)
13-1.Cooling water tower:
The exterior of the tower body is made of imported gel coat, and the interior is made of high-quality glass fiber reinforced plastic. The applicable temperature of the normal temperature cooling tower packing is 0-60 degrees, which water distribution capacity is strong and the resistance is small.
13-2.Water Softener
Harmless to the human body
Can work in low temperature, long life.
Can be filled with various filter materials
Made of Fiberglass Shell
Beautiful appearance
Suitable for commercial and industrial water treatment
Excellent corrosion resistance
Widely used places:
Media tanks for water and waste water purification treatment, such as media filters, water softeners, can be used in food environmental protection and other fields
13-3.Industry Steam Generator Boiler
Biomass steam generator is a kind of small boiler with circulating water pipe.Senbofluid Water circulation is smooth, heating area layout is scientific and reasonable, heat conduction is fast, steam pressure rises fast.Automatic feed, blower induction fan frequency regulation, boiler automatic operation, according to the load changes can automatically adjust the amount of fuel, steam output stability.With pressure, water level, smoke exhaust temperature and other protection and alarm measures to ensure safe operation of the boiler.
