Senbofluid provides a variety of integrated DCS automation solutions including DeltaV platform, PCS7 platform, Experion PKS platform, etc., which are used to break the information barriers between devices, centrally manage discrete devices, form a complete device control chain, and realize process automation through overall Batch control + DCS, helping users who want to achieve digital transformation.
Fully compliant with ISA-88 standards
Data centralization
Flexible control improves system risk resistance
Improve the efficiency and stability of production equipment
With a variety of formulas, flexible deployment combined with process
Fully automated process to reduce losses caused by human errors
For the process sections of feeding, extraction, concentration, alcohol precipitation, online cleaning, etc., we design the control system network architecture, large screen comprehensive monitoring, senbofluid and on-site process information display. We also design the process flow automation control, production control and process control scheme, and reflect the following main principles:

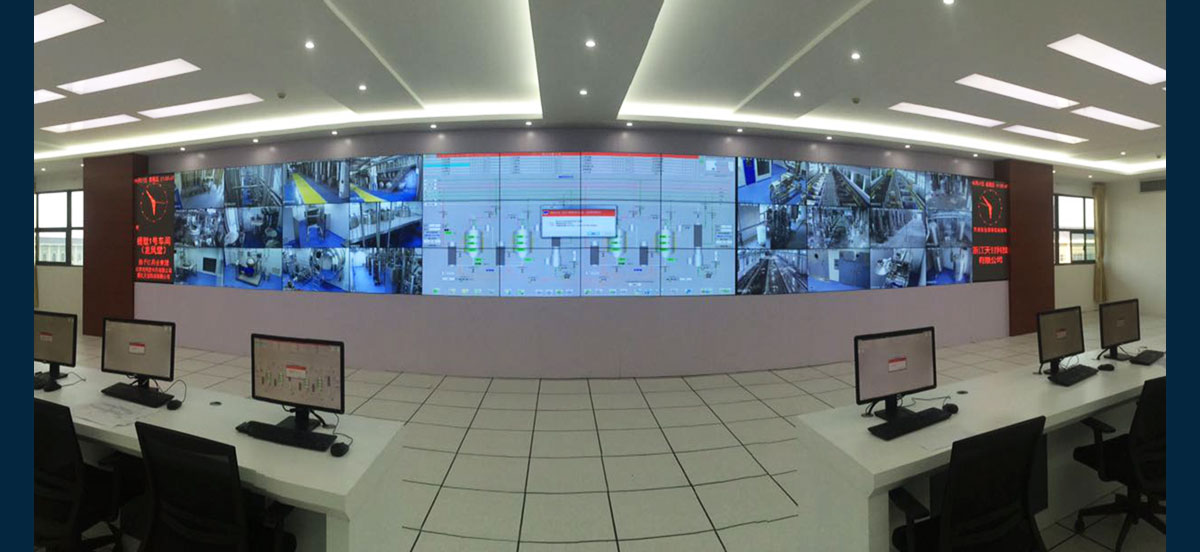

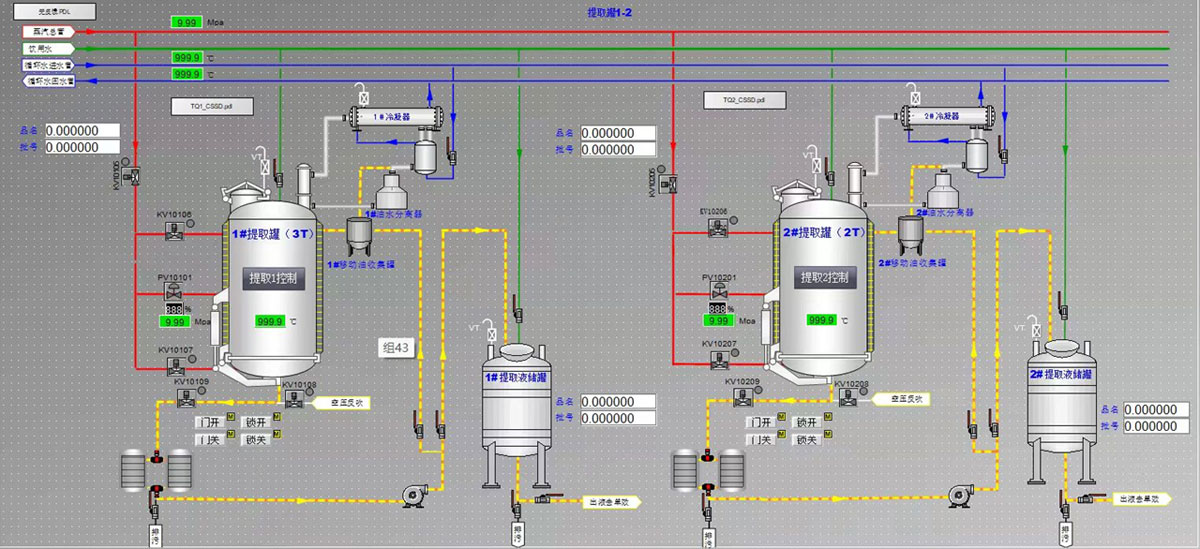

【 Large screen comprehensive information display 】

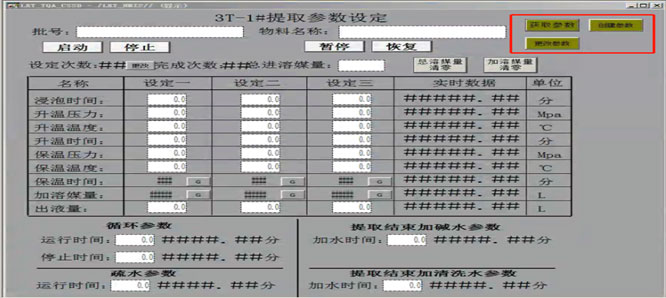

【 Configuration screen 】

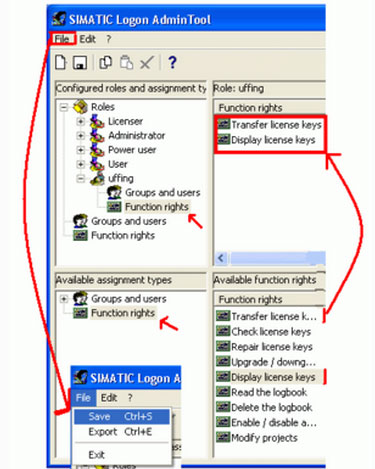

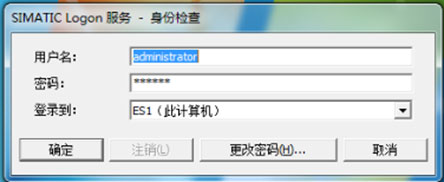

Complex password policy
Password complexity requirements, password length limits, regular password changes, non-repetitive passwords, automatic account logout, account lockout, etc.
Multi-level permission allocation
Screen browsing, parameter input, modify alarm value, reset alarm, alarm confirmation, manual and automatic switching, operation mode selection, stop system, modify date and time, configuration, debugging, trend, edit security settings, edit user group data, edit user group access rights, change own password, etc.

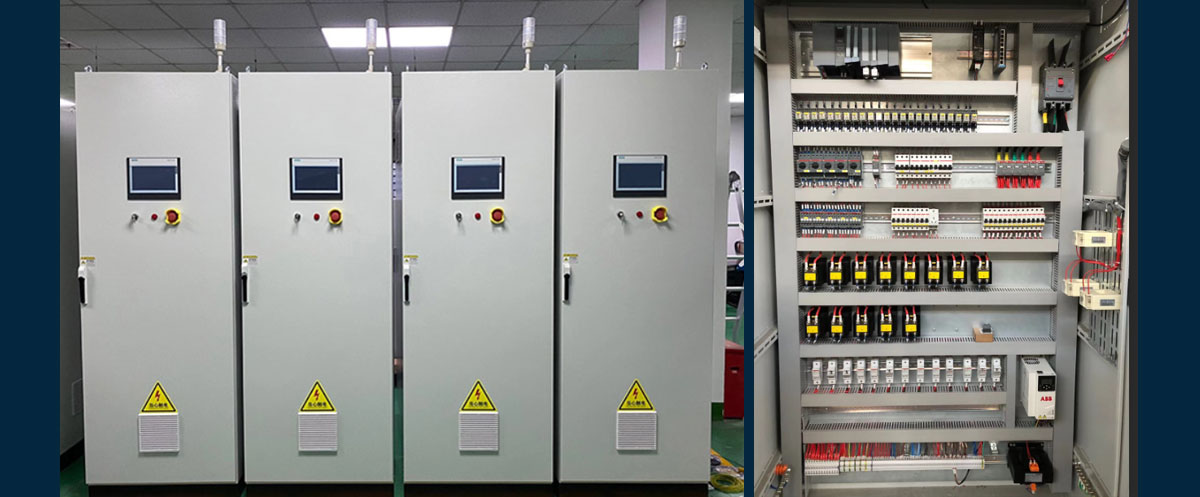

【 System Cabinet 】

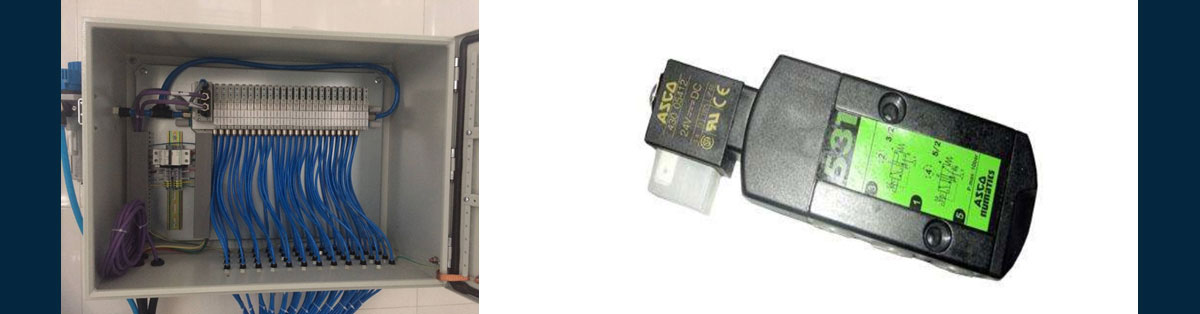

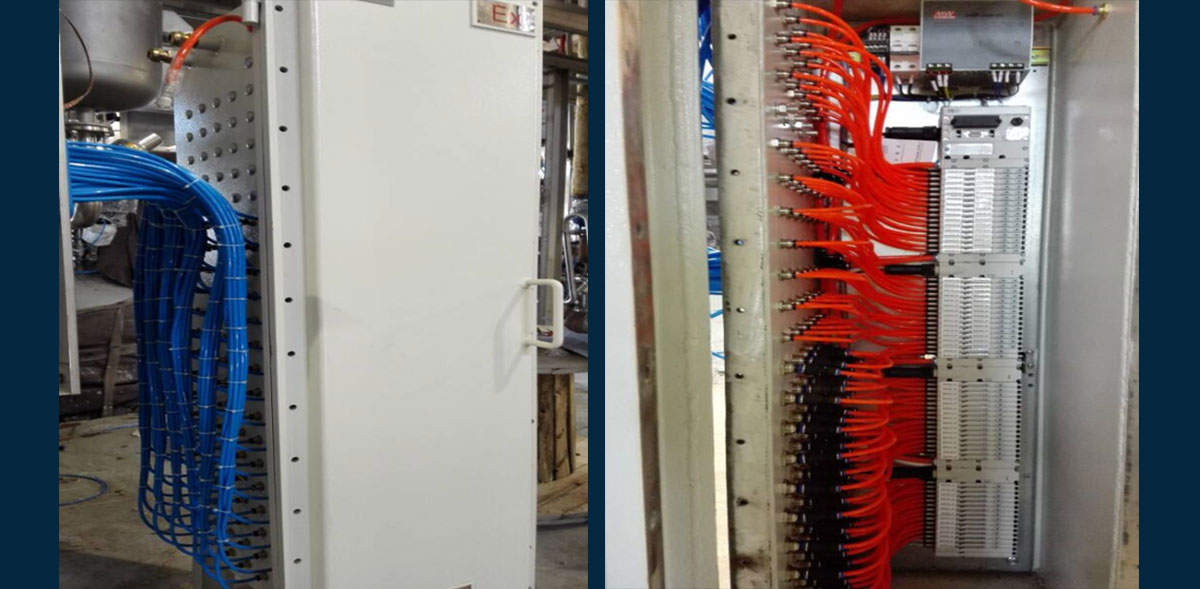

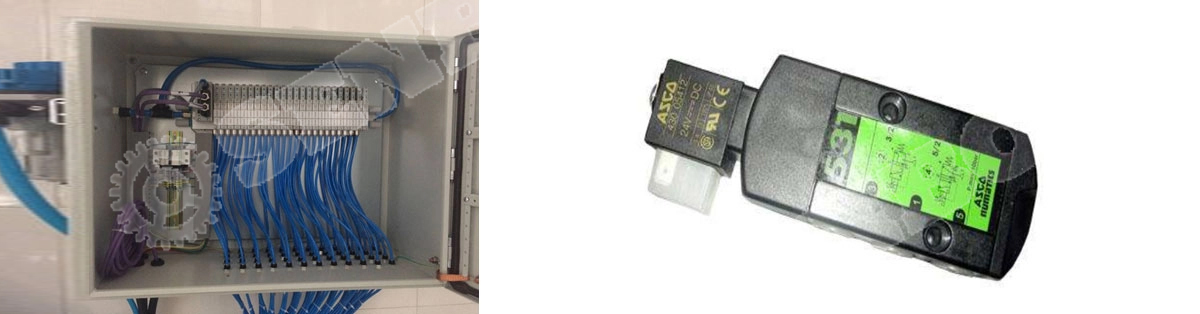

【 Tracheal layout 】
【 Bridge cable tube 】
【 Automatic installation 】
3D Content：
Equipment diagram
Equipment layout diagram

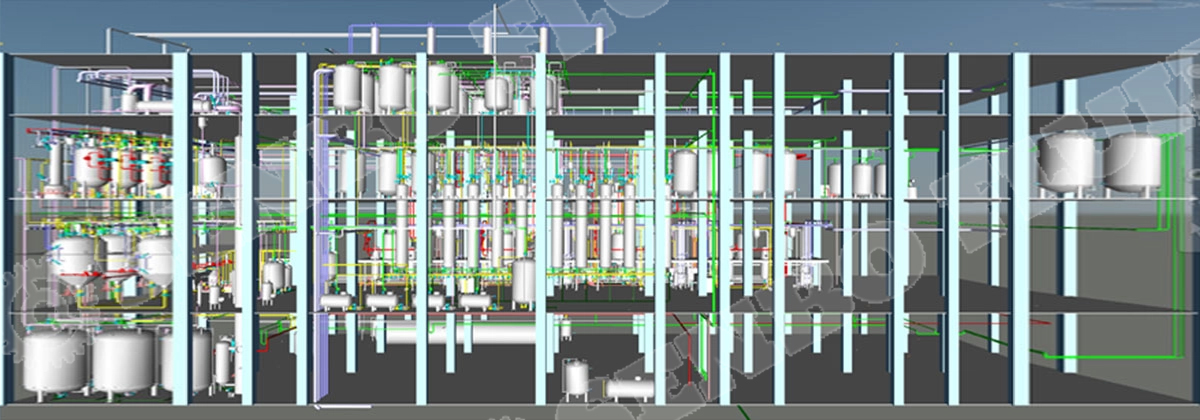

Three-dimensional process
Main pipeline
Utility Pipes
Instrument valve distribution
3D drawing requirements：
The integrity of the picture
Correctness of the model
Overall aesthetics
Design specification
Coordination of tones
Three-dimensional image function：
Guided installation
Avoid Fights
Quantity calculation
For viewing

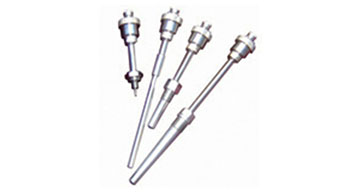

Temperature Sensor
The temperature is measured using armored platinum resistance, with A-grade accuracy and made from domestic high-quality brands

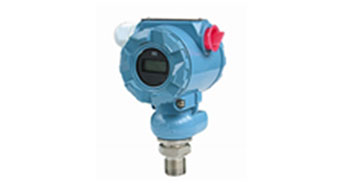

Pressure transmitter
The pressure transmitter is a domestic high-quality brand with an accuracy of 0.5%

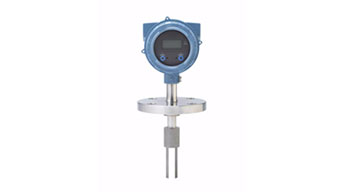

Liquid level transmitter
The capacitors are imported brands, with an accuracy of 5mm within 2m and 15mm above 2m

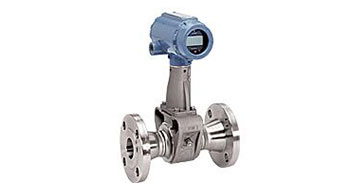

Flow transmitter
Electromagnetic flowmeter. Vortex flowmeter is imported brand
Density meter
Choose imported brands

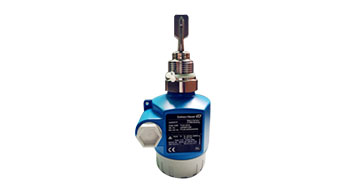

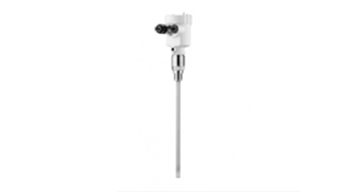

Liquid level switch
Choose imported brands

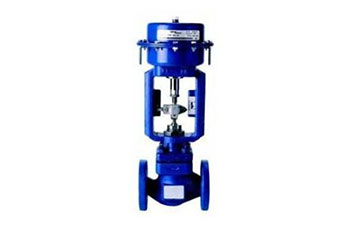

Steam Control Valve
Choose imported brands

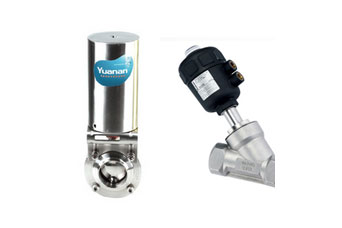

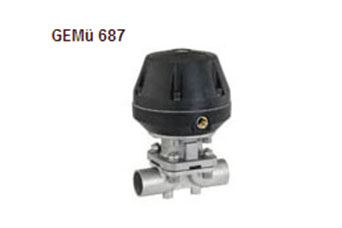

Pneumatic diaphragm valve
Using domestic high-quality and imported brands
Pneumatic ball valve/pneumatic angle seat valve
Using domestic high-quality and imported brands
Function Definition
BOM definition (can also come from ERP)

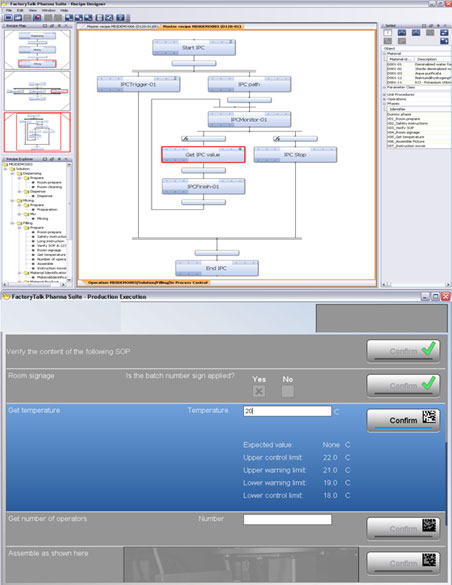

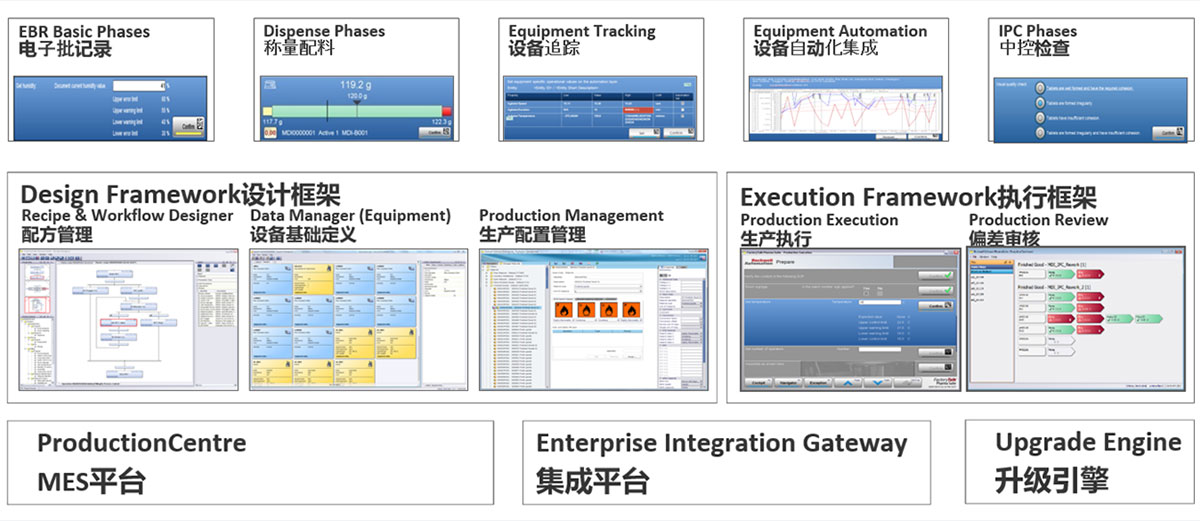

The graphical sequential model incorporates the entire production process of the product and its related parameters (CPP key process parameters, CQP key quality attributes) into the system and implements version and change control (pre- and post-clearance, material feeding verification, production execution)
Operation interface definition
Electronic Batch Record Definition
Device Definition
Receive ERP production plans and automatically decompose production instructions by process, time sequence, personnel, and workstations
According to the product characteristics, the product process parameters are combined with the software formula management to realize the independent formula production, management and modification functions of each variety. At the same time, the automatic import and production of the formula can be realized, and the materials can be automatically identified. Automatic selection of formula parameters
Role-Based Design
Ensure continuity of functionality and interface

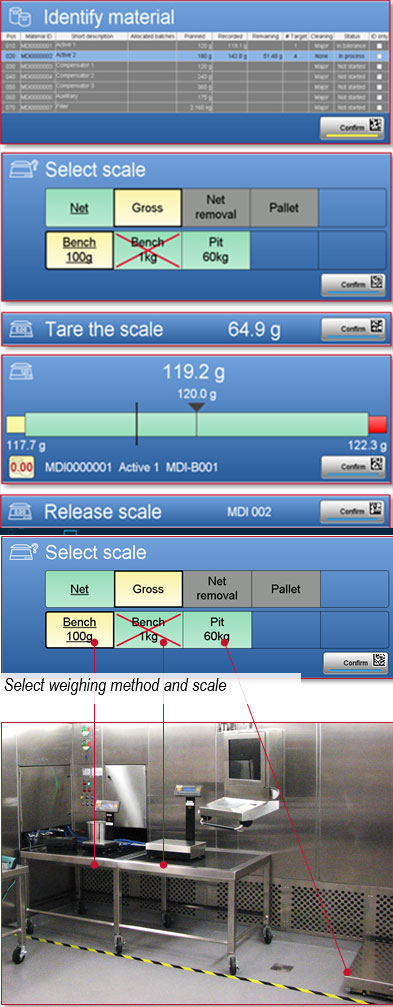

The system guides the weighing operation process
Integrated deviation management mechanism
Easy to integrate
S88 standard control formula
Real-time weighing interface
Open interface
Interfacing with 3rd-party devices
Electronic scales
Electronic scale automatic selection
Consider range, accuracy and tolerance
Consider the calibration and testing status of electronic scales
Predefined weighing methods
Select a weighing device by scanning the QR code
Deviation handling
Communication failed, manual selection
Allows returning to the previous step

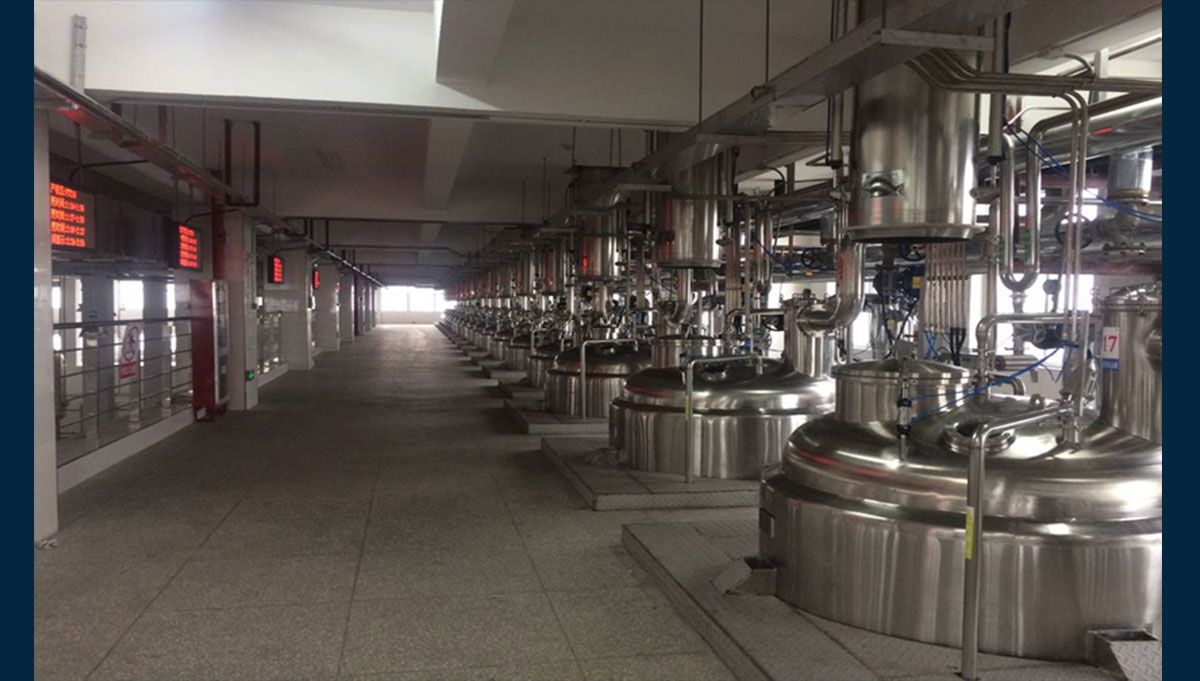

【 Jiangsu Yangtze River (Longfengtang Phase I) Chinese medicine extraction digital workshop 】
【 Automation control of Chinese medicine extraction (Phase II) of Anhui Huarun Jinchan Pharmaceutical 】
Familiar Pharmaceutical, food, and chemical industries processing projects
Strong customization and project coordination ability
Professional communication and fast response
Explosion-proof design
PLC automatic control system
CIP cleaning system
Vacuum or pressure vessel design
(steam, purified water, circulating water, chilled water, compressed air, nitrogen, vacuum, heating, etc.)
We can supply individual equipment or a complete turnkey extraction solution.
We provide complete technical support for extraction projects, including:
Process consultation and equipment selection
Process flow design and layout support
Equipment manufacturing and factory testing
Installation and commissioning guidance
Operator training and after-sales service
Export standard wooden case or steel frame
Suitable for sea and land transportation
Delivery terms: EXW / FOB / CIF
Process flow suggestion
Technical proposal
Budget estimation
Turnkey project solution
