Comparison Between Vacuum Belt Dryer, Spray Dryer, Vacuum Oven and Freeze Dryer

At the end of a plant extraction production line, the drying stage has long been regarded as a mere "post-processing step." When selecting equipment, many enterprises easily fall into a single-minded "capacity competition" or "temperature competition." However, as plant extracts continue to evolve toward higher purity and higher activity, the choice of drying method has transcended mere equipment procurement. It directly determines the product's composition profile, color, batch consistency, and even end-market pricing. The selection of drying equipment is shifting from merely "being able to dry" to an "optimal solution" that balances quality, efficiency, and energy consumption.

Currently, there are six mainstream drying pathways in the plant extraction industry: spray drying, vacuum ovens, freeze drying, disc drying, and vacuum belt drying (both liquid and solid types). Each evolves along a different technical logic, drawing clear boundaries in terms of temperature, time, material morphology, and operating costs.

The Boundaries of Traditional Pathways: Compromises Among "Quality, Efficiency, and Energy"

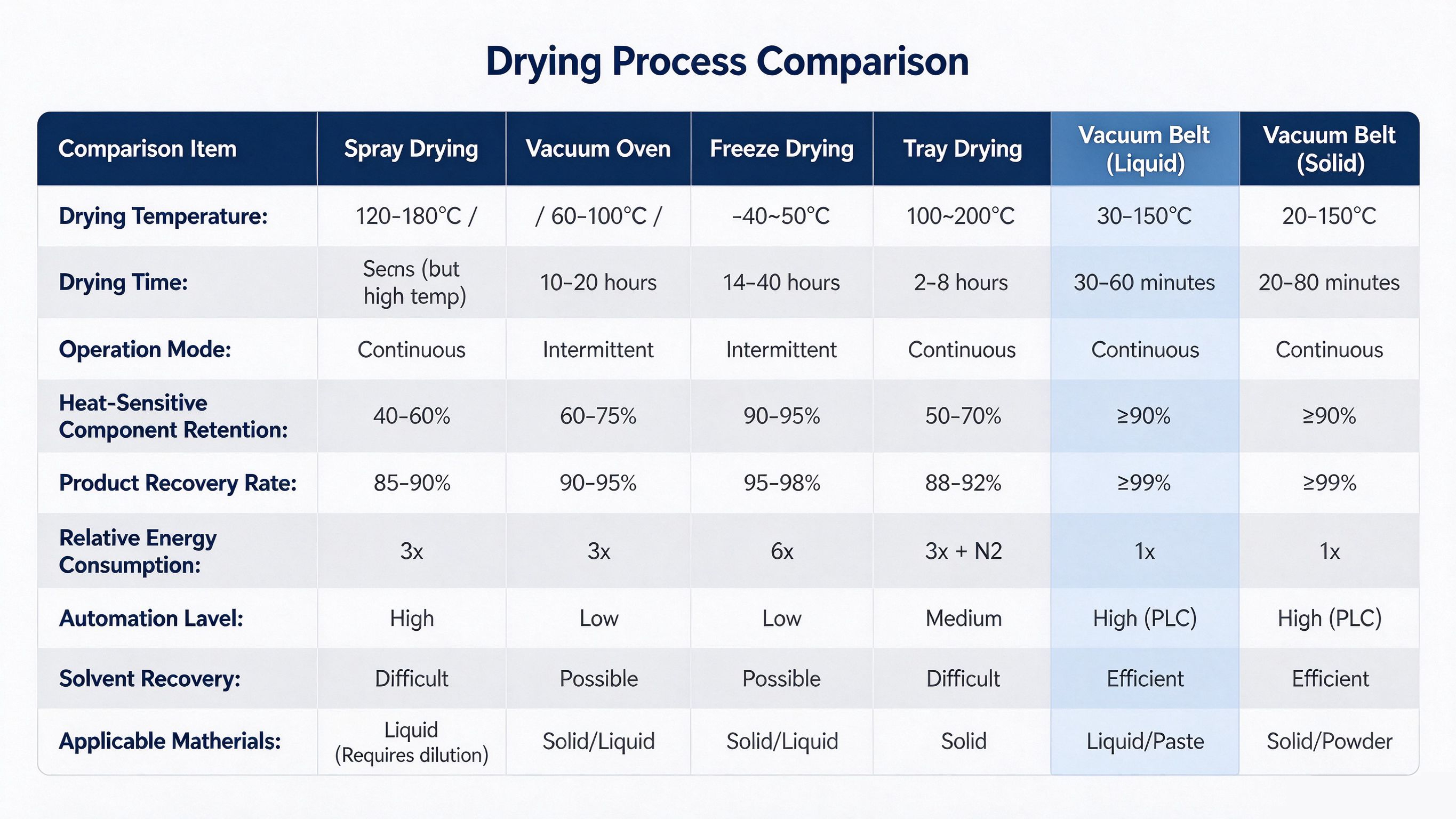

Comprehensive comparative data clearly reveals the limitations of the four traditional drying pathways:

Spray Drying is known for its speed. Materials are atomized into powder in seconds within a high-temperature air stream of 120-180°C, making it suitable for liquid materials with moderate heat sensitivity that require dilution. However, its high-temperature nature results in a retention rate of heat-sensitive components of only 40-60%. Additionally, solvent recovery is challenging, and the product recovery rate typically ranges between 85-90%. The cost is the irreversible loss of active ingredients.

Vacuum Ovens represent the lowest-threshold low-temperature option. Under a vacuum environment of 60-100°C, they can gently process solid/liquid materials and achieve solvent recovery. However, the static, intermittent operation lasting 10-20 hours not only limits the capacity ceiling but also causes uneven drying due to the static material bed, keeping the retention rate of heat-sensitive components at 60-75%.

Freeze Drying stands at the pinnacle of quality. At low temperatures of -40 to 50°C, the retention rate of heat-sensitive components can reach 90-95%, with a composition profile closest to the raw medicinal herbs. However, an intermittent production cycle of 14-40 hours and a relative energy consumption 6 times higher make it an exclusive solution for high-value, extremely heat-sensitive varieties; it cannot be widely adopted in standard production lines.

Disc Drying utilizes continuous thin-layer conduction and is suitable for solid materials. However, its relatively high drying temperature of 100-200°C yields a heat-sensitive component retention rate of only 50-70%, making it struggle when facing high-value, heat-sensitive extracts.

The Breakthrough: The "Dual-Engine" Drive of Vacuum Belt Drying

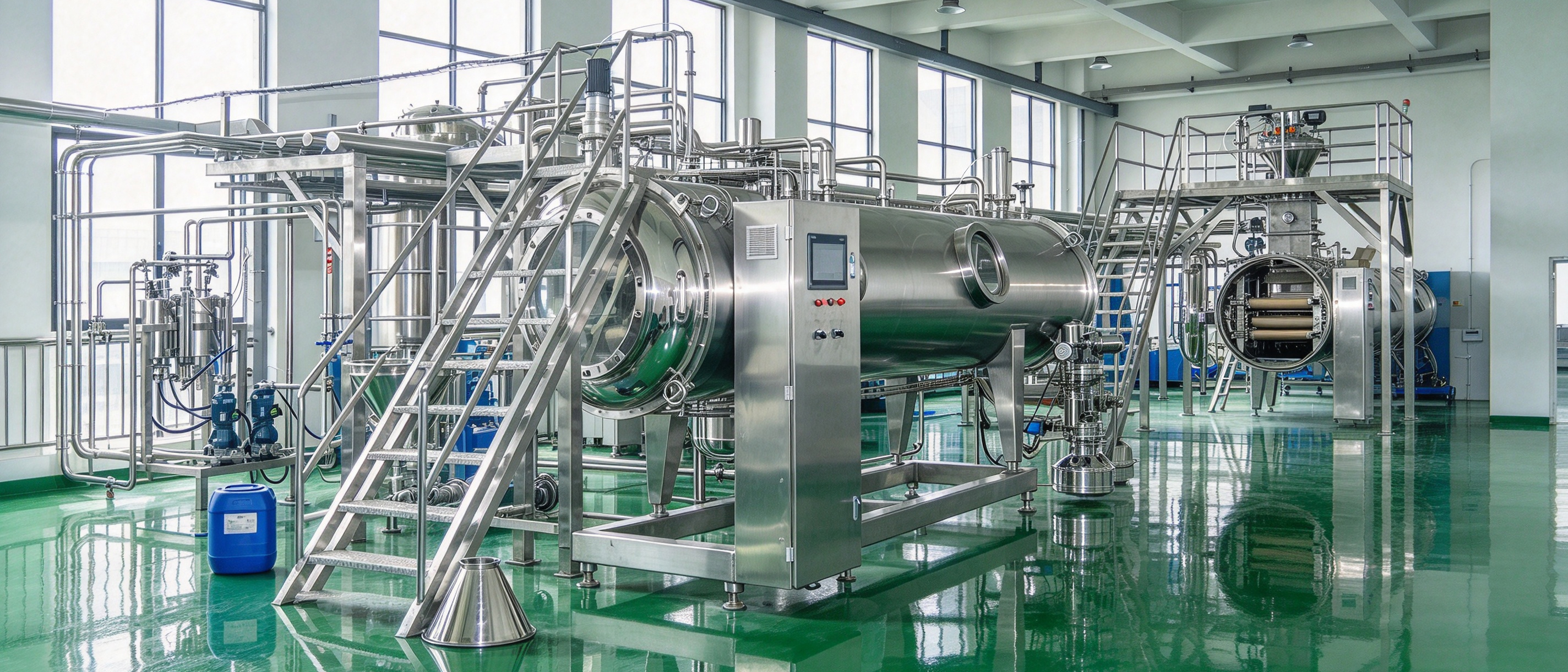

When traditional equipment struggles to balance "high-temperature damage to quality" and "low-temperature inefficiency," Vacuum Belt Drying has become the preferred selection for high-quality plant extraction lines through its underlying technological innovation. In comprehensive comparative data, whether liquid or solid type, vacuum belt drying leads comprehensively in core indicators such as quality, efficiency, energy consumption, and recovery rate.

Liquid Vacuum Belt Dryer (for extracts/viscous liquid feeding) is designed specifically for pumpable, high-viscosity herbal extracts and concentrates. The material is spread into a uniform thin layer by a distributor and processed in a wide, precisely controlled temperature range of 30-150°C, achieving continuous production in 30-60 minutes. It completely solves the pain point of high-temperature damage, elevating the retention rate of heat-sensitive components to ≥90%, directly rivaling the protective effects of freeze drying. Meanwhile, the product recovery rate reaches ≥99%, relative energy consumption is merely 1x, and it features highly efficient solvent recovery and full PLC automated control.

Solid Vacuum Belt Dryer (for solid material feeding) is an independent model designed for materials already in a solid state, such as granules, powders, and crystals. Sharing the "continuous belt + vacuum low-temperature" platform logic, it uses a continuous vacuum airtight feeder and a dedicated solid distributor to continuously dry solid materials at 20-150°C for 20-80 minutes. It perfectly inherits the belt drying genes of extremely low energy consumption (1x) and high recovery rate (≥99%), while effectively solving the issues of uneven drying and agglomeration associated with traditional equipment for solid materials, maintaining a heat-sensitive component retention rate of ≥90%.

Selection Guide: Material Characteristics Reverse-Define Equipment Morphology
For plant extraction equipment manufacturers, the essence of this technological differentiation is that the drying stage is transforming from a "post-processing step" into a technical node where equipment morphology is reverse-defined by material characteristics. The selection divergence depends on the material's tolerance boundaries across four dimensions: Temperature (degradation threshold of heat-sensitive components), Time (cumulative exposure of active ingredients to heat), Feed Morphology (pumpable liquid or solid granules), and Cost (energy consumption and solvent recovery).

While the six pathways each have their applicable boundaries, what truly determines the competitiveness of a production line is often the segment with the strongest heat sensitivity, the most complex feed morphology, and the highest requirement for continuous processing. Liquid and solid vacuum belt dryers share the same technological platform but are independent in their feeding, distribution, heat transfer, and anti-sticking strategies. They precisely cover the two types of materials in plant extraction that are most prone to mis-selection and have the greatest impact on batch consistency.

We recommend that clients bring their actual materials to the vacuum belt drying pilot testing platform during the initial selection phase, completing the process matching based on spreadability, adhesion, bulk density, heat sensitivity threshold, and vacuum feeding stability. The precision of selection must ultimately rest on the actual measured compatibility between the equipment and the material. As an equipment manufacturer, our core value lies not just in providing a single machine, but in using the liquid and solid vacuum belt drying platform to turn this compatibility into a production line capability that is verifiable, scalable, and continuously reproducible—empowering enterprises to establish a product advantage in the high-end plant extraction sector.
