What is a Mixing Tank?
A mixing tank is an essential industrial vessel designed to mix, emulsify, homogenize, or blend two or more fluids, solids, or gases. As a core unit integrated into complete plant extraction production lines, it also serves pharmaceutical, chemical, food and beverage sectors, securing consistent quality for botanical extracts and finished products. As a manufacturer of full plant extraction systems, we deliver custom mixing tanks equipped with tailored agitators and impellers. These vessels handle herbal slurries, extraction solvents and concentrated extracts, ensuring stable mass transfer and uniform mixing for plant raw materials. This guide walks you through the structure, working principle, selection criteria, maintenance and troubleshooting of mixing tanks to help you pick the right mixing solution for your extract production.
Single tank CIP
It serves as the main pressure or atmospheric vessel and can be fabricated into different shapes. Most commonly, it is a hollow cylinder as the containment vessel for herbal raw materials, solvent mixtures and extract intermediates.
Agitator
Tangential blades or stirring shafts mounted inside the tank assembly. It rotates to create fluid movement and fully disperse plant fiber and solid particles in botanical slurries.
Motor
The power core, driving the agitator at adjustable preset speeds to match different viscosity characteristics of plant extraction feed liquid.
Baffles
Plate or rod-type internal fittings inside the tank. They alter the flow field to eliminate vortex, improve mixing efficiency and prevent sedimentation of plant solid residues.
Inlet/Outlet
Material transfer nozzles and pipelines for feeding raw botanical materials, adding extraction solvents and discharging mixed intermediate extracts.

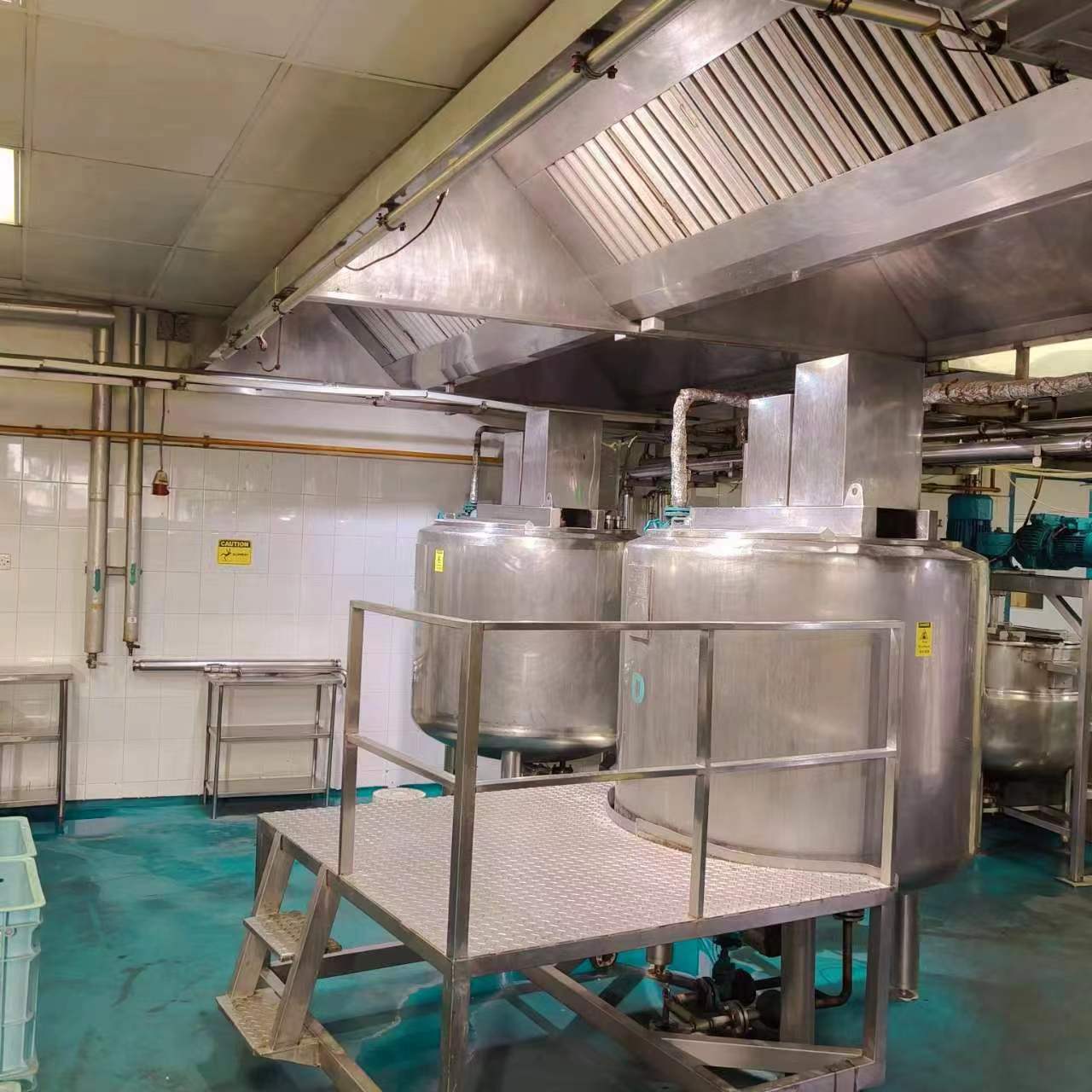

Stainless Steel Mixing Tanks
Highly popular in hygienic production fields. Featuring solid durability, corrosion resistance and low surface porosity, they effectively avoid microbial contamination. This type of tank is the preferred option for GMP plant extraction, pharmaceutical and food-grade production, where sanitation is the top priority.
Industrial Mixing Tanks
Engineered for heavy-duty working conditions, suitable for chemical, mining, energy and harsh botanical extraction processes. They withstand high temperature and high pressure, equipped with lining or special alloy materials, customized to cope with corrosive extraction solvents and severe working environments.
How Does a Mixing Tank Work?
Mixing tanks rely on mechanical agitation to achieve high-efficiency material blending. Agitators can be center-mounted or side-entered, running at variable speeds to handle diverse botanical materials. The liquid viscosity, tank volume and impeller design are key parameters that regulate mixing performance in plant extraction workflows.
Chemical Industry
Mixing tanks are used for large-volume blending of chemical liquids, suspensions and reagents. Properly designed vessels enable safe mixing of hazardous or volatile chemicals and maintain target concentrations.
Food and Beverage Industry
Manufacturers use mixing tanks for blending sauces, seasonings and dairy products. Uniform texture, flavor and physical stability of finished goods are critical requirements in this sector.
Pharmaceuticals
In pharmaceutical manufacturing, mixing tanks blend active pharmaceutical ingredients with excipients to obtain homogeneous mixtures. Most units are custom-built to meet strict regulatory standards, maintain hygienic conditions and control cross-contamination risks.
Plant Extraction
As key equipment on botanical extraction lines, mixing tanks handle herbal slurry preparation, solvent blending, extract homogenization and intermediate concentrate mixing. Specially designed impellers stop plant fiber sedimentation, strengthen mass transfer during extraction and reduce batch differences of natural extracts. GMP-compliant tanks with built-in CIP systems are widely adopted for natural flavors, herbal ingredients and cosmetic raw material production to prevent cross-contamination.
Improved Efficiency：Well-designed mixing tanks shorten mixing cycles and enhance homogeneity of botanical extracts, helping improve overall yield of the whole extraction line.
Reduced Costs：Premium tanks require less maintenance and fewer production shutdowns, delivering better long-term economic benefits for plant extract manufacturers.
Uniformity：Consistent product quality across batches is guaranteed, which is extremely vital for food processing, pharmaceutical and natural plant extract industries.
The tank capacity must match your processing batch size to avoid overflow or insufficient mixing. Options range from small lab-scale tanks to large industrial vessels for continuous plant extraction production.
The tank shell material is selected based on your mixing media. Stainless steel or PP plastic are common options. Tanks for corrosive extraction solvents need high-grade resistant materials.
Impeller type directly affects mixing performance. High-shear paddles fit emulsification processes, while axial flow impellers work better for gentle homogenization of plant slurries.
Regular cleaning and maintenance extend tank service life and minimize contamination risks. Periodically inspect tank exterior, agitator, shaft and sealing components. Cleaning methods vary by processed materials. CIP (Clean-in-Place) is widely adopted in hygienic plant extraction, food and pharmaceutical production lines.
We provide custom mixing tanks to match unique requirements of plant extraction and other sectors. Customization supports high-temperature mixing, anti-corrosion solvent mixing and seamless integration into your full botanical production line.
Inconsistent Mixing
Usually caused by improper agitator speed or unsuitable impeller geometry. Adjust mixing parameters to solve uneven distribution and plant solid sedimentation.
Tank Integrity and Leaks
Routine inspection and timely seal replacement can prevent leakage failures.
Clogging
Pre-treatment of raw materials before feeding is essential to avoid blockage caused by plant fibers and solid residues.
How to Optimize the Performance of a Mixing Tank
Optimize slurry viscosity, stirring speed, impeller structure and baffle layout for optimal mixing results. Routine maintenance including agitator cleaning and seal inspection also matters for stable plant extraction production.
Proper Ventilation
Ensure adequate ventilation around the tank when handling volatile extraction solvents.
Emergency Shutdown
Install emergency stop devices to prevent accidents triggered by agitator malfunction.
Regular Inspections
Conduct periodic safety assessment of tank body, motor and agitator assembly.
The industry trend focuses on upgraded tank design equipped with smart sensors for real-time monitoring of viscosity and concentration, especially valuable for plant extraction. In the coming years, higher energy efficiency and automation will be realized, supporting intelligent plant extract production.
What materials are used for mixing tanks?
Depending on application and processed media, mixing tanks can be made of stainless steel, plastic (PE, PP) or special alloys.
How should mixing tanks be properly cleaned?
Manual scrubbing or automated CIP (clean-in-place) systems can be used. CIP enables internal circulation of cleaning liquid without tank disassembly, which is ideal for plant extraction hygienic production.
Which industries commonly use mixing tanks?
Mixing tanks are widely used in pharmaceuticals, food & beverage, chemicals, cosmetics, wastewater treatment and plant extract manufacturing.
How long do mixing tanks generally last?
Service life depends on material, maintenance and operating conditions. Properly maintained stainless steel mixing tanks can serve for decades, while plastic tanks have a shorter lifespan.
Can mixing tanks be customized?
Yes. We manufacture custom mixing tanks according to client specifications, including capacity, material, agitator configuration, and can integrate them into complete plant extraction production lines.
What factors determine the price of a mixing tank?
The price depends on tank volume, construction material, design complexity, and optional add-ons such as smart sensors and heating/cooling jackets.
Selecting the right mixing tank is crucial to achieve the desired operational efficiency and consistent product quality. As a professional manufacturer of complete plant extraction production lines, we provide GMP-compliant custom mixing tanks tailored for herbal slurry mixing, solvent blending and botanical extract homogenization. Our mixing tanks are equipped with optimized agitators and CIP cleaning systems to reduce fiber sedimentation and batch discrepancies. Click to explore our mixing tank portfolio and get your customized solution for your plant extraction project.
