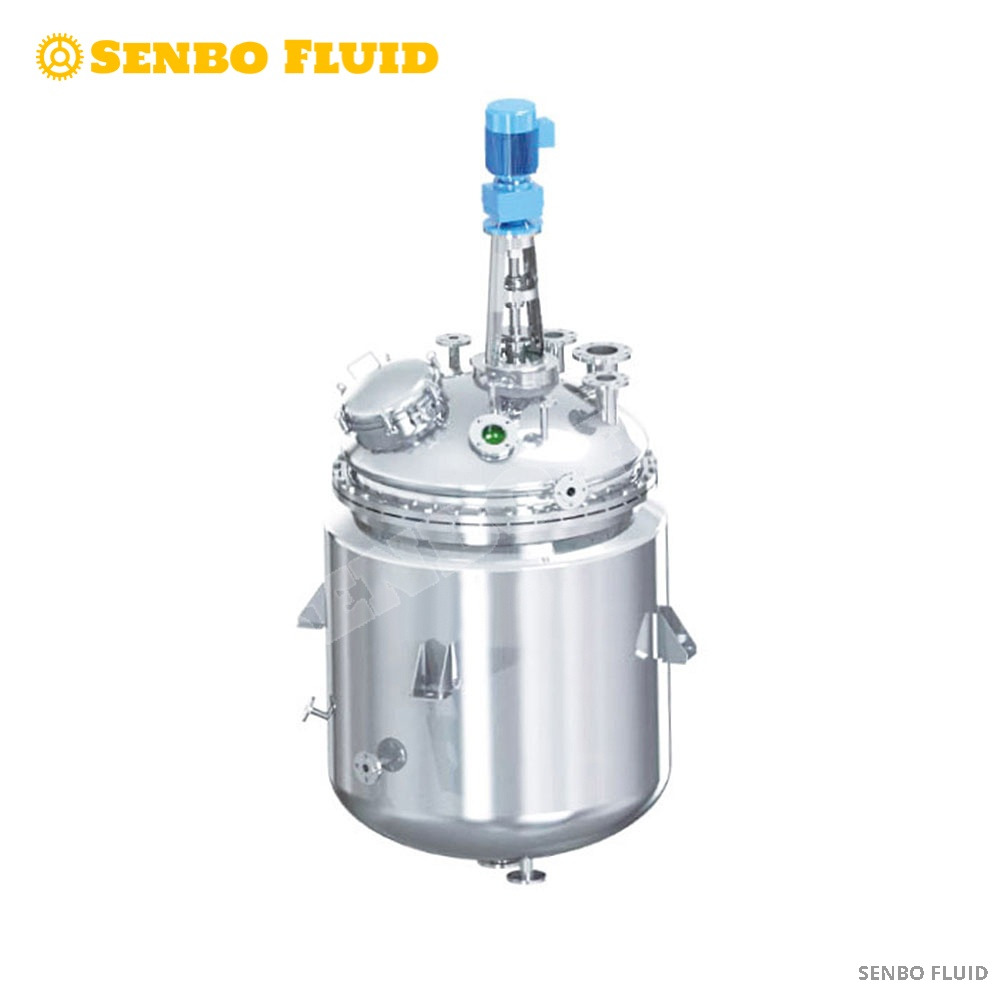

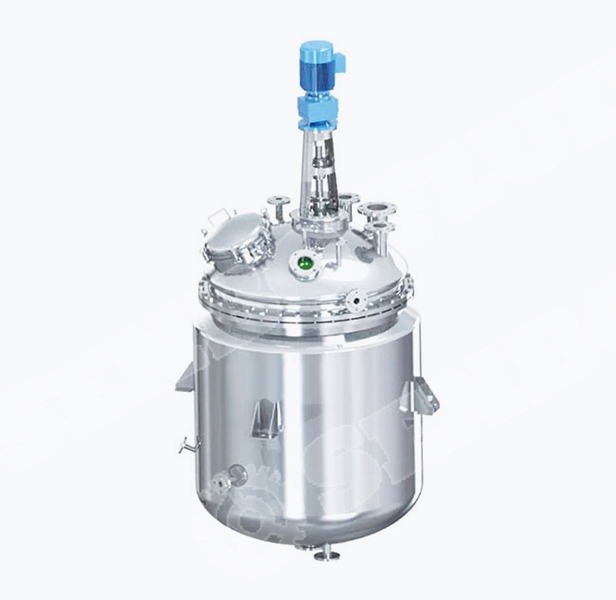

Jacketed stainless steel reactor

WJG series containers are suitable for use in pharmaceutical, bioengineering, fine chemicals, chemical synthesis and other industries. The materials are all made of SUS304 or SUS316L. The tank body is provided with a jacket, and the jacket structure is divided into three types: a standard jacket, an outer coil jacket, and a rice honeycomb honeycomb jacket. It can be heated and cooled, the inner surface is mirror polished, there is no sanitary corner, and the fully enclosed design ensures that the material is always under sterile condition. The head (taper) is spin-processed and GMP compliant. The mixing device adopts sanitary mechanical seal, the container is insulated with polyoxyester or aluminum silicate, the interface adopts IOS standard quick-fit clamp type, which is convenient and hygienic. The ferry is processed by spinning, and the outer surface is polished, sandblasted, frosted or cold. Rolling the original color matt and other forms, so that the container can display its excellent quality in any venue. The equipment is equipped with a sterile air respirator, CIP cleaning nozzle, sight glass, and French-style quick opening manhole.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Overview

WJG series containers are suitable for use in pharmaceutical, bioengineering, fine chemicals, chemical synthesis and other industries. The materials are all made of SUS304 or SUS316L. The tank body is provided with a jacket, and the jacket structure is divided into three types: a standard jacket, an outer coil jacket, and a rice honeycomb honeycomb jacket. It can be heated and cooled, the inner surface is mirror polished, there is no sanitary corner, and the fully enclosed design ensures that the material is always under sterile condition. The head (taper) is spin-processed and GMP compliant. The mixing device adopts sanitary mechanical seal, senbofluid the container is insulated with polyoxyester or aluminum silicate, the interface adopts IOS standard quick-fit clamp type, which is convenient and hygienic. The ferry is processed by spinning, and the outer surface is polished, sandblasted, frosted or cold. Rolling the original color matt and other forms, so that the container can display its excellent quality in any venue. The equipment is equipped with a sterile air respirator, CIP cleaning nozzle, sight glass, and French-style quick opening manhole.

Product Structure

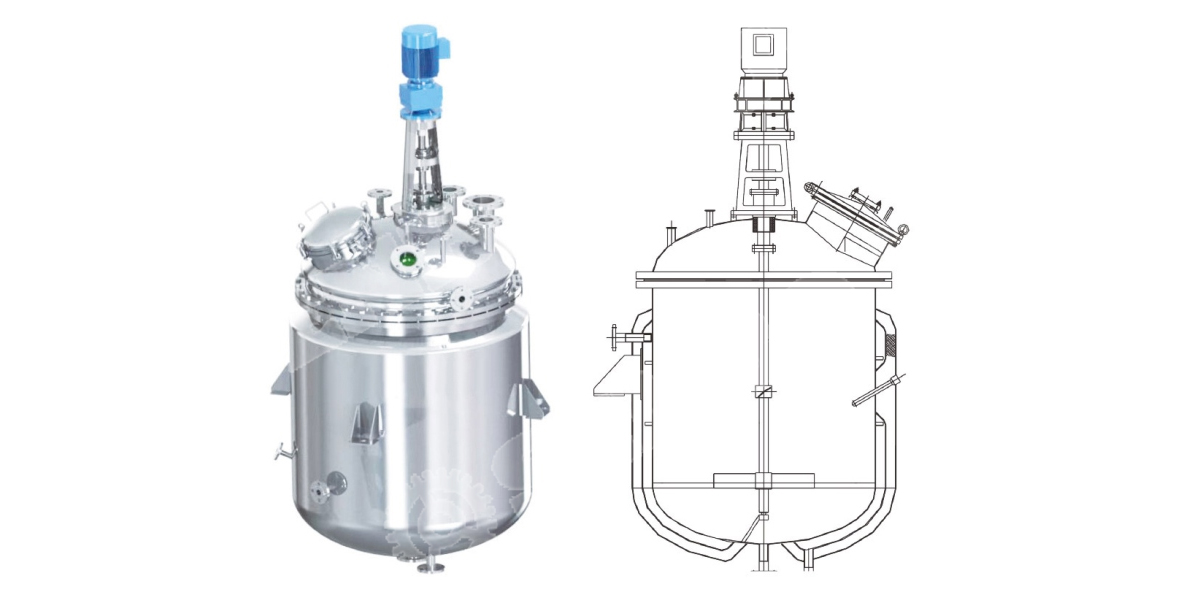

This equipment is designed as a vertical cylindrical vessel with standard elliptical or dished heads at the top and bottom. Both the cylinder and the bottom head are equipped with a jacket and insulation layer, and the unit is configured with either mechanical or magnetic stirring capabilities.

Technical Specifications

1.The jacket can be connected to either steam or cooling water to meet the requirements of different reaction processes.
2.All stainless steel parts in contact with materials are mirror-polished, enabling CIP and SIP, and comply with sanitary standards.
3.The jacket is covered with an insulation layer made of high-quality aluminum silicate, providing excellent thermal insulation.
4.Equipped with high-quality mechanical seals specifically designed for reactors, ensuring minimal leakage and adaptability to various reaction conditions.
5.The specially designed baffle not only enhances mixing efficiency but also completely resolves difficulties in cleaning.
6.A variety of agitation methods are available for users to choose from.

Technical Parameters

Model	WJG300	WJG400	WJG500	WJG600	WJG1000	WJG2000	WJG3000	WJG5000
Volume (L)	300	400	500	600	1000	2000	3000	5000
Vessel Op. Pre. (MPa)	≤0.2
Jacket Op. Pre. (MPa)	≤0.3
Motor Power (Kw)	0.55	0.55	0.75	0.75	1.1	1.5	1.5	2.5
Stirring Speed (r/m)	36~53
Heat Exchanging Area (㎡)	2	2.4	2.7	3.1	4.5	7.5	8.6	10.4
Diameter (mm)	900	1000	1150	1150	1400	1500	1700	2000
Height (mm)	1800	1900	2200	2300	2600	2900	3200	3700
