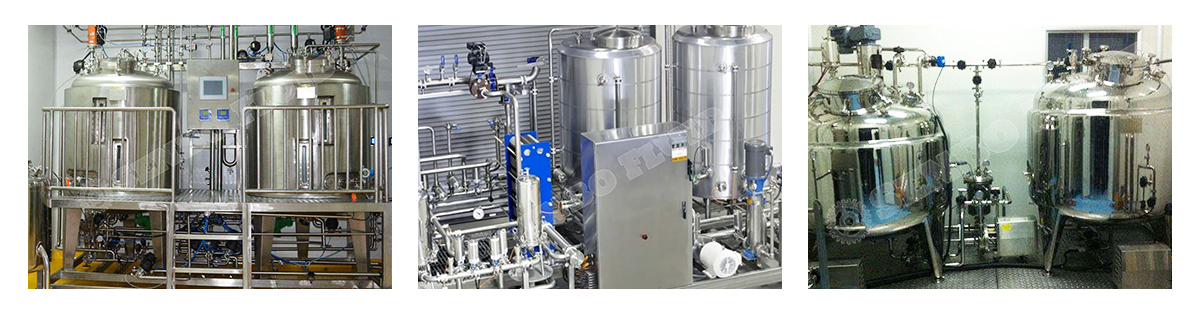

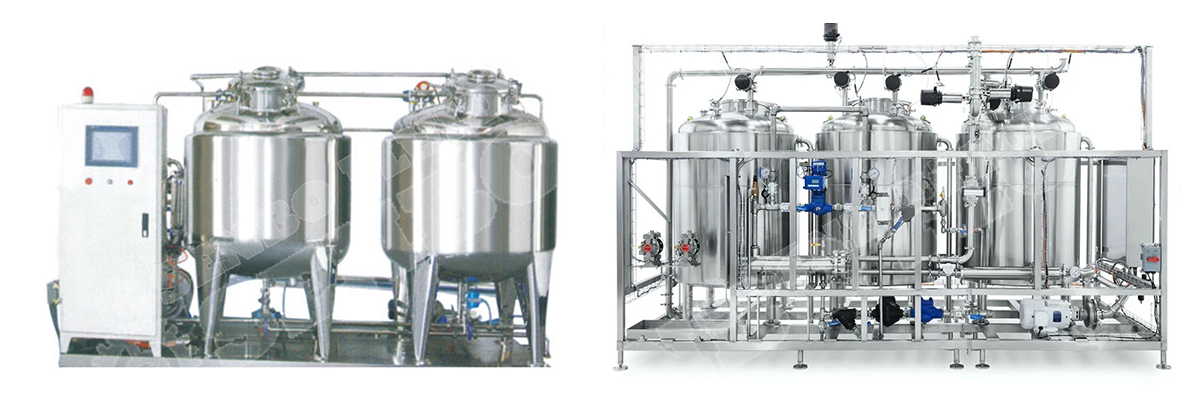

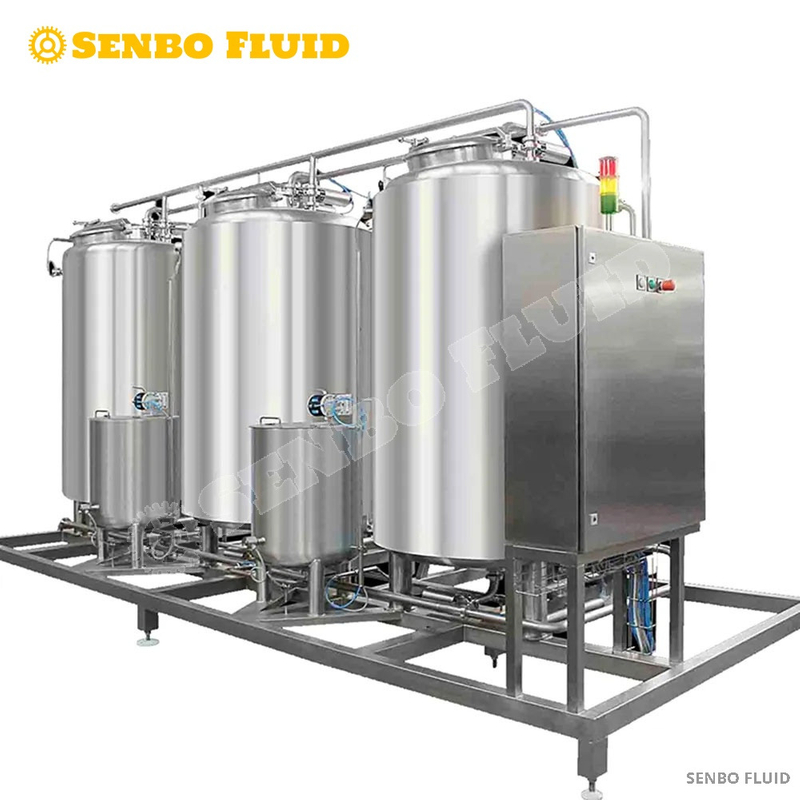

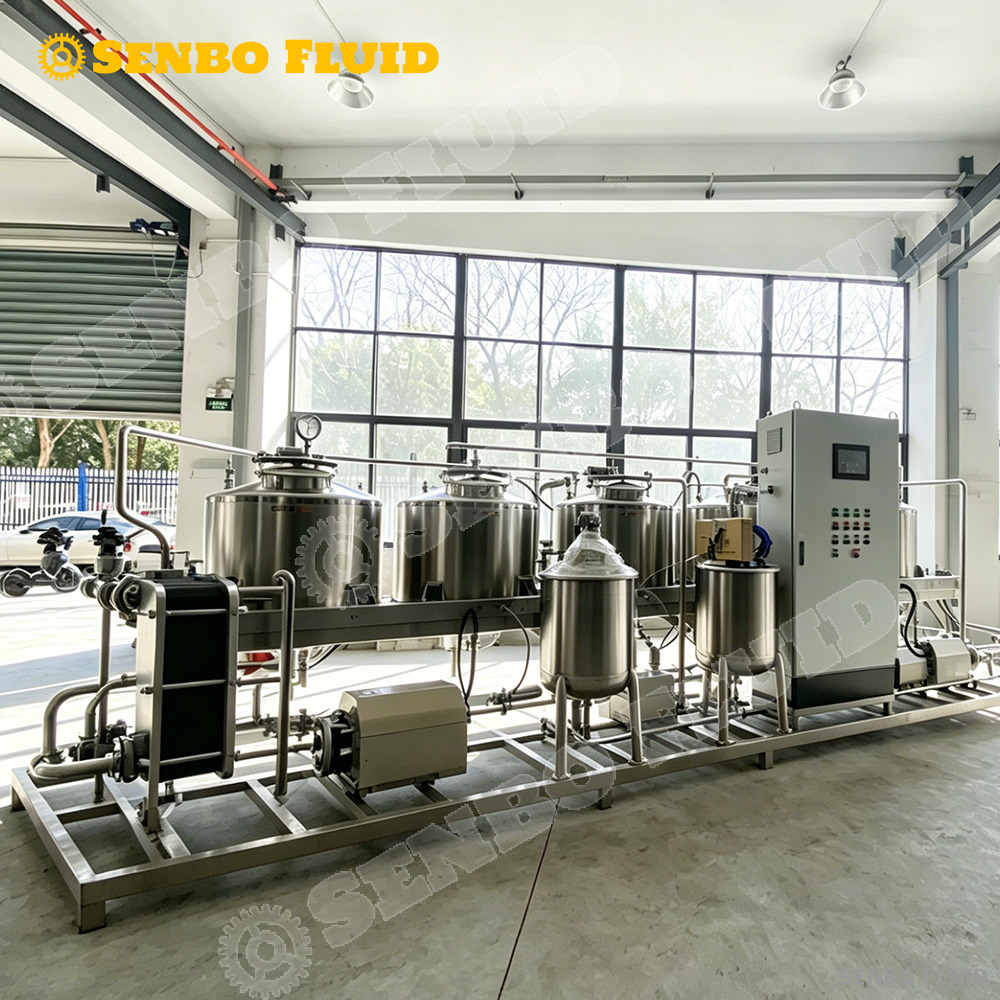

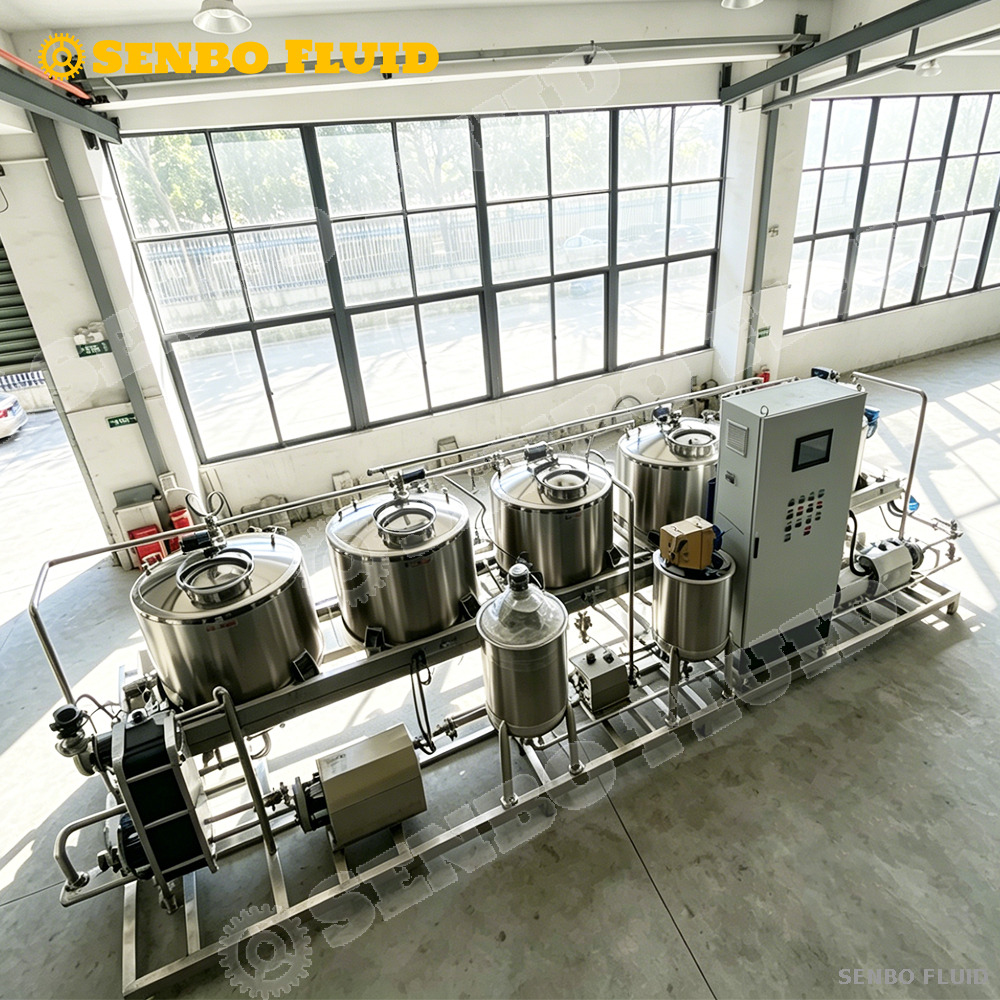

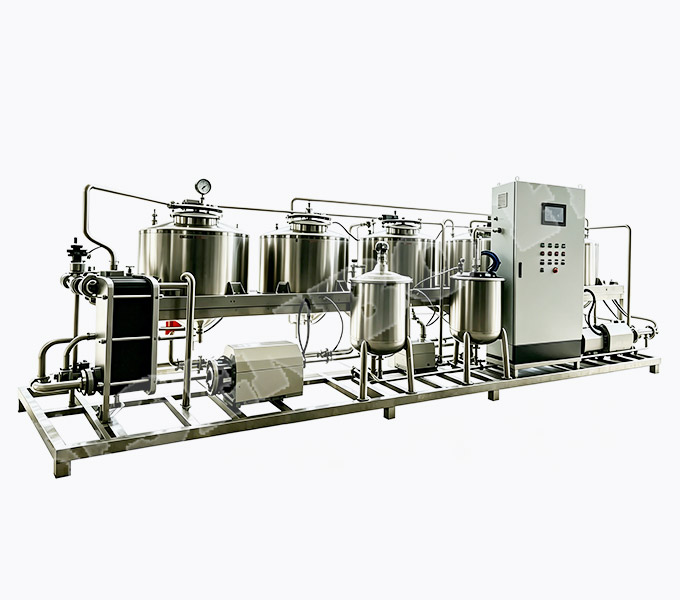

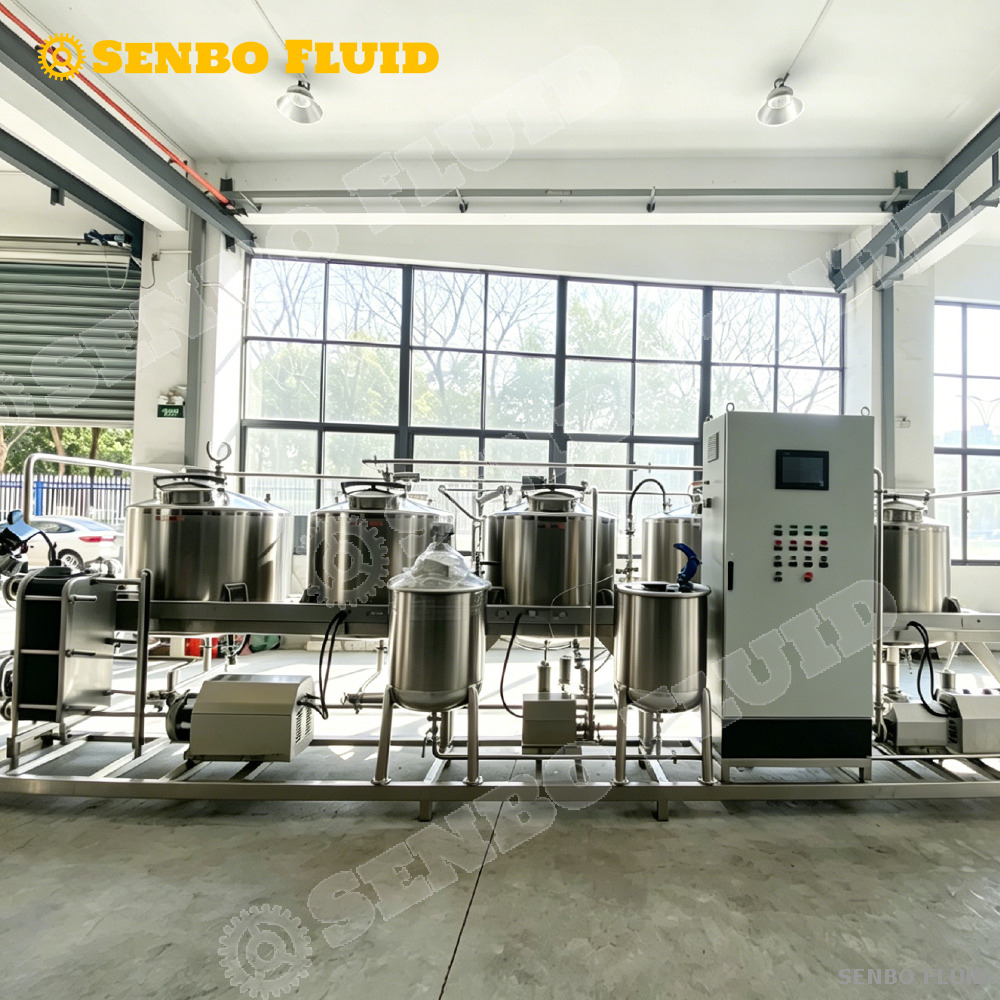

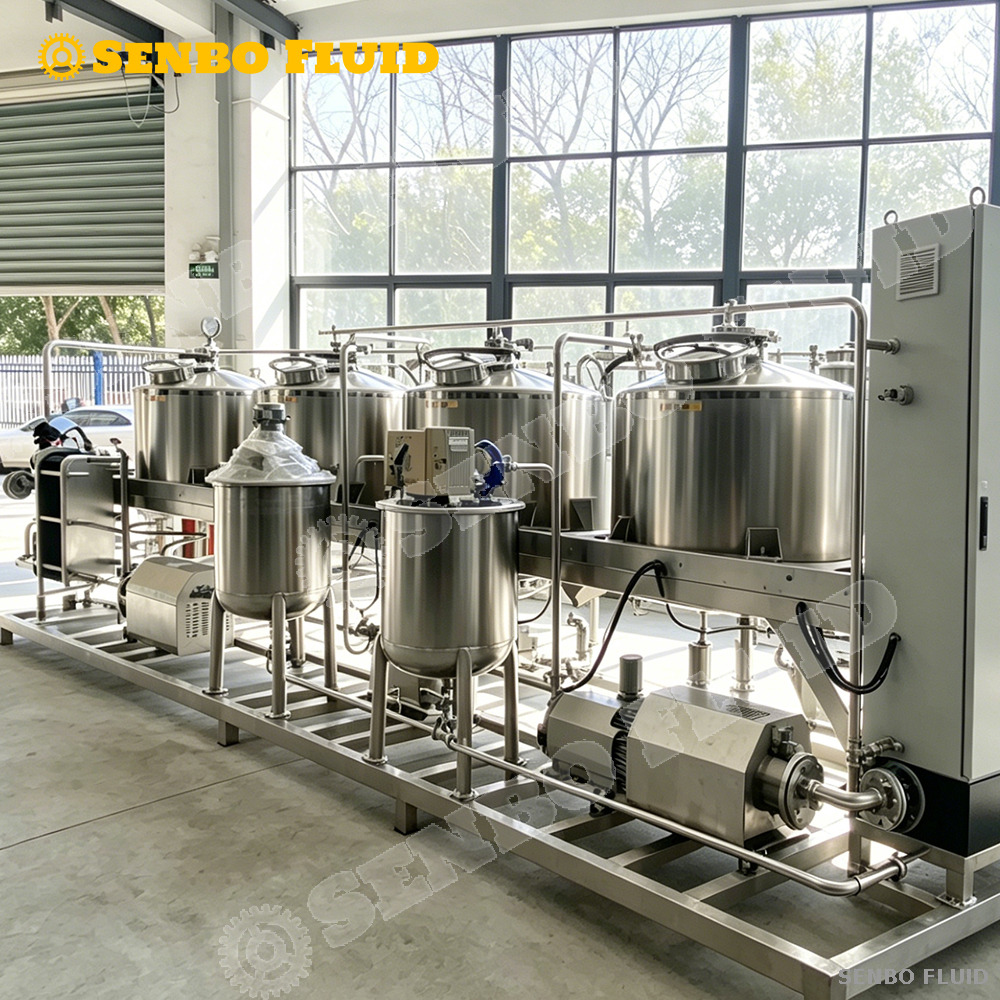

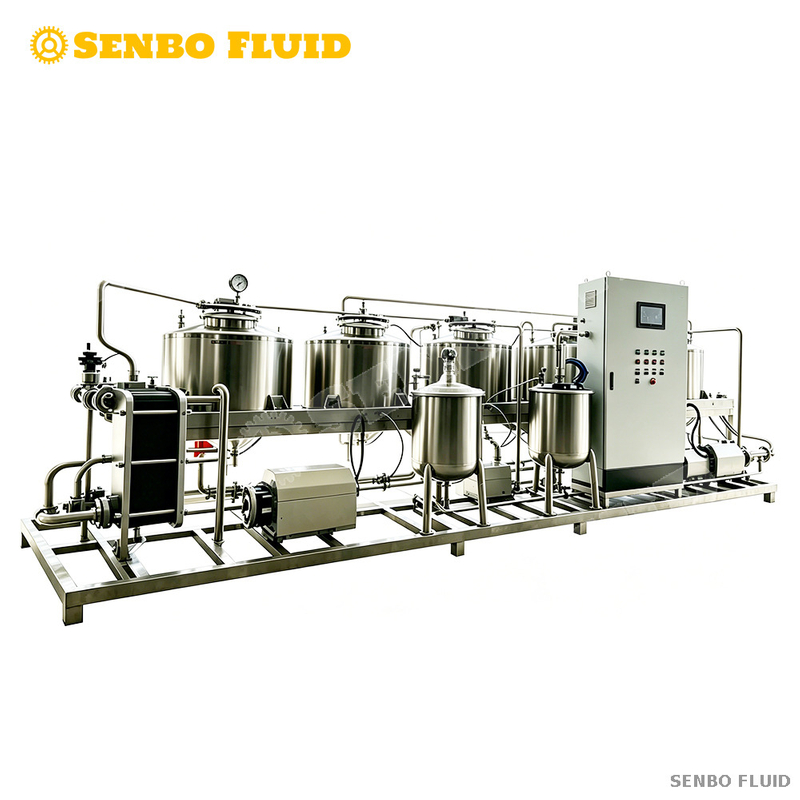

CIP cleaning system
The CIP cleaning unit is a safe and automatic cleaning system that does not decompose production equipment and can be easily introduced to all food, beverage and pharmaceutical plants.
CIP cleaning equipment not only cleans the machine but also controls the cleaning of microorganisms.

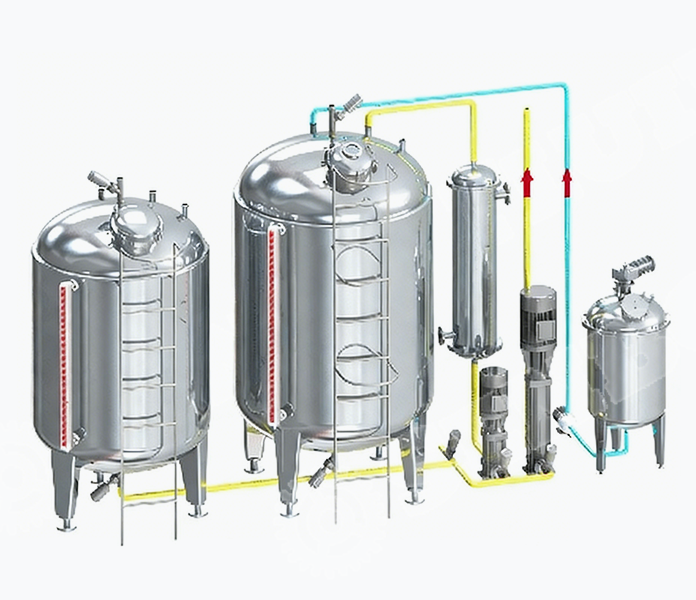

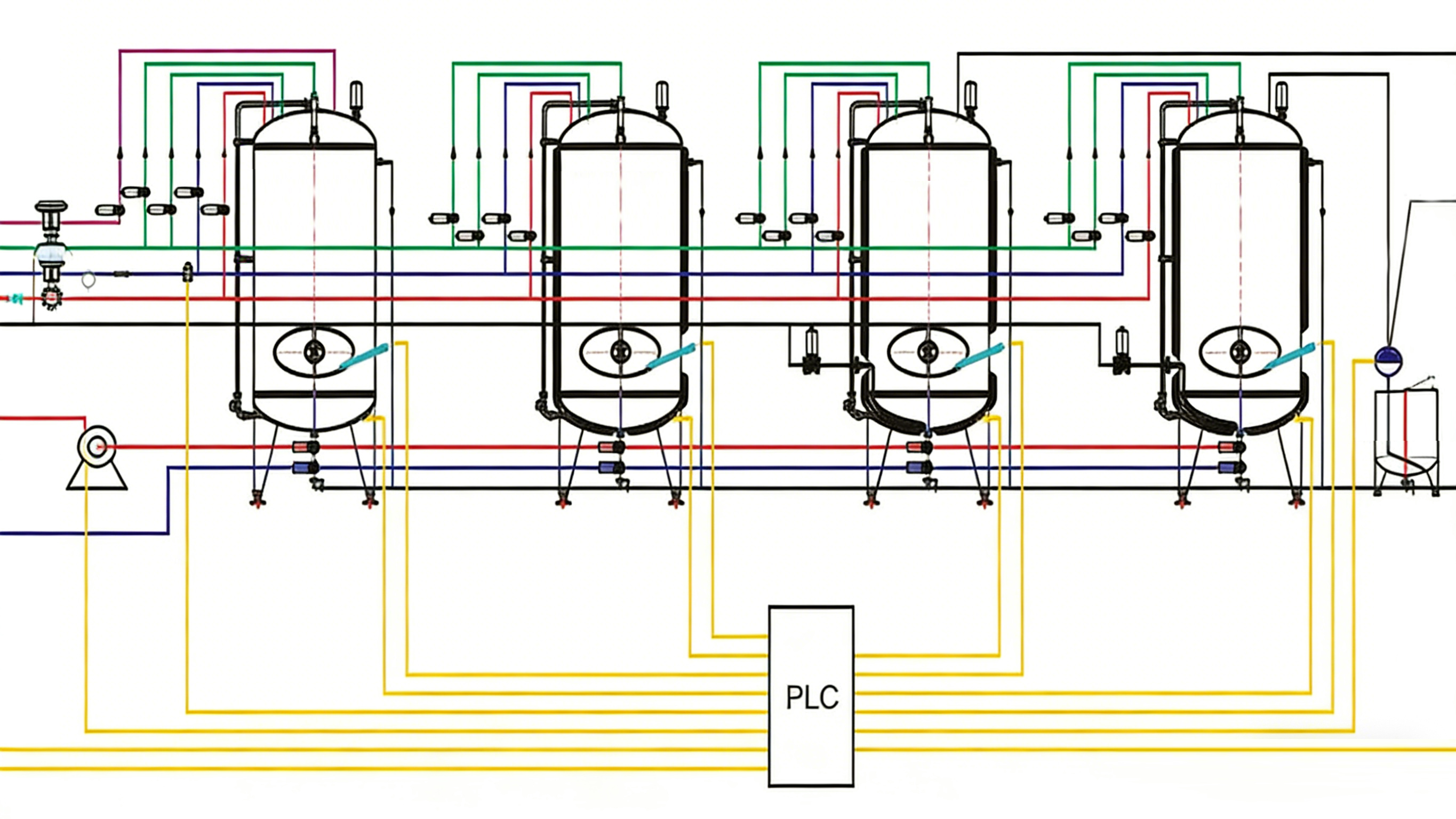

Is to control the opening and closing of the steam valve by measuring the temperature sensor; to control the opening and closing of the water valve by measuring the level of the liquid through the pressure transmitter; Senbofluid to control the pneumatic diaphragm pump dosing acid/ alkali by measuring the conductivity meter. The overall control process is water filling to the tank --acid tank (alkali tank ) PH adjust- water heating - hot water washing - alkali washing - hot water washing - acid washing - hot water washing.
1.In-place cleaning, easy to operate, safe, low labor intensity, high work efficiency.
2.Clean thoroughly, achieving disinfection sterilization, and guaranteeing the sanitary requirements, is helpful to improve product quality.
3.Pipelining type cleaning to reduce the occupying room.
4.Detergent can be recycled, high utilization ratio saving steam and water.
5.Less wearing parts, equipment, long service lifeSuitable for large, medium and small equipment cleaning.
6.Cleaning can be programmed and automated.
| Parameters/Specifications | CIP500 | CIP800 | CIP2000 | CIP10000 |
|---|---|---|---|---|
| Raw Acid Tank Capacity (L) | 50 | 80 | 100 | 200 |
| Raw Alkali Tank Capacity (L) | 50 | 80 | 100 | 200 |
| Acid Solution Tank Capacity (L) | 500 | 800 | 2000 | 10000 |
| Alkali Solution Tank Capacity (L) | 500 | 800 | 2000 | 10000 |
| Hot Water Tank Capacity (L) | 500 | 800 | 2000 | 10000 |
| Clean Water Tank Capacity (L) | 500 | 800 | 2000 | 10000 |
| Circulation Pump (T/h) | 1.5 | 3.0 | 5.0 | 20.0 |
| Cleaning Pump (T/h) | 3.0 | 5.0 | 10.0 | 20.0 |
| Heat Exchanger (m²) | 3.0 | 5.0 | 7.0 | 15.0 |
Experienced in the supply of industrial tank equipment.
Familiar Pharmaceutical, food, and chemical industries processing projects
Strong customization and project coordination ability
Professional communication and fast response
Explosion-proof design

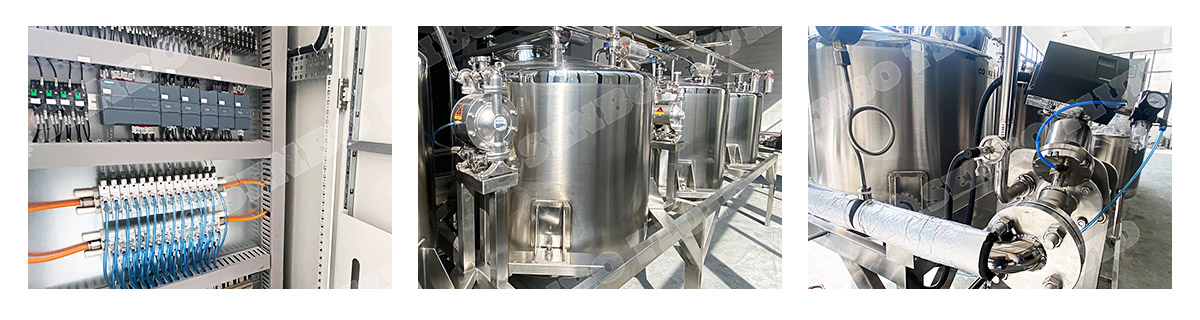

PLC automatic control system
CIP cleaning system
Vacuum or pressure vessel design
(steam, purified water, circulating water, chilled water, compressed air, nitrogen, vacuum, heating, etc.)
We can supply individual equipment or a complete turnkey extraction solution.
We provide complete technical support for extraction projects, including:
Process consultation and equipment selection
Process flow design and layout support
Equipment manufacturing and factory testing
Installation and commissioning guidance
Operator training and after-sales service
Export standard wooden case or steel frame
Suitable for sea and land transportation
Delivery terms: EXW / FOB / CIF
Process flow suggestion
Technical proposal
Budget estimation
Turnkey project solution
