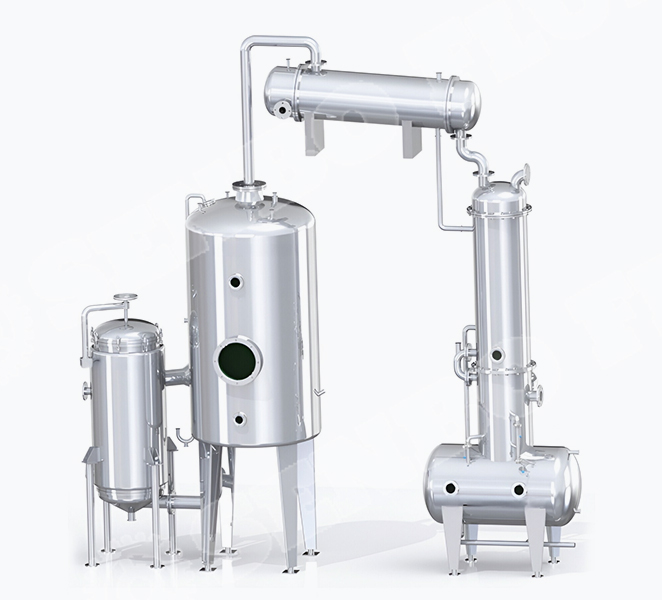

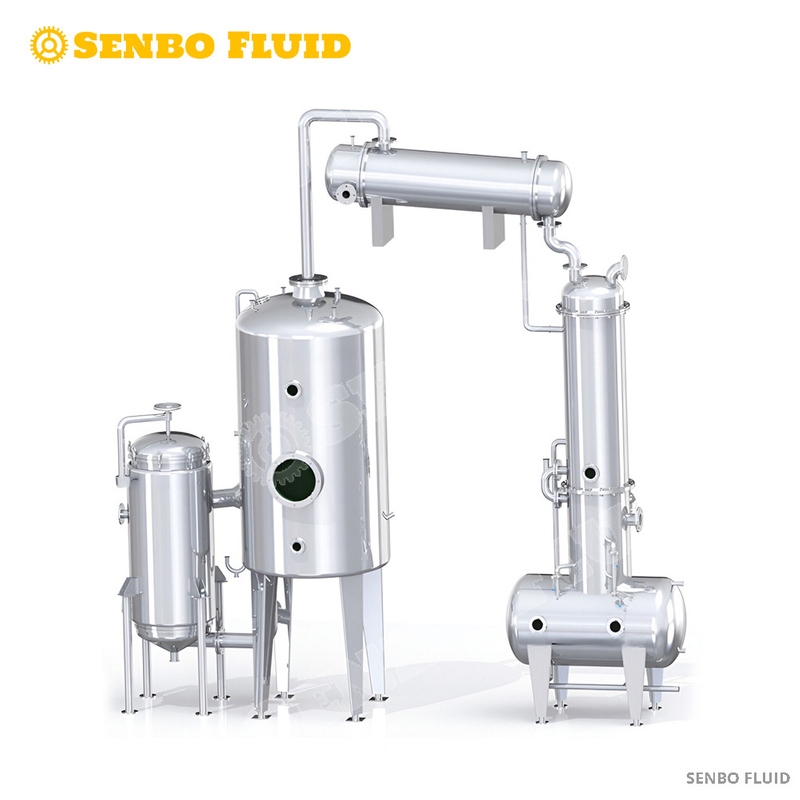

Multi-functional Alcohol Recycling Contractor
The multifunctional alcohol recovery tower is a core environment-friendly and energy-saving solvent recovery device used in the production of pharmaceutical, food fermentation, fine chemical, coating, daily chemical and other industries. It is mainly designed for the efficient recovery, senbofluid purification and recycling of alcohol solvents (such as ethanol, methanol and isopropanol), and can also meet the multiple process requirements of distillation, concentration and refining of low-boiling organic solvents. Relying on the characteristics of multi-function, high recovery rate and strong adaptability, it has become a key equipment for reducing solvent waste, lowering environmental emissions and controlling production costs in the production process.

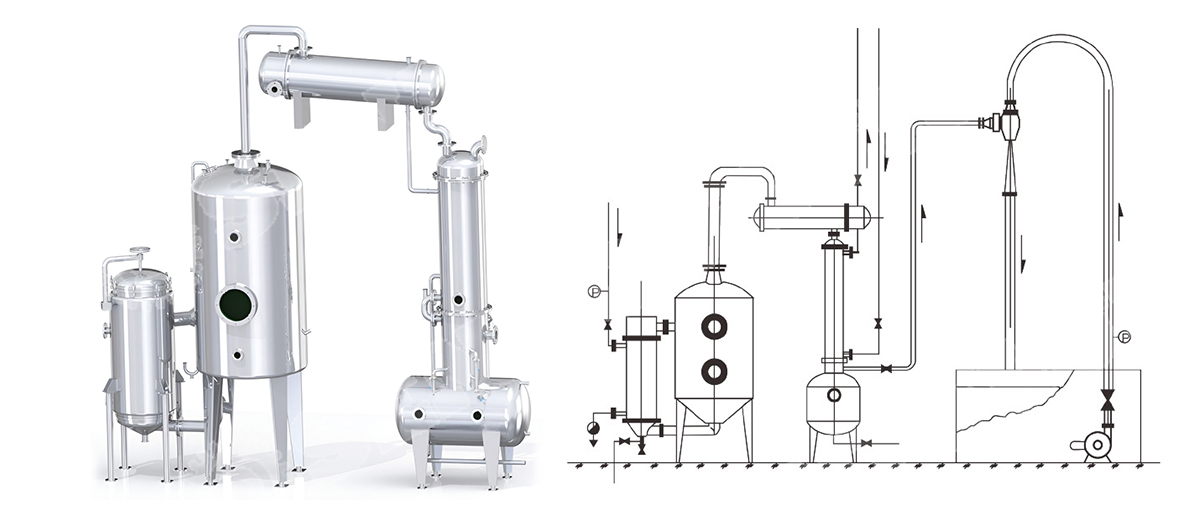

Heating kettle
The heating system mainly adopts steam or electric heating, featuring precise temperature control and high heat exchange efficiency.
Rectification tower body
The tower body is usually equipped with high-efficiency packing or tower trays to increase the gas-liquid two-phase contact area and separation efficiency, and reduce material residence time.
Condenser and Cooler
The condensation and cooling system enables the rapid liquefaction and collection of vaporized alcohols to ensure recovery efficiency.
Liquid receiving tank
The equipment is mainly constructed from 304/316L stainless steel, which meets the hygienic grade requirements of the food and pharmaceutical industries, featuring excellent corrosion resistance and easy cleanability.
Vacuum system (optional)
The vacuum system enables vacuum distillation, which is suitable for the recovery and treatment of heat-sensitive alcohol-containing materials and prevents material decomposition and deterioration at high temperatures.
Control system
The control system can be configured with semi-automatic or fully automatic operation modes to achieve precise regulation and real-time monitoring of parameters such as temperature, pressure and flow rate, reduce the intensity of manual operation, and ensure the stability of the production process and the consistency of product purity.
Alcohol recovery: The recycling capacity is large, and the vacuum process is used to improve the process of the equipment. The recovery rate can reach 95%, the alcohol consumption rate is less than 5%, and the energy consumption is reduced by 30%. It has the characteristics of small investment and high recycling efficiency.
Concentrated liquid material: the use of external circulation and vacuum negative pressure evaporation method, evaporation speed, high concentration (1.3-1.4); simple operation, small footprint, beautiful appearance, heater, evaporator, insulation complete factory The thermal insulation outer layer is made of stainless steel sheet to form a protective layer, which meets the requirements of GMP standards.
| Specification/Model | JN-500 | JN-1000 | JN-1500 | |
|---|---|---|---|---|
| Evaporation (Kg/h) | 500 | 1000 | 1500 | |
| Recycling alcohol (Kg/h) | 400 | 800 | 1200 | |
| Recovery concentration(%) | 70-85 | |||
| Use pressure (Mpa) | 0.15-0.25 | |||
| 度Evaporation temperature (°C) | 60-75 | |||
| Vacuum degree(mmHg) | -0.06 | |||
| Concentration | 1.2-1.4 | |||
| Dimensions (mm) | (L) | 2000 | 2200 | 2500 |
| (W) | 1000 | 1200 | 1300 | |
| (H) | 3000 | 3300 | 3500 | |
Experienced in supplying industrial recovery tower equipment.
Familiar Pharmaceutical, food, and chemical industries processing projects
Strong customization and project coordination ability
Professional communication and fast response
Explosion-proof design
PLC automatic control system
CIP cleaning system
Vacuum or pressure vessel design
(steam, purified water, circulating water, chilled water, compressed air, nitrogen, vacuum, heating, etc.)
We can supply individual equipment or a complete turnkey extraction solution.
We provide complete technical support for extraction projects, including:
Process consultation and equipment selection
Process flow design and layout support
Equipment manufacturing and factory testing
Installation and commissioning guidance
Operator training and after-sales service
Export standard wooden case or steel frame
Suitable for sea and land transportation
Delivery terms: EXW / FOB / CIF
Process flow suggestion
Technical proposal
Budget estimation
Turnkey project solution
