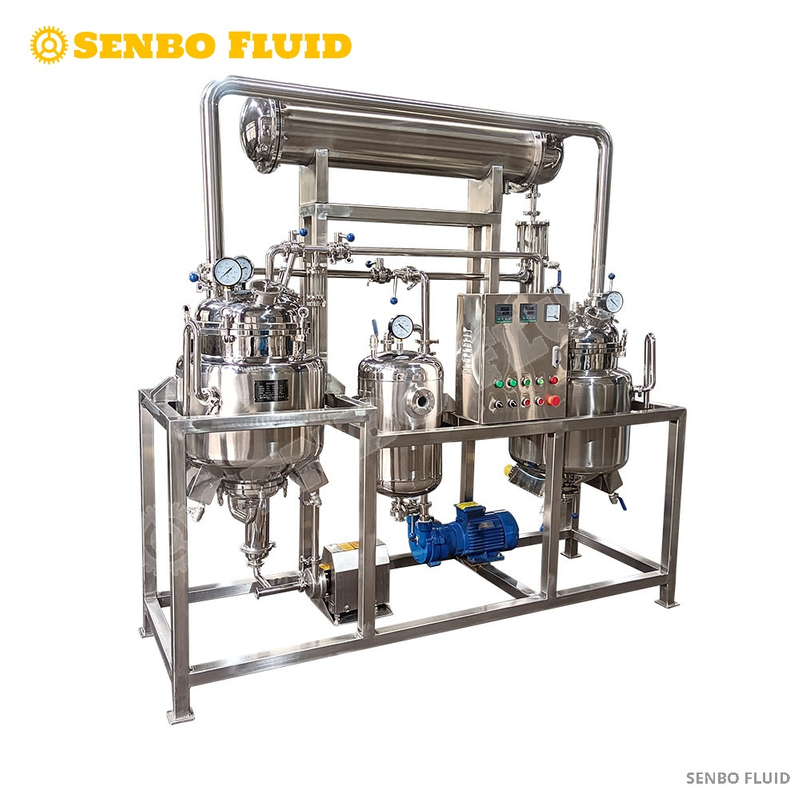

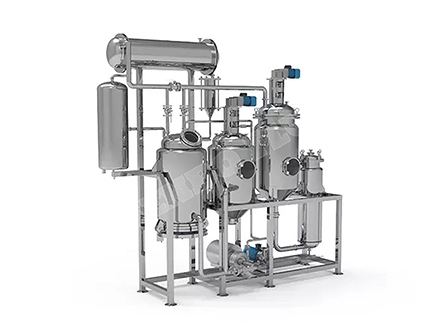

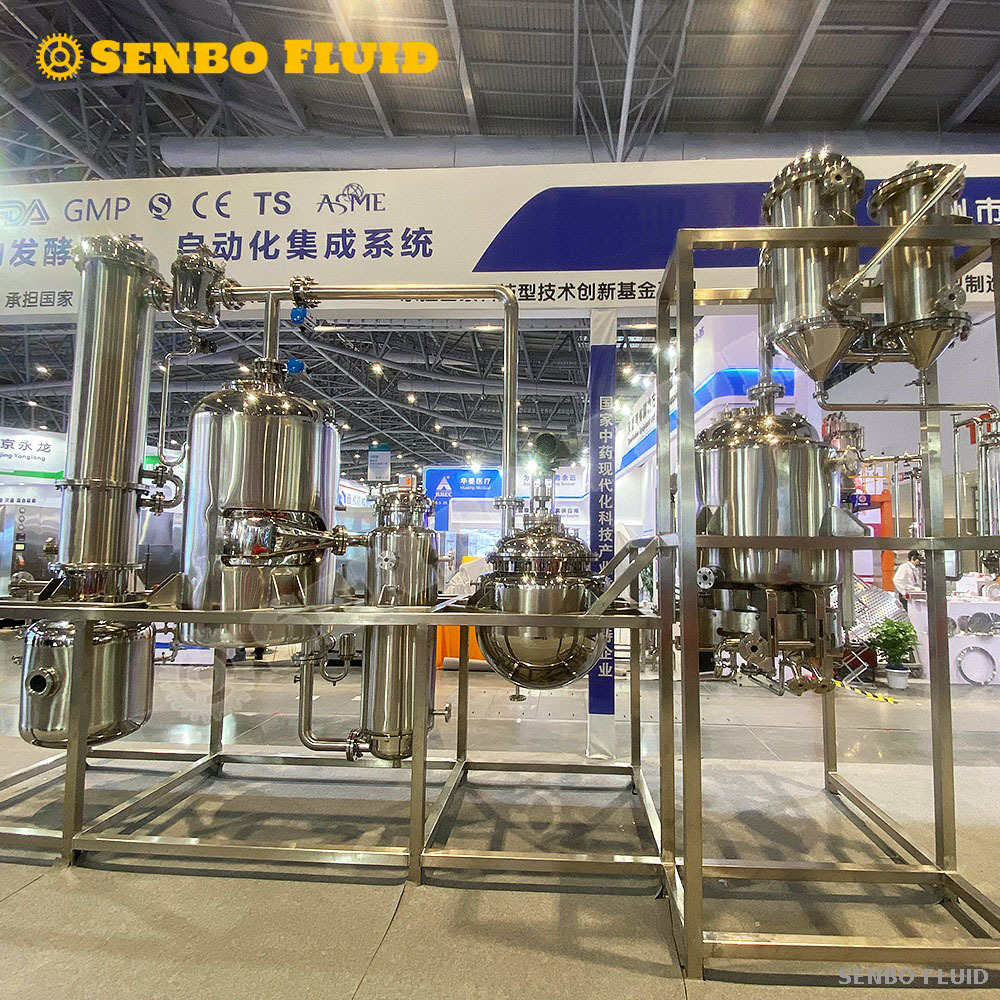

Senbo Fluid Compact Extraction System – Small-Scale, High-Efficiency Botanical Extraction Unit
Designed for R&D labs, pilot plants, and small-batch producers, the Senbo Fluid Compact Extraction System delivers industrial-grade extraction performance in a space-saving, user-friendly package. Ideal for herbal, cannabis, food, and nutraceutical applications, this modular unit ensures precise control over temperature, pressure, solvent flow, and residence time—enabling consistent, high-yield extracts with minimal operational footprint.
Modular & Scalable Design
01
Easily integrate additional modules (e.g., concentration, filtration, solvent recovery) as your production needs grow.
Precise Process Control
02

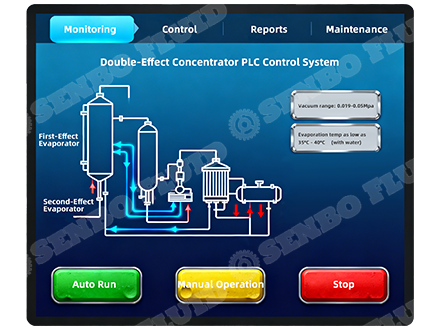

PLC/HMI touch-screen interface
Real-time monitoring of temperature (±1°C), pressure, and flow rate
Programmable batch recipes for repeatability
Multi-Solvent Compatibility
03
Supports ethanol, waterand hydrocarbon-based extraction—fully compliant with GMP and safety standards.
High Extraction Efficiency
04
Patented dynamic circulation + static soaking dual-mode technology achieves >95% active compound recovery.
Compact Footprint
05
Fits in standard lab or small workshop spaces (as small as 2m × 1.5m).
Easy Cleaning & Maintenance
06

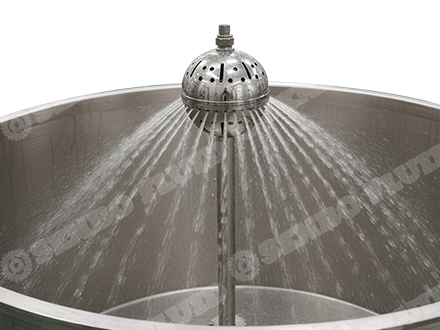

CIP (Clean-in-Place) ready; all wetted parts in SS304/SS316L or PTFE-lined for corrosion resistance.
| Specification/Model | Extraction Tank | Sediment tank | Single effect concentrator | Vacuum pump power(kw) | Sanitary pump power(kw) | Steam consumption(kg/h) | Dimension(L*W*H)(m) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Toltal volume(L) | Heating area(㎡) | Jacket pressure(Mpa) | Inside pressure(Mpa) | Toltal volume(L) | Heating area(㎡) | Motor power(kw) | Heating area(㎡) | Cooling area(㎡) | Motor power(kw) | |||||
| DNT-50 | 65 | 0.3 | 0.3 | Atm | 65 | 0.5 | 0.37 | 0.5 | 1.7 | 0.37 | 1.5 | 0.37 | 50 | 1.95*0.8*1.8 |
| DNT-100 | 110 | 0.52 | 0.3 | Atm | 130 | 0.7 | 0.37 | 0.85 | 2.0 | 0.37 | 1.5 | 0.37 | 100 | 2.45*0.8*2.35 |
| DNT-200 | 220 | 0.96 | 0.3 | Atm | 230 | 1.5 | 0.75 | 1.5 | 4.0 | 0.37 | 2.2 | 0.37 | 150 | 2.8*0.975*2.5 |
| DNT-300 | 350 | 1.12 | 0.3 | Atm | 350 | 2.0 | 0.75 | 2.3 | 5.0 | 0.37 | 2.2 | 0.37 | 200 | 3.2*1.05*2.6 |
| DNT-500 | 620 | 1.5 | 0.3 | Atm | 620 | 2.9 | 0.75 | 3.2 | 10 | 0.37 | 3.0 | 0.37 | 250 | 3.5*1.3*3.05 |

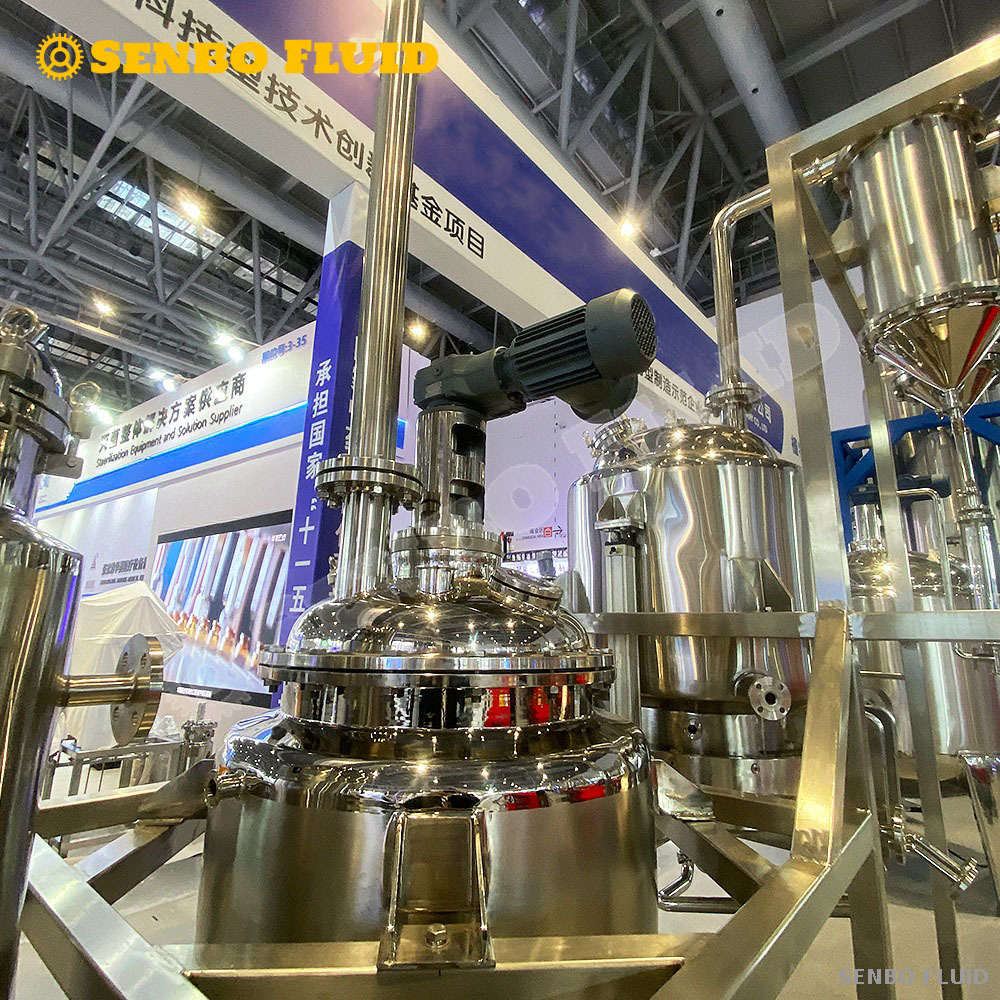

Main extraction skid (with heater, pump, condenser)
Scraping-type Concentration Equipment & recovery tank
PLC control Panel
Operation manual & safety documentation
1-year warranty + lifetime technical support
Need specific materials, automation level, explosion-proof design, or integration with existing systems?
→ Contact us today for a tailored solution!
Herbal medicine & TCM extract production
Cannabis/CBD/terpene isolation
Food flavor & natural colorant extraction
Cosmetic active ingredient R&D
Academic & pharmaceutical research
Built by Extraction Experts – Over 30 years of engineering experience in botanical processing equipment.
GMP-Compliant Design – Meets ISO, CE, and FDA material standards.
Fast Delivery – Standard units shipped within 30–45 days.
Global Support – Installation guidance, operator training, and remote troubleshooting included.
Explosion-proof design
PLC automatic control system
CIP cleaning system
Vacuum or pressure vessel design
(steam, purified water, circulating water, chilled water, compressed air, nitrogen, vacuum, heating, etc.)
We can supply individual equipment or a complete turnkey extraction solution.
We provide complete technical support for extraction projects, including:
Process consultation and equipment selection
Process flow design and layout support
Equipment manufacturing and factory testing
Installation and commissioning guidance
Operator training and after-sales service
Export standard wooden case or steel frame
Suitable for sea and land transportation
Delivery terms: EXW / FOB / CIF
Process flow suggestion
Technical proposal
Budget estimation
Turnkey project solution
