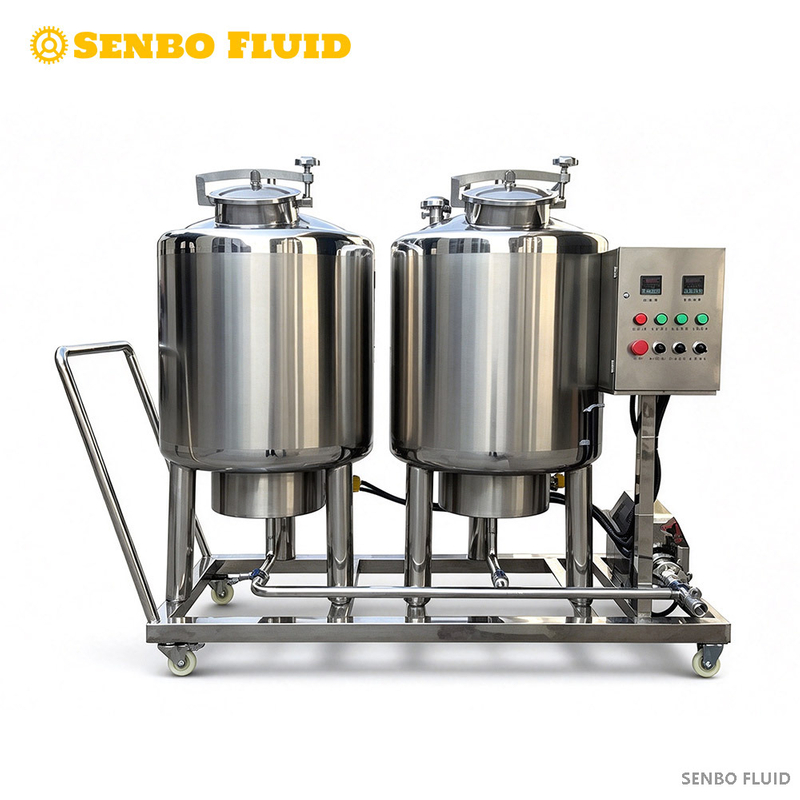

Small Mobile CIP Cleaning system
Our small mobile CIP cleaning system is a compact trolley-mounted Clean-in-Place unit. It integrates cleaning tank, sanitary centrifugal pump, heating module, piping, valves and control system on a stainless steel skid with braked casters.
The unit can be moved freely to different workstations in the workshop. **No disassembly of production equipment required**. It performs closed-loop circulating cleaning inside tanks, pipelines and process machinery. The system removes organic residues, oil, protein, sugar deposits, drug remnants and limescale through a predefined sequence: pre-rinse → caustic wash → intermediate rinse → acid wash (optional) → final rinse.
It eliminates blind spots and cross-contamination risks caused by manual disassembly cleaning. Fully compliant with GMP and food hygiene standards.
Ideal for small-scale production, pilot lines, laboratories and multi-workshop sites. No civil construction modification needed; simply connect power and water to start operation.
Cleaning fluid is heated in the CIP tank to target temperature. The sanitary pump delivers the solution to the interior of target equipment for circulating spray & hydrodynamic scouring. Combined chemical reaction and fluid shear force strip residues from inner walls. The spent fluid flows back to the CIP tank for circulation.
Standard customizable cleaning sequence
1.Pre-rinse: Flush loose bulk residues
2.Caustic circulation wash: High-temperature alkaline solution to remove grease, protein and organic fouling
3.Intermediate rinse: Flush away alkaline residues
4.Acid circulation wash (optional): Remove limescale & inorganic deposits
5.Final purified water rinse: Stop cleaning when conductivity reaches set value
6.Drainage
Mobile & Multi-station Shared
Senbofluid
Built on stainless steel trolley with lockable universal wheels. One CIP trolley serves multiple tanks, pipelines and filling machines in rotation. Avoid high investment on fixed CIP stations for each workstation. Save capital cost and floor space.
Clean-in-Place, No Equipment Disassembly
Senbofluid
Process equipment stays assembled during cleaning. Reduce labor cost and seal wear. Prevent secondary contamination introduced by repeated dismantling.
Sanitary Stainless Steel Construction
Senbofluid
Product contact parts in SUS304 or optional SUS316L. Mirror polished interior, no dead corners. Sanitary tri-clamp connections for easy sampling and validation. Meets requirements for food, cosmetic, plant extraction and pharmaceutical industries.
2 Control Versions Available
Senbofluid
Semi-auto version: Manual operation with temperature control, cost-effective for small factories.
Full-auto PLC+HMI version: Store multiple cleaning recipes. Auto temperature & timing control. Online conductivity monitoring for detergent concentration. Automatic data logging for GMP audit, reports exportable.
Complete Cleaning Sequence & Customizable Loop
Senbofluid
Support hot water rinse, alkaline wash, acid wash and purified water final rinse. Heating method: electric heating (standard) or steam heating (optional). Cleaning solution recyclable to cut water and chemical consumption.
Compact Layout & Easy Installation
Senbofluid
Small footprint, no dedicated CIP room required. Fast commissioning, tri-clamp piping for easy maintenance and inspection.
Multi-safety Protection
Senbofluid
Liquid level protection, over-temperature protection, pump dry-run protection. Electric cabinet with moisture-proof design for humid sanitary workshops.
| Item | Specification |
|---|---|
| Material | Frame: SUS304; Product contact: SUS304 / SUS316L optional |
| Tank configuration | Single tank / Dual tank (cleaning tank + recovery tank), volume: 50L /100L /150L /200L optional |
| Sanitary pump | Sanitary centrifugal pump, customized flow, head: 20–30 m |
| Heating type | Electric heating (standard) / steam heating (optional) |
| Max working temp | 85~90℃ adjustable, temp accuracy ±1~2℃ |
| Control system | Basic: Buttons & indicators; Premium: PLC + HMI, recipe storage, conductivity monitoring, data logging |
| Connection | Sanitary tri-clamp |
| Mobility | Stainless steel trolley, lockable casters |
| Power supply | 380V 3-phase (customizable) |
| Optional extras | Online conductivity sensor, data storage & printing, SIP port, automatic chemical dosing module |

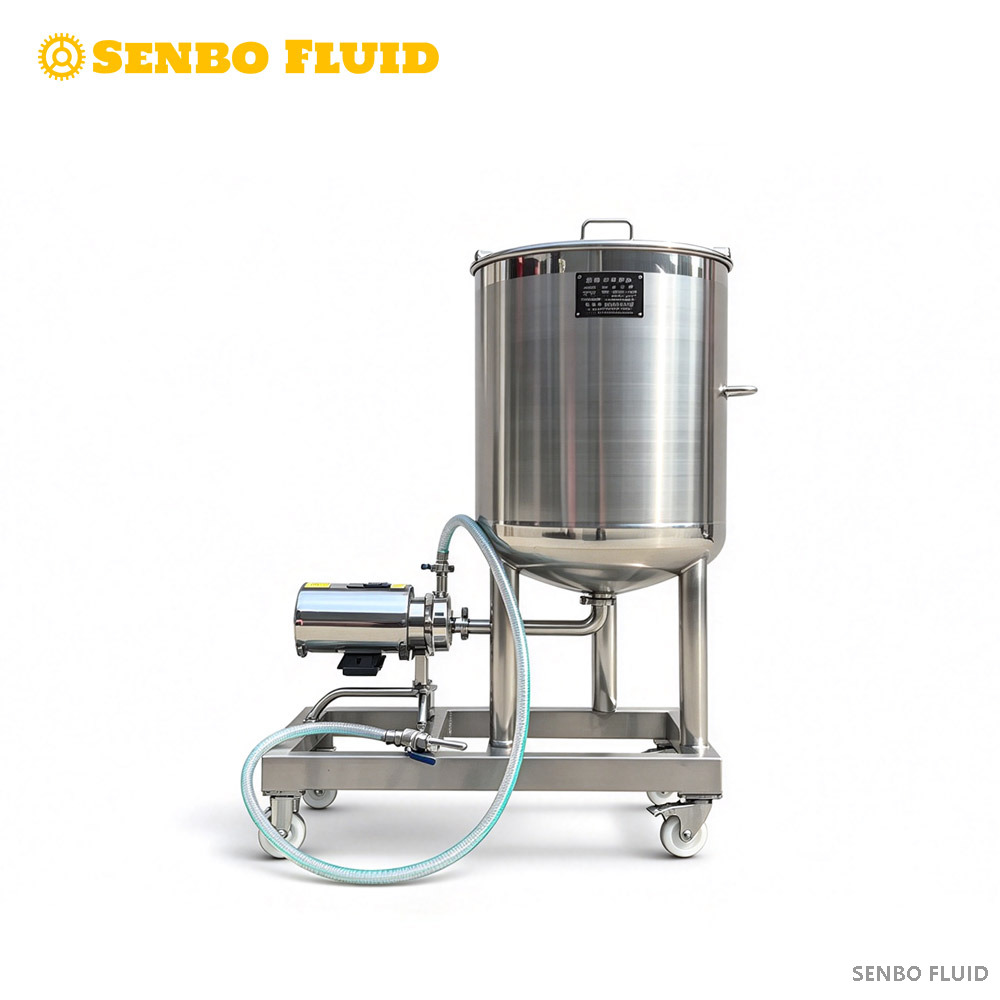

Single tank CIP
Low budget, one-time cleaning, no liquid recovery, for simple cleaning tasks

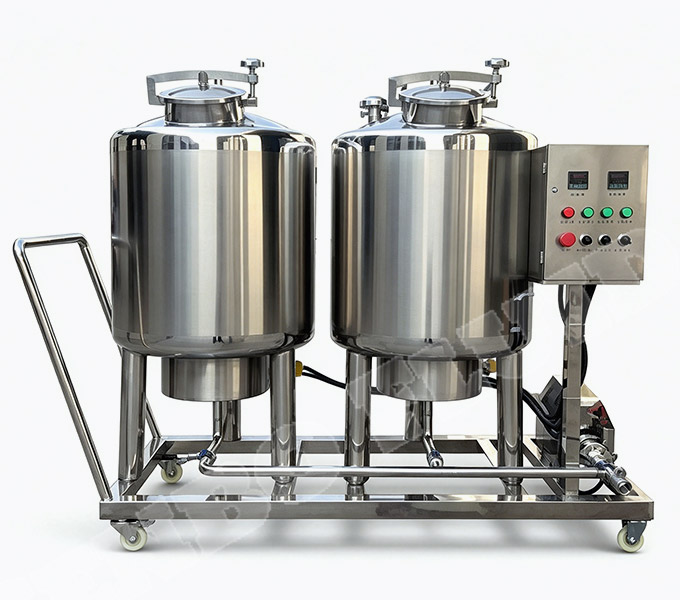

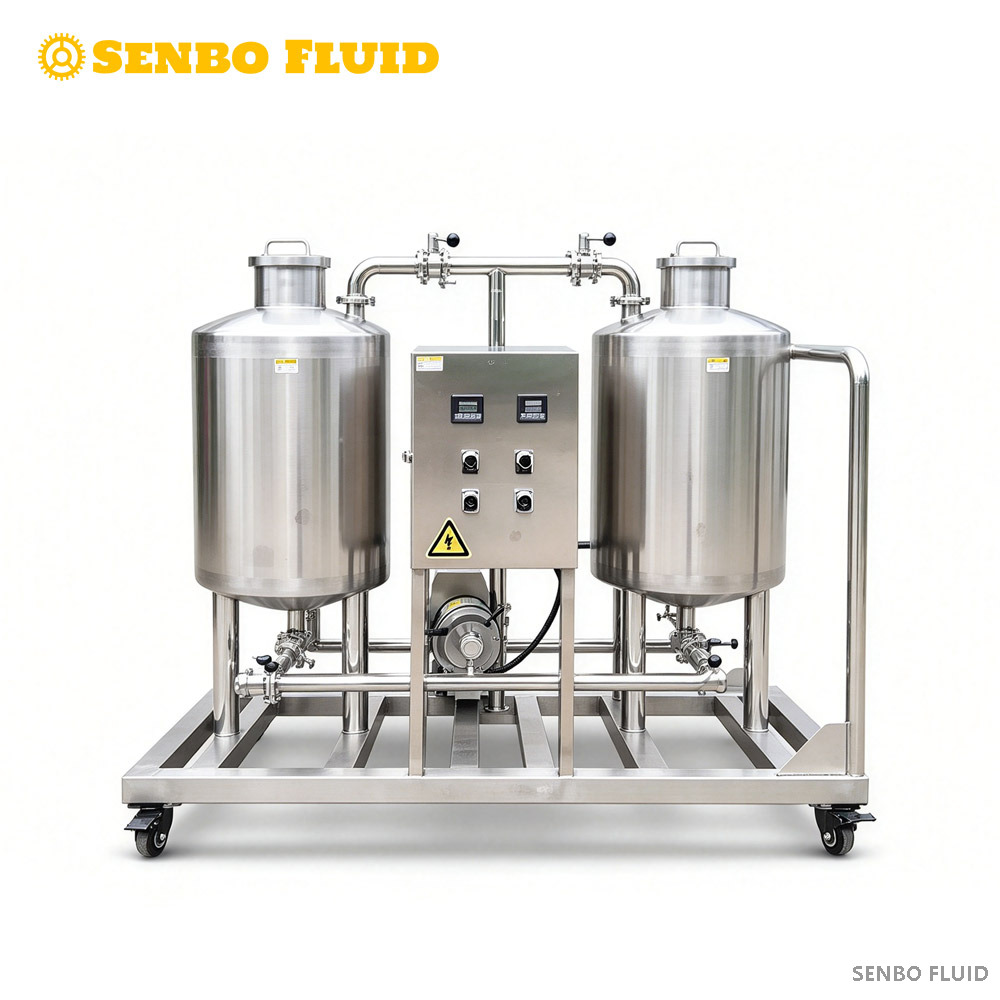

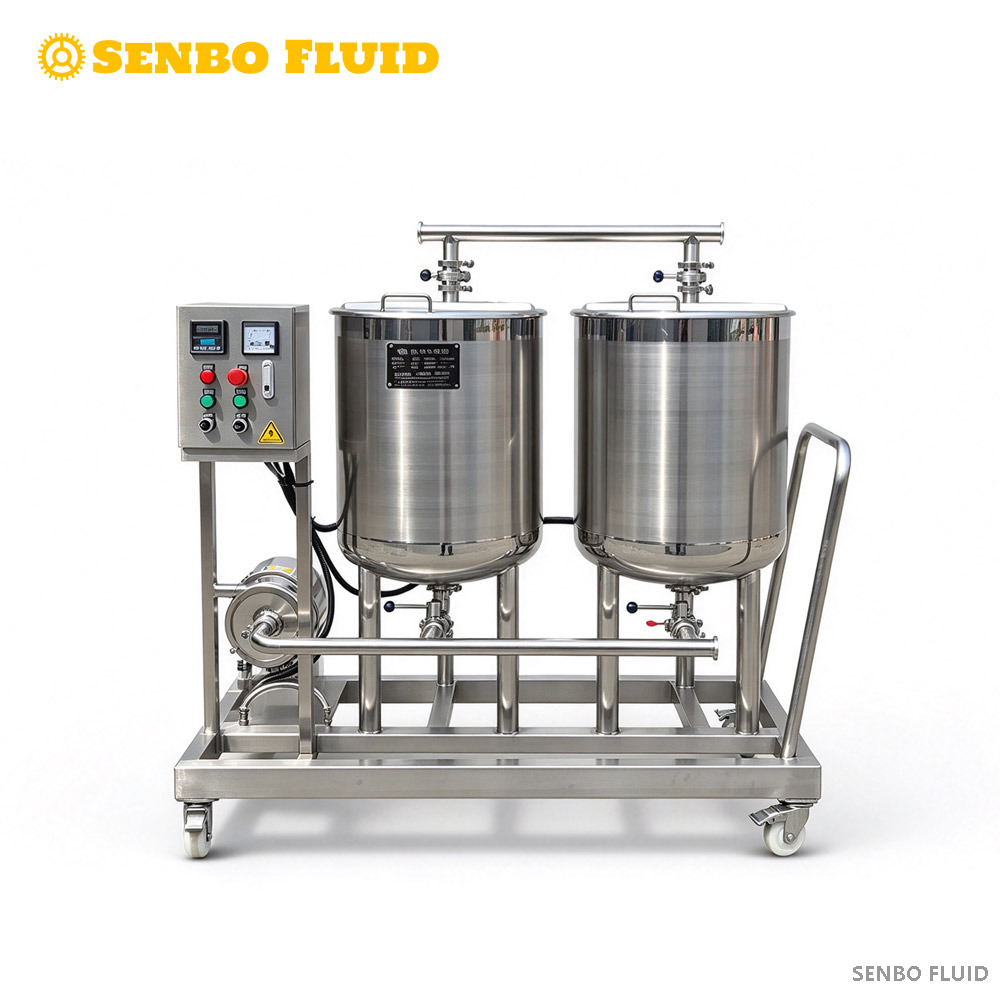

Dual tank CIP (cleaning + recovery tank)
Recycle cleaning liquid, save water & chemical. Recommended for GMP, food and botanical extraction customers
Manual version
Simple process, limited budget. PLC automatic version: For GMP audit, multi-recipes and data traceability requirement
Experienced in the supply of industrial CIP cleaning equipment.
Familiar Pharmaceutical, food, and chemical industries processing projects
Strong customization and project coordination ability
Professional communication and fast response
Explosion-proof design
PLC automatic control system

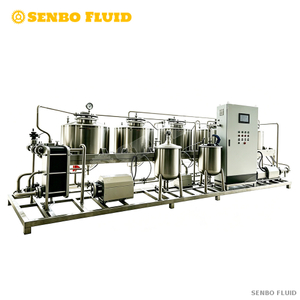

CIP cleaning system
Vacuum or pressure vessel design
(steam, purified water, circulating water, chilled water, compressed air, nitrogen, vacuum, heating, etc.)
We can supply individual equipment or a complete turnkey extraction solution.
We provide complete technical support for extraction projects, including:
Process consultation and equipment selection
Process flow design and layout support
Equipment manufacturing and factory testing
Installation and commissioning guidance
Operator training and after-sales service
Export standard wooden case or steel frame
Suitable for sea and land transportation
Delivery terms: EXW / FOB / CIF
Process flow suggestion
Technical proposal
Budget estimation
Turnkey project solution
