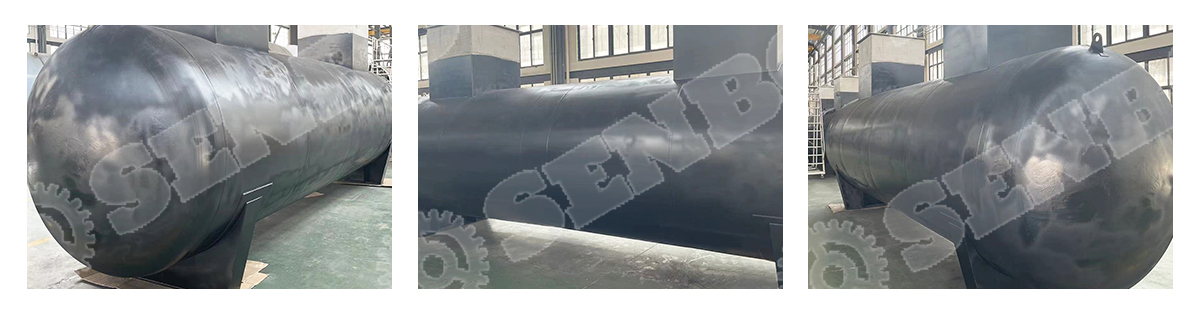

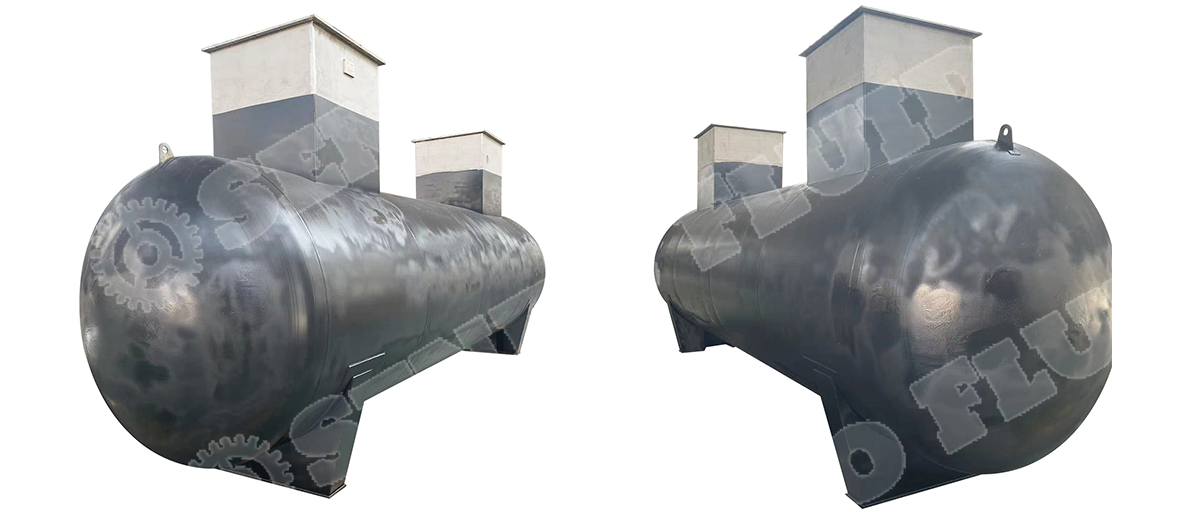

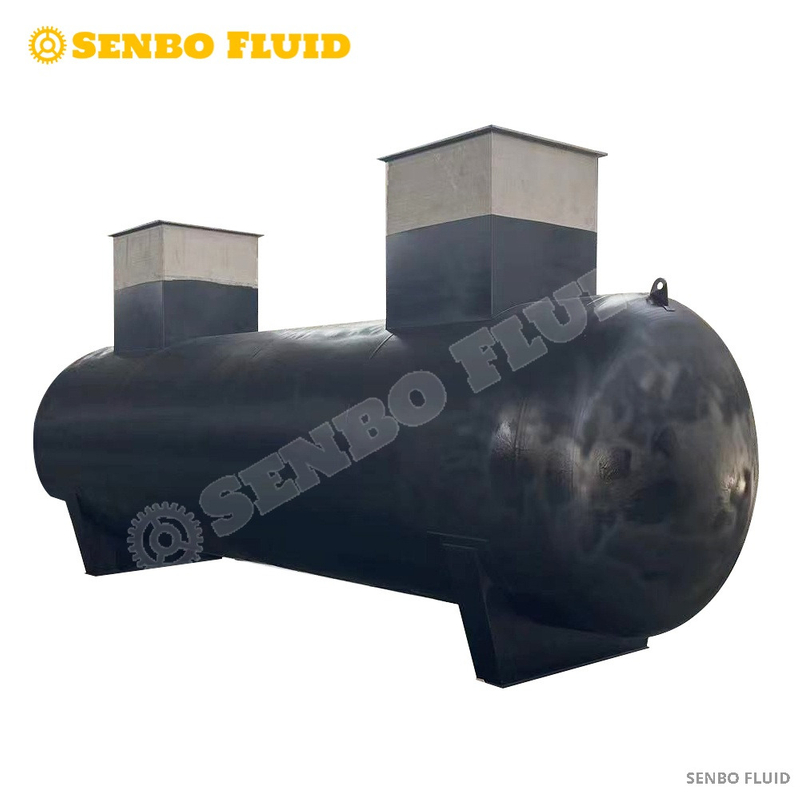

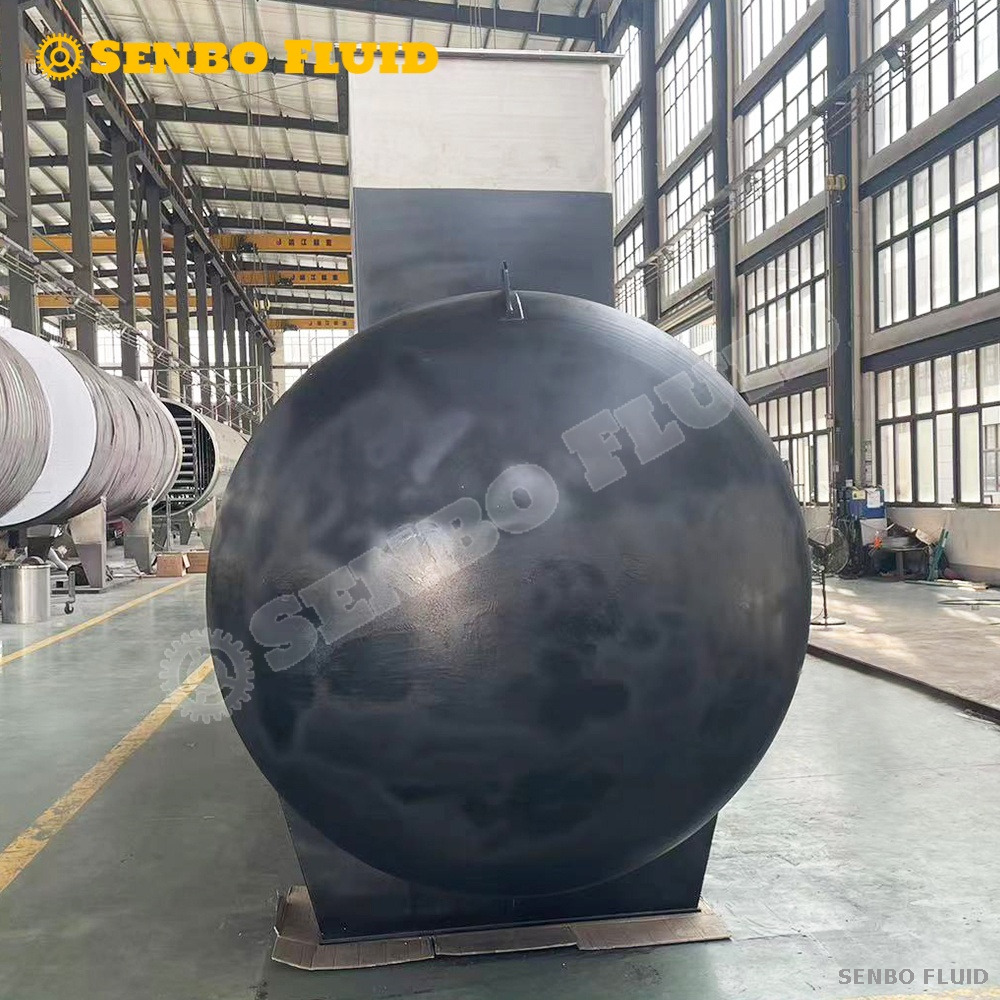

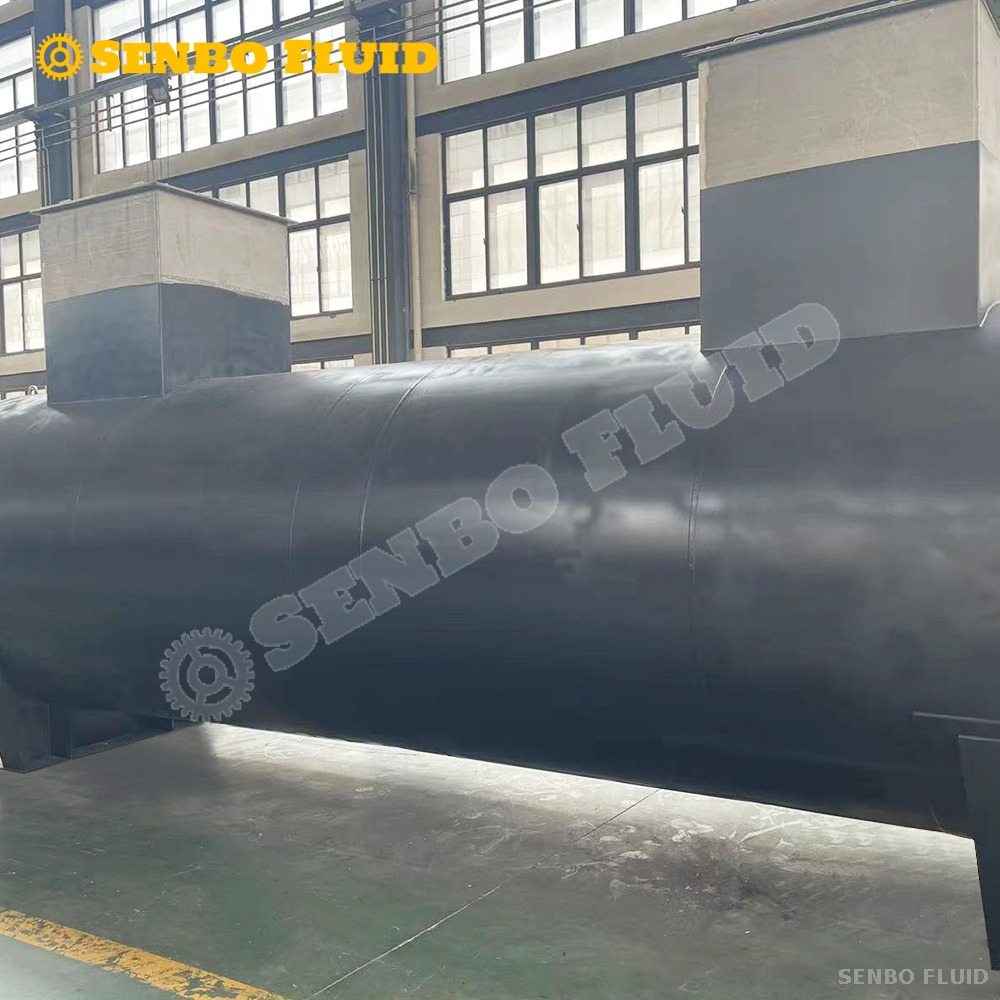

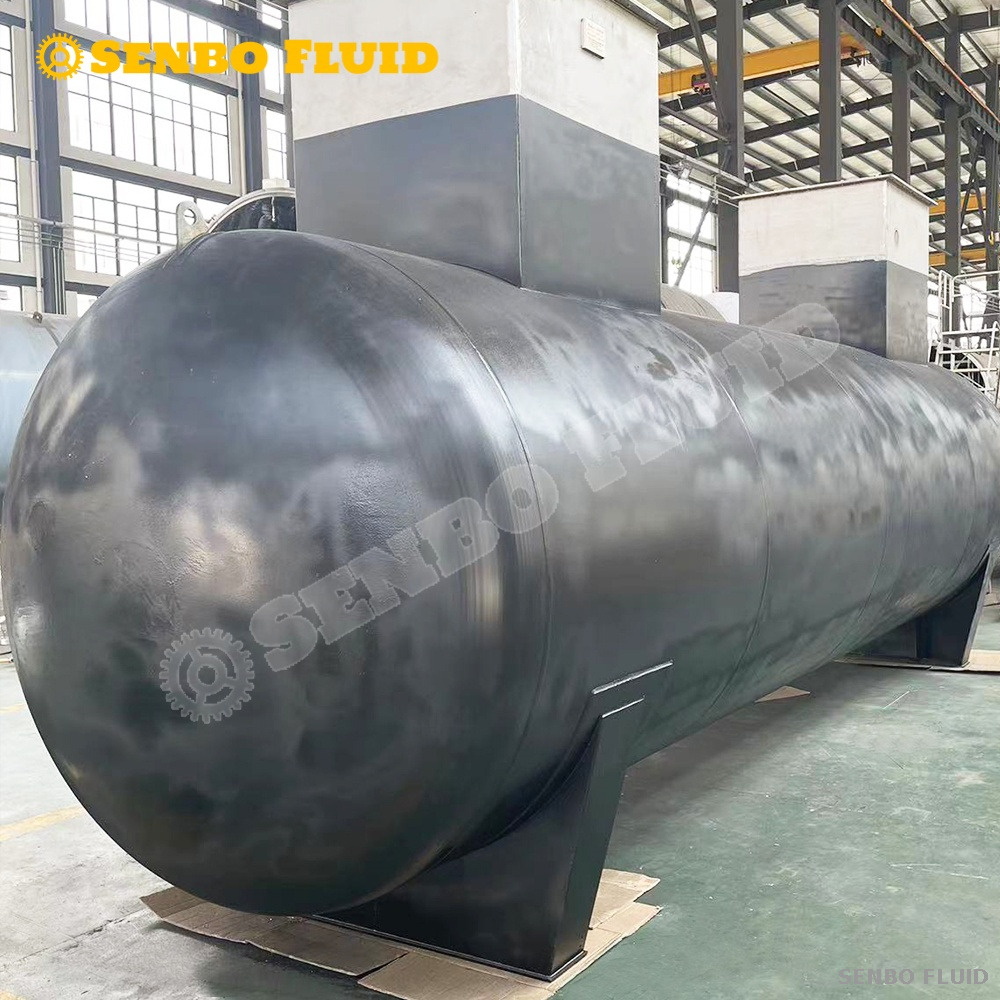

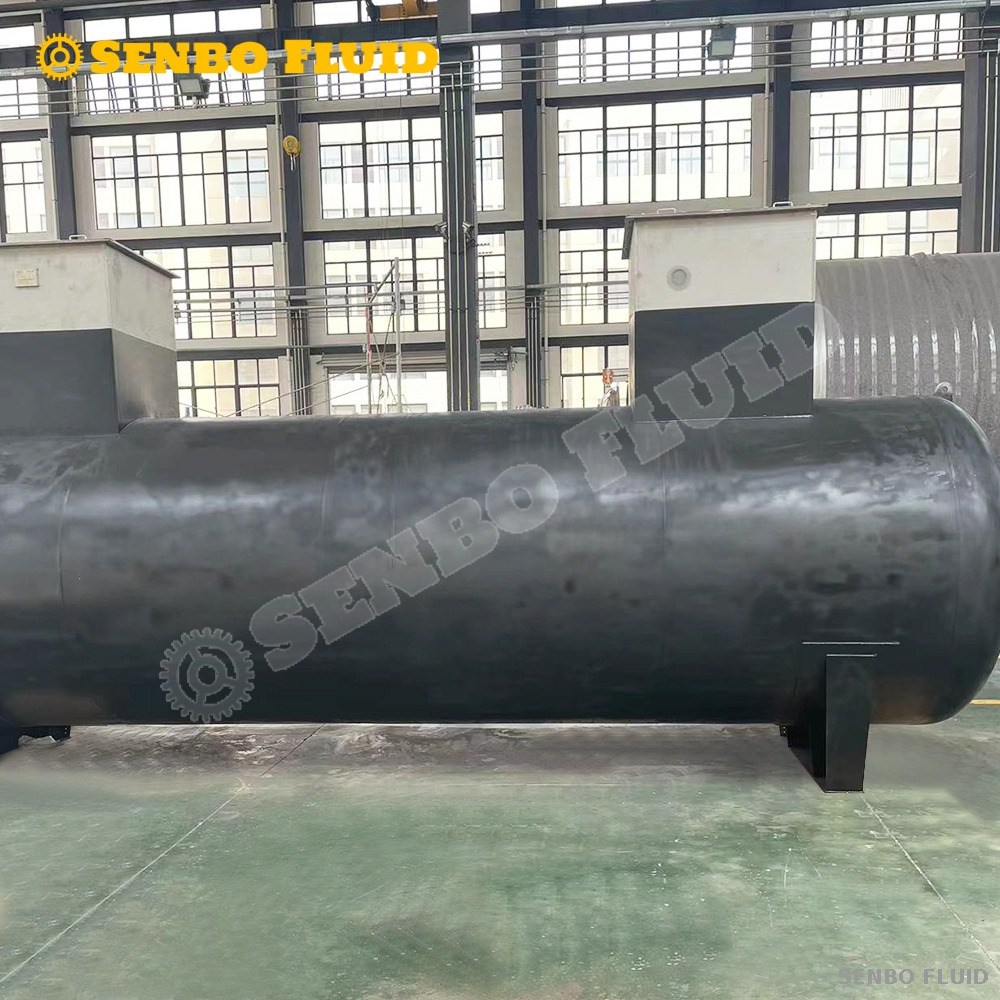

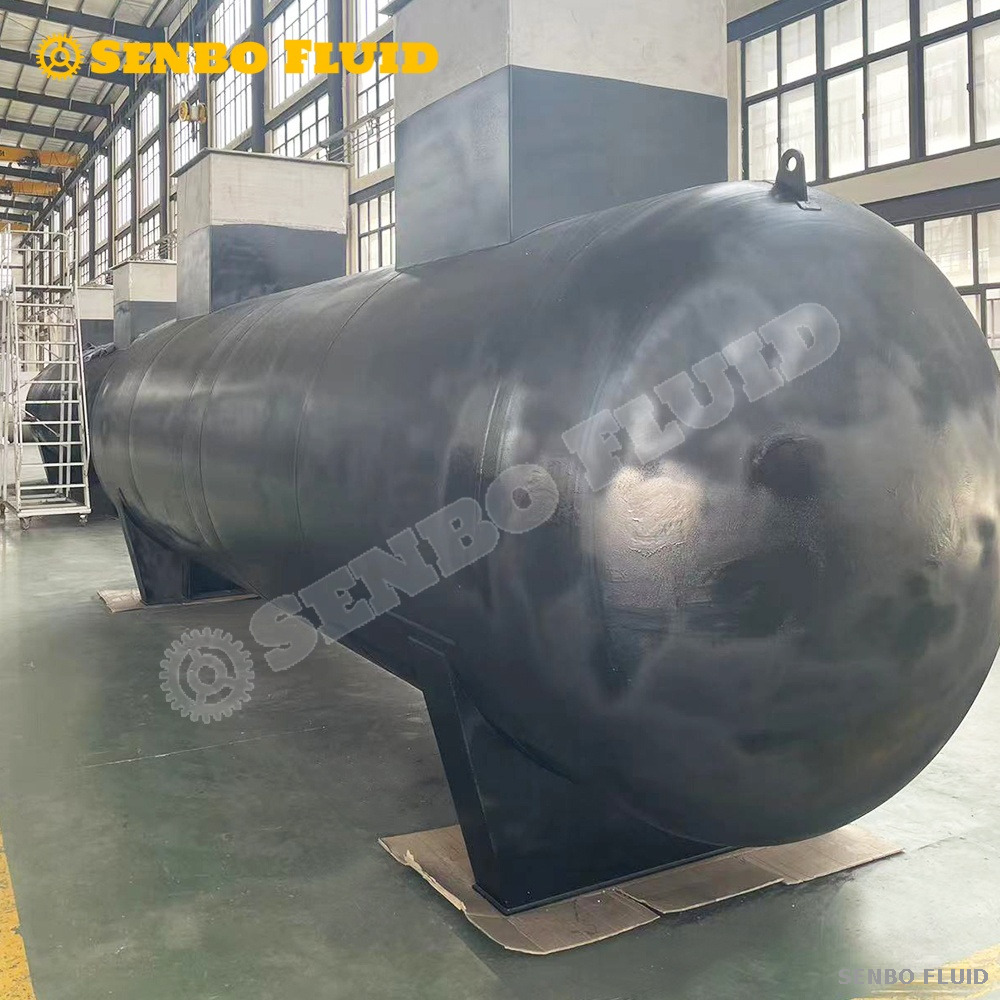

Stainless steel underground alcohol storage tank
The stainless steel underground alcohol storage tank is a professional liquid storage device that integrates hygiene, safety, and durability. Senbofluid It is particularly suitable for high-standard industries such as pharmaceuticals and food, which have stringent requirements for purity, safety, and space utilization. It supports comprehensive customization services to meet diverse industrial needs.
Primary Material
01
Typically 304 (06Cr19Ni10) or 316L (022Cr17Ni12Mo2) stainless steel is used.
304 Stainless Steel: A versatile grade offering excellent corrosion resistance and workability, suitable for storing most alcohols and general chemicals.
316L Stainless Steel: Contains molybdenum for superior corrosion resistance, especially ideal for storing pharmaceutical or food-grade alcohol containing chlorides, acids, or requiring extreme purity. It effectively resists pitting and crevice corrosion.
Manufacturing Process
02
Surface Finish: Mirror polishing (Ra ≤ 0.4μm) is applied to both internal and external surfaces, achieving high smoothness that prevents material adherence and facilitates easy cleaning, complying with sanitary standards like GMP and FDA.
Welding Process: Precision welding techniques such as argon arc welding are employed. All internal welds feature smooth transitions (radius corners) to ensure no sanitary dead ends, allowing effective CIP/SIP cleaning.
Structural Design: The tank structure is reinforced to withstand soil pressure and external loads specific to the underground installation environment.
Exceptional Sanitation
Superior Corrosion Resistance
High Strength & Pressure Capacity
Underground Installation
Fully Sealed System
Regulatory Compliance
Pharmaceutical Industry
Senbofluid
Storage of process solvents like ethanol and isopropanol within clean areas.
Chemical and Biofuel Industry
Senbofluid
Safe storage of high-purity chemical solvents and intermediates.Underground storage of fuel ethanol.
Food & Beverage Industry
Senbofluid
Storage of raw or intermediate products like edible alcohol, flavored spirits, and fermentation broth.
| Dimensions & Capacity | Designed according to client site and volume requirements. |
|---|---|
| Connections & Openings | The position, quantity, and specification of all process ports (inlet/outlet, CIP, SIP, instrumentation, sampling, breather, etc.) can be customized. |
| Control System Integration | Can be connected to the client's DCS/SCADA system for remote monitoring and automated management. |
| Installation & After-Sales Service | Professional installation guidance, pressure testing, cleaning/disinfection, and ongoing maintenance support are available. |
Experienced in the supply of industrial tank equipment.
Familiar Pharmaceutical, food, and chemical industries processing projects
Strong customization and project coordination ability
Professional communication and fast response
Explosion-proof design
PLC automatic control system
CIP cleaning system
Vacuum or pressure vessel design
(steam, purified water, circulating water, chilled water, compressed air, nitrogen, vacuum, heating, etc.)
We can supply individual equipment or a complete turnkey extraction solution.
We provide complete technical support for extraction projects, including:
Process consultation and equipment selection
Process flow design and layout support
Equipment manufacturing and factory testing
Installation and commissioning guidance
Operator training and after-sales service
Export standard wooden case or steel frame
Suitable for sea and land transportation
Delivery terms: EXW / FOB / CIF
Process flow suggestion
Technical proposal
Budget estimation
Turnkey project solution
