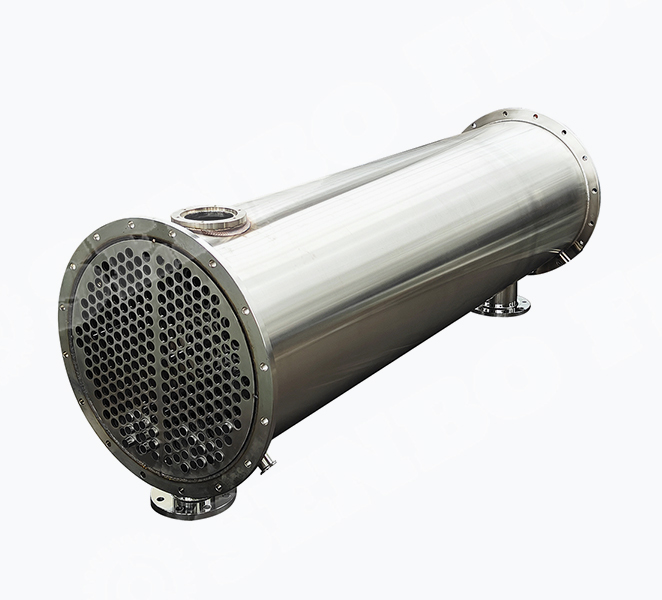

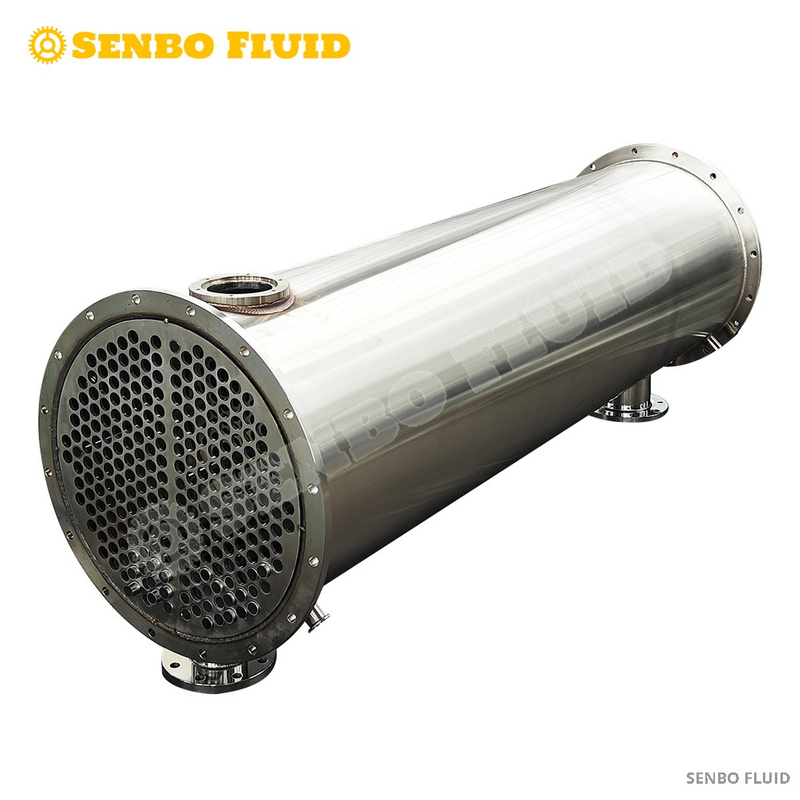

Custom Stainless Steel ASME heat exchanger
The tube core and shell of this type heat exchanger are made of good-quality 304 stainless steel. has a good water circulation effect through the use of precision closed holes and internal guide device technologyUsing 304L stainless steel tube, senbofluid no Seam welding,small holes are evenly distributed and plastic spiral baffles greatly improve heat exchange effect and water flow rate,and effectively avoid the problem of rapid scaling and make the equipment safe and efficient for long-term operation.
Heat transfer principle: heat and cold for heat transfer of two kinds of fluid, one in the pipe flow, known as pipe fluid;The other flow outside the tube is called shell - side fluid.In order to improve the heat transfer coefficient of the fluid outside the tube, several baffles are usually installed in the shell.The baffle can increase the fluid velocity of the shell side, senbofluid force the fluid to cross the tube bundle several times according to the prescribed route, and enhance the degree of fluid turbulence.The heat exchange pipes can be arranged in equilateral triangle or square on the tube plate.The equilateral triangle has compact arrangement, high turbulence and high heat transfer coefficient.The square arrangement makes it convenient to clean the outside of the tube and is suitable for the fluid that is easy to scale.
Fast heat exchange
Compact structure and small footprint
Flexible design+complete specifications
Strong practical pertinence
Energy saving
Light weight
Wide range of application conditions
Wide range of applications
Easy to install
Easy to clean,long cleaning cycle
Easy to operate
Removable
Anti-corrosion
| Profile type | Tuber exchanger |
|---|---|
| Material | SS304 or SS316L |
| Capacity | 0.1 T/H-100 T/H (Customized) |
| Working pressure | 0.8 Mpa(Customized) |
| Heating Area/Cooling Area | 0.1~20 ㎡ |
| The Diameter of Pipe | Φ6/Φ9/Φ12/Φ16/Φ19/Φ25mm |
| Inlet Outlet | Φ19~ Φ219mm |
Experienced in the supply of industrial tank equipment.
Familiar Pharmaceutical, food, and chemical industries processing projects
Strong customization and project coordination ability
Professional communication and fast response
Explosion-proof design
PLC automatic control system
CIP cleaning system
Vacuum or pressure vessel design
(steam, purified water, circulating water, chilled water, compressed air, nitrogen, vacuum, heating, etc.)
We can supply individual equipment or a complete turnkey extraction solution.
We provide complete technical support for extraction projects, including:
Process consultation and equipment selection
Process flow design and layout support
Equipment manufacturing and factory testing
Installation and commissioning guidance
Operator training and after-sales service
Export standard wooden case or steel frame
Suitable for sea and land transportation
Delivery terms: EXW / FOB / CIF
Process flow suggestion
Technical proposal
Budget estimation
Turnkey project solution
